Order 629C-09-CH-P2-E5-S1-LCD by Dwyer 629C Transmitter - US Mega Store

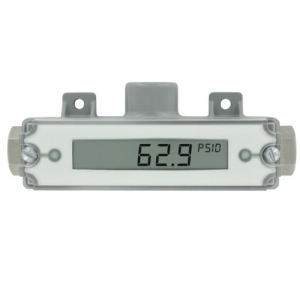

Dwyer . 629C-09-CH-P2-E5-S1-LCD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute21Compatible gases and liquids.
Attribute01, Attribute22316, 316L SS
Attribute02, Attribute23±0.5% FS (includes linearity, hysteresis & repeatability)
Attribute03, Attribute24±1% FS/year
Attribute04, Attribute250 to 200 F
Attribute05, Attribute260 to 175 F
Attribute06, Attribute270 to 500 psid
Attribute07, Attribute28Avg 0.04%/ F (includes zero and span)
Attribute08, Attribute293-wire: 13 to 35 VDC or isolated 16 to 33 VAC (reverse polarity protected)
Attribute09, Attribute303-wire: Field selectable 0 to 5, 1 to 5, 0 to 50, or 2 to 10 VDC
Attribute10, Attribute31Push buttons inside conduit enclosure
Attribute11, Attribute32400 msec
Attribute12, Attribute33Current output: 0 to 1250 Ω (max), Rmax = 50(Vps-10); Voltage output: Minimum load resistance = 5 kΩ.
Attribute13, Attribute3428 mA max.
Attribute14, Attribute351/2" female NPT conduit
Attribute15, Attribute361/4" female NPT
Attribute16, Attribute374-1/2 digit LCD field attachable display
Attribute17, Attribute38Designed to meet NEMA 4X (IP66)
Attribute18, Attribute39Not position sensitive
Attribute19, Attribute4010.1 oz (286 g)
Attribute20, Attribute41CE
AttributeKey00, AttributeKey21Service
AttributeKey01, AttributeKey22Wetted Materials
AttributeKey02, AttributeKey23Accuracy
AttributeKey03, AttributeKey24Stability
AttributeKey04, AttributeKey25Temperature Limits
AttributeKey05, AttributeKey26Compensated Temperature Limits
AttributeKey06, AttributeKey27Pressure Limits
AttributeKey07, AttributeKey28Thermal Effect
AttributeKey08, AttributeKey29Power Requirements
AttributeKey09, AttributeKey30Output Signal
AttributeKey10, AttributeKey31Zero and Span Adjustments
AttributeKey11, AttributeKey32Response Time
AttributeKey12, AttributeKey33Loop Resistance
AttributeKey13, AttributeKey34Current Consumption
AttributeKey14, AttributeKey35Electrical Connections
AttributeKey15, AttributeKey36Process Connections
AttributeKey16, AttributeKey37Display
AttributeKey17, AttributeKey38Enclosure Rating
AttributeKey18, AttributeKey39Mounting Orientation
AttributeKey19, AttributeKey40, Weight_AttribWeight
AttributeKey20, AttributeKey41Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Dwyer 629C-09-CH-P2-E5-S1-LCD
ConditionNEW
Extra Product NameOrder 629C-09-CH-P2-E5-S1-LCD by Dwyer 629C Transmitter - US Mega Store
Weight10.1
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKU629C-09-CH-P2-E5-S1-LCD
qtyInStockContact Us
snippet<p><strong>Dwyer, 629C-09-CH-P2-E5-S1-LCD, 629C Pressure Transmitter 0-500 psid with LCD </strong> </p> <p>Wet/Wet Differential Pressure Transmitter (Housing - Conduit housing, NEMA 4X (IP66); Process Connection - 1/4" female NPT; Electrical Connection - 1/2" female NPT conduit; Signal Output - 4 to 20 mA) </p> <p>The <strong> Series 629C </strong> Wet/Wet Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes - 4 to 20 mA. Small internal volume and minimal moving parts result in exceptional response and reliability. The terminal block, as well as a zero adjustment button, are easily accessed under the top cover. The 629C family has a robust NEMA 4X (IP66) construction. </p> <p><strong>Features </strong> </p> <ul><li>Powered by either DC or AC - take advantage of most readily available power source reducing installation costs </li> <li>Push button zero (versus trim pot) - more simple zeroing provides easy install and calibration reducing installation time and possibility of operator error </li> </ul> <p><strong>Applications </strong> </p> <ul><li>Flow elements </li> <li>Heat exchangers </li> <li>Filters </li> <li>Coils </li> <li>Chiller </li> <li>Pumps </li> </ul> <p><strong>Approvals </strong> </p> <ul><li>CE Approval </li> <li>RoHS Letter of Compliance </li> </ul>
tierPrice1529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com629C-09-CH-P2-E5-S1-LCD1Contact Us11 @ $529.00
heavydutydepot.com629C-09-CH-P2-E5-S1-LCD111 @ $529.00
Megadepot629C-09-CH-P2-E5-S1-LCD11
Kele629C-09-CH-P2-E5-S1-LCD111 @ $704.08
