Service Caster

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, StudioService Caster
Attribute0010
Attribute013
Attribute025-1/4" x 7-1/4"
Attribute03, Model, ModelNumber, Model_numberSeries #92
Attribute042 Side lock brakes & 4 Bolt on swivel lock
Attribute053-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Attribute06(2) Swivel casters w/side lock brakes and bolt on swivel locks & (2) swivel casters w/bolt on swivel locks
Attribute072 side lock brakes & 4 bolt on swivel locks
Attribute0890D
Attribute092900
Attribute10Bright Zinc Plated Finish
Attribute11, Material, MaterialTypeHigh Temperature Phenolic
Attribute1212-1/2"
Attribute13Top Plate
Attribute14475 degrees F to 525 degrees F
Attribute15, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03Series
AttributeKey04Features
AttributeKey05Plate Caster Bolt Hole Pattern
AttributeKey06Type
AttributeKey07Caster Swivel Lock Type
AttributeKey08Durometer
AttributeKey09Capacity (Lb.)
AttributeKey10Finish
AttributeKey11Material
AttributeKey12, height_AttribMounting Height
AttributeKey13Caster Mounting Type
AttributeKey14Caster Temp. Range
AttributeKey15Country of Origin (subject to change)
DimensionUnitinch
WeightUnitlbs
diameter, length, Decimal_value10.0
extendedLead26
extendedQty-2
height12.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPN, PartNumber, Part_numberSCC-KP92S1030-PHRHT-SLB-BSL-2-BSL-2
qtyInStock0
tierPrice13059.7
urlhttps://www.zoro.com/service-caster-10-inch-heavy-duty-high-temp-phenolic-caster-swivel-locks-2-brakes-scc-4pk-scc-kp92s1030-phrht-slb-bsl-2-bsl-2/i/G105436541/
width3.0
ASINB07M8YHPZ7 B089LHKHY2
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB07M8YHPZ7
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. The Kingpinless Series 92 high temp phenolic casters come in these wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height). Resistant to water, oil, grease and impact damage, protecting floors, and non-metallic, providing spark proof protection. Ideal in high temps associated with baking, performing at 475°F continuous usage to 525°F intermittent usage. Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on. Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.
ClassificationId383663011 511228
Color4 Swivel w/2 Brakes & 4 Swivel Locks
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0670533888217 670533888217
FetchTime1697679626 1704416455
Height1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameExtra Heavy Duty Kingpinless 10” x 3” High Temp Phenolic Caster Set of 4-2 Swivel with Brakes and Bolt on Swivel Locks/2 Swivel w/Bolt on Swivel Locks - 11,600 lbs. Total Capacity - Service Caster
Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity4
Item_type_keywordplate-casters
KeywordSCC-KP92S1030-PHRHT-SLB-4
Linkhttps://m.media-amazon.com/images/I/4152iWL0YdL._SL75_.jpg https://m.media-amazon.com/images/I/4152iWL0YdL.jpg https://m.media-amazon.com/images/I/41UlqdVkrFL._SL75_.jpg https://m.media-amazon.com/images/I/41UlqdVkrFL.jpg https://m.media-amazon.com/images/I/51+PTsMaU3L._SL75_.jpg https://m.media-amazon.com/images/I/51+PTsMaU3L.jpg https://m.media-amazon.com/images/I/51BLY5g4GnL._SL75_.jpg https://m.media-amazon.com/images/I/51BLY5g4GnL.jpg https://m.media-amazon.com/images/I/51rzfSMFgNL.jpg https://m.media-amazon.com/images/I/51y5bs8TDML._SL75_.jpg https://m.media-amazon.com/images/I/51y5bs8TDML.jpg https://m.media-amazon.com/images/I/51yM6Tli3XL._SL75_.jpg https://m.media-amazon.com/images/I/51yM6Tli3XL.jpg https://m.media-amazon.com/images/I/61DduPQaypL.jpg https://m.media-amazon.com/images/I/61nRGahZ5HL.jpg https://m.media-amazon.com/images/I/71632ERKbwL.jpg https://m.media-amazon.com/images/I/71Uqp37kK9L.jpg https://m.media-amazon.com/images/I/71b+4uV0JhL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Marketplace_idATVPDKIKX0DER
Mounting_typePlate Mount
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB089LHKHY2
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroupBISS Basic
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #92 casters with 10" diameter, 3" wide brown high temperature phenolic wheels. Set includes four (4) swivel casters, two (2) fitted with side locking brakes and bolt on swivel locks, two (2) fitted with bolt on swivel locks. Supports 11600 total pounds (lbs) at 2900 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for autoclaves, bakery ovens and powder coating facilities. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2018-12-20T17:57:58.282Z
Rank1302632 199152 2161 426290 518726 6119
Size10" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TitleExtra Heavy Duty Kingpinless 10” x 3” High Temp Phenolic Caster Set of 4-2 Swivel with Brakes and Bolt on Swivel Locks/2 Swivel w/Bolt on Swivel Locks - 11,600 lbs. Total Capacity - Service Caster Hardware Industrial & Scientific Plate Casters
TypeSwivel VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41UlqdVkrFL._SL75_.jpg
Unitinches
Unit_count4.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupautomotive_display_on_website biss_display_on_website
WebsiteDisplayGroupNameAutomotive Parts and Accessories
Width1000 2.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG105436541111 @ $3059.70

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

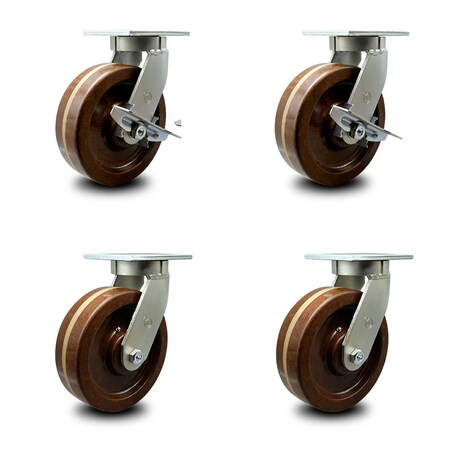

Extra Heavy Duty Kingpinless 10” x 3” High Temp Phenolic Caster Set of 4-2 Swivel with Brakes and Bolt on Swivel Locks/2 Swivel w/Bolt on Swivel Locks - 11,600 lbs. Total Capacity - Service Caster
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #92 casters with 10" diameter, 3" wide brown high temperature phenolic wheels. Set includes four (4) swivel casters, two (2) fitted with side locking brakes and bolt on swivel locks, two (2) fitted with bolt on swivel locks. Supports 11600 total pounds (lbs) at 2900 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for autoclaves, bakery ovens and powder coating facilities. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features ½” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • The Kingpinless Series 92 high temp phenolic casters come in these wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height). Resistant to water, oil, grease and impact damage, protecting floors, and non-metallic, providing spark proof protection. Ideal in high temps associated with baking, performing at 475°F continuous usage to 525°F intermittent usage.
  • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.
  • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries #92
Part numberSCC-KP92S1030-PHRHT-SLB-BSL-2-BSL-2
Items per pack4
LabelService Caster
ManufacturerService Caster
