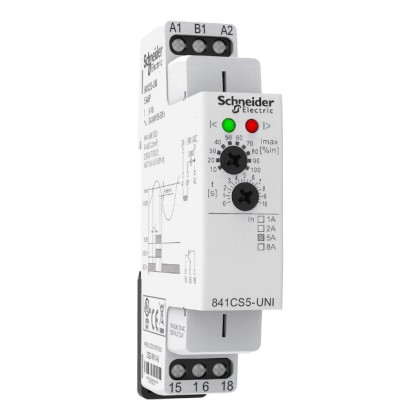

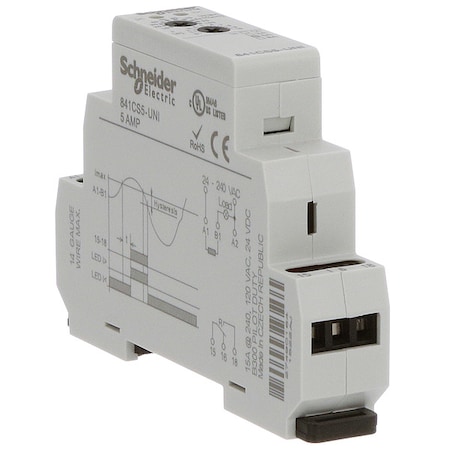

Schneider Electric/legacy Relay Relay, Current Sensing, Spdt, 5A - 841CS5-UNI

Product Overview The 841 series Current Sensing Relay is a complete current sensing solution which mounts directly to a DIN rail. It allows the user to monitor the current of one circuit (1 to 8A) and switch another circuit in case of an over current or under current condition. The built-in time-delay feature allows the user to accurately switch the output anytime between 0 to 10 seconds after the pre-set current monitoring condition is violated. Also, the 841 has the capability to extend the sensing range up to 600A through the use of current transformers. The green LED is on when power is applied to the input terminals. The red LED blinks during time-out and is ON when the output is generized. The wide input voltage range of 24 to 240VAC enables the device to work with all popular AC voltages. The variable trip point allows the user to accurately sense over/under loads One stop solution for power management system Two LED status indicators, indicate status at a glance Colour and appearance designed for high visibility in all environments Only 17.5mm wide making it ideal for tight spaces Applications Industrial, Sensing & Instrumentation WARNING: Cancer and Reproductive Harm - . This listing is for Each. Contact Voltage VAC: 240 Relay Terminals: - hazardous: false Current Monitoring Range Max: 5 Product Range: 841 Series usEccn: EAR99 Relay Mounting: DIN Rail Contact Configuration: SPDT Supply Voltage Max: 240 Contact Voltage VDC: 24 Contact Current: 15 Power Consumption: 1.5 Current Monitoring Range Min: 500 SVHC: To Be Advised

To help in detecting locked rotors, current loss, open heaters, or lamp loads, use this universal AC current sensor. It features switch-selectable overcurrent or undercurrent sensing.<br /><br /> Item - Relay: Current Sensing Relay<br /> Input or Control Voltage: 24 to 240VAC<br /> AC Contact Rating - Relay: 15A @ 240V<br /> DC Contact Rating - Relay: 15A @ 24V<br /> Mounting - Relay: DIN Rail<br /> Contact Form - Relay: SPDT<br /> Sensing Amp Range: 0.50 to 5.00A<br /> Trip Point: Adjustable 0.50 to 5.00A<br /> Trip Delay: 0.10 to 10 sec.<br /> Core Type - Relay: Internal<br /> Type of Output: Relay<br /> Status Indicator: Led<br /> Electrical Connection: Terminal Strip<br /> Body Height - Relay: 2.60"<br /> Body Width - Relay: 3.50"<br /> Body Depth - Relay: 0.70"<br /> Overall Height - Relay: 2.60"<br /> Sensor Opening: Internal<br /> Max. Inrush Current: 6.3A<br />
