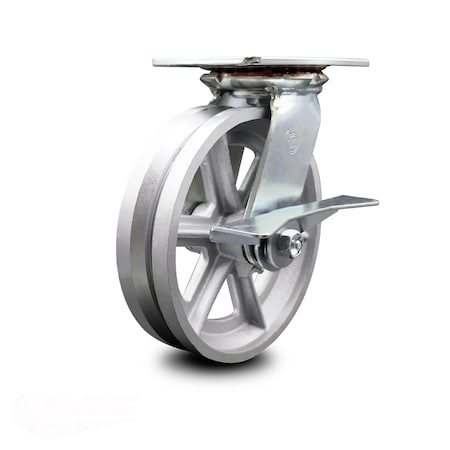

8 Inch Heavy Duty V Groove Semi Steel Caster with Roller Bearing and Brake SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute008
Attribute012
Attribute02Swivel caster w/side lock brake
Attribute03Top Lock Brake
Attribute04, Model, ModelNumber, Model_numberSeries#35
Attribute05-45 degrees F to 180 degrees F
Attribute06Cast Iron V-Groove
Attribute079-1/2"
Attribute08Top Plate
Attribute091250
Attribute104-1/2" x 6-1/4"
Attribute112-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attribute12Bright Zinc Plated Finish
Attribute13, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Type
AttributeKey03Caster Swivel Lock Type
AttributeKey04Series
AttributeKey05Caster Temp. Range
AttributeKey06Material
AttributeKey07, height_AttribMounting Height
AttributeKey08Caster Mounting Type
AttributeKey09Capacity (Lb.)
AttributeKey10Plate Size
AttributeKey11Plate Caster Bolt Hole Pattern
AttributeKey12Finish
AttributeKey13Country of Origin (subject to change)
DimensionUnitinch
Extra Product Name8 Inch Heavy Duty V Groove Semi Steel Caster with Roller Bearing and Brake SCC
WeightUnitlbs
diameter, length8.0
extendedLead26
extendedQty-2
height9.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, PartNumber, Part_numberSCC-35S820-VGR-SLB
qtyInStock0
tierPrice1132.57
urlhttps://www.zoro.com/service-caster-8-inch-heavy-duty-v-groove-semi-steel-caster-with-roller-bearing-and-brake-scc-scc-35s820-vgr-slb/i/G705436835/
width2.0
ASINB08WGC4G5K B08XN41N3J
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08WGC4G5K
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #35 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. Weight capacity ranges from 800 lbs on the 4” caster, 1100 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
ClassificationId383663011 511228
ColorSwivel - Side Lock Brake - Silver
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586590403 011586590403
FetchTime1698770084 1704535322
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameHeavy Duty Large Top Plate V Groove Semi Steel Swivel Caster w/8" x 2" Silver Wheel & Side Lck Brake - 1250 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-35S820-VGR-SLB-BSL-2-R-2
Linkhttps://m.media-amazon.com/images/I/31JSmOyqnHL._SL75_.jpg https://m.media-amazon.com/images/I/31JSmOyqnHL.jpg https://m.media-amazon.com/images/I/41IeDxf4yML._SL75_.jpg https://m.media-amazon.com/images/I/41IeDxf4yML.jpg https://m.media-amazon.com/images/I/41Ti9yw9ASL._SL75_.jpg https://m.media-amazon.com/images/I/41Ti9yw9ASL.jpg https://m.media-amazon.com/images/I/51GdYBJhVeL.jpg https://m.media-amazon.com/images/I/51KMSyqTRaL._SL75_.jpg https://m.media-amazon.com/images/I/51KMSyqTRaL.jpg https://m.media-amazon.com/images/I/51fhDQ3mvEL.jpg https://m.media-amazon.com/images/I/51tvzu5lA+L._SL75_.jpg https://m.media-amazon.com/images/I/51tvzu5lA+L.jpg https://m.media-amazon.com/images/I/51vXCewR--L.jpg https://m.media-amazon.com/images/I/61sw3JuZiBL.jpg https://m.media-amazon.com/images/I/71x7BFo80bL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity1250.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeSemi Steel Cast Iron V-Groove
Name, ThemeCOLOR_NAME/SIZE_NAME
ParentAsinsB08XN41N3J
ProductCategoryId383663011 511228 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for one (1) Service Caster Series #35 swivel caster with a 8" diameter by 2" wide v-groove cast iron wheel and a side lock brake capable of supporting 1,250 lbs./caster. When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 35 semi steel cast iron v-groove wheel casters. The Service Caster Series #35 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Product_site_launch_date2021-02-26T14:18:40.987Z
Rank102705 1227 141240 1592 223828 300428
Size8" Wheel 8.0
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Heavy Duty Large Top Plate V Groove Semi Steel Swivel Caster w/8" x 2" Silver Wheel & Side Lck Brake - 1250 lbs Capacity/Caster - Service Caster Brand Industrial & Scientific Plate Casters
TypeCount VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31JSmOyqnHL._SL75_.jpg
Unitinches pounds
Unit_count1.0
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website biss_display_on_website
Website_shipping_weight14.05

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG705436835111 @ $132.57

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Heavy Duty Large Top Plate V Groove Semi Steel Swivel Caster w/8" x 2" Silver Wheel & Side Lck Brake - 1250 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #35 swivel caster with a 8" diameter by 2" wide v-groove cast iron wheel and a side lock brake capable of supporting 1,250 lbs./caster. When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 35 semi steel cast iron v-groove wheel casters. The Service Caster Series #35 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Details
  • These Service Caster Series #35 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 1100 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#35
Part numberSCC-35S820-VGR-SLB
Items per pack1
LabelService Caster
ManufacturerService Caster
