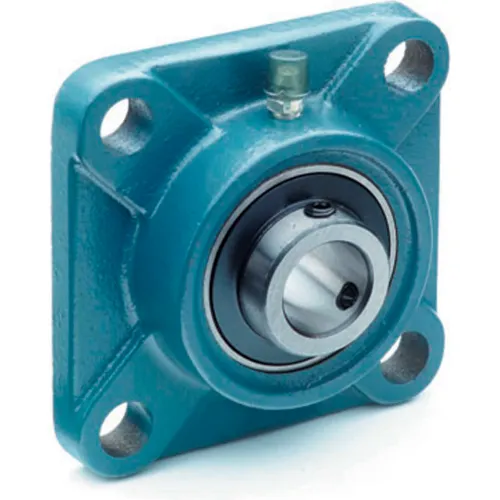

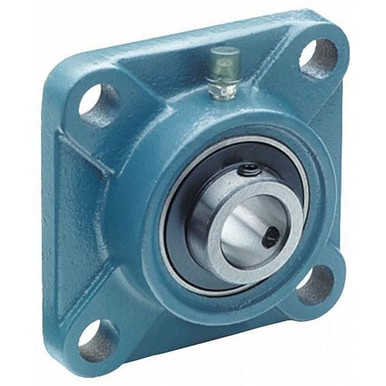

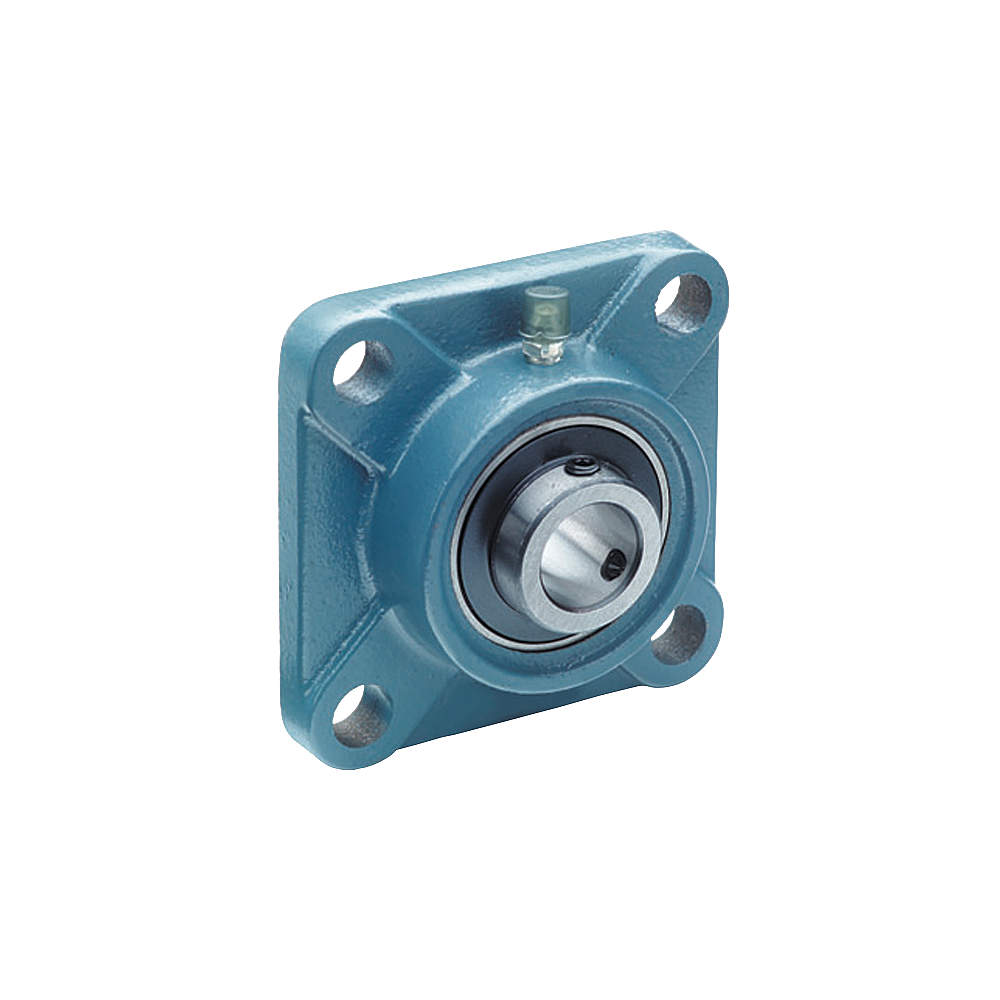

Flange Bearing, 4-Bolt, Ball, 40mm Bore
Brand: Tritan
'Flange Bearing, Number of Bolts 4, UCF Series, Bore Dia. 40mm, Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 102mm, Overall Height 51.2mm, Overall Width 130mm, Overall Length 130mm, Bolt Hole Size 1/2 In., Wide Inner Ring Insert, Dynamic Load Capacity 6631 lb., Static Load Capacity 4,069. lb, Temp. Range -40 Degrees to 250 Degrees F, Painted Finish, Blue, ISO, AFBMA Standards'
Details
- <b>Price For:</b> Each <b>Series</b>: UCF <b>Overall Width</b>: 130mm <b>Bearing Lubrication</b>: Shell Alvania RL2 or NLGI #2 Equivalent <b>Overall Length</b>: 130mm <b>Bearing Insert Material</b>: 52100 Chrome Steel <b>Overall Height</b>: 51.2mm <b>Bearing Insert Type</b>: Ball <b>Housing Material</b>: Cast iron <b>Dynamic Load Capacity</b>: 6631 lb. <b>Temp. Range</b>: -40 Degrees to 250 Degrees F <b>Static Load Capacity</b>: 4069 lb.
- <b>Item</b>: 4-Bolt Flange Bearing <b>Bore Dia.</b>: 40mm <b>Finish</b>: Painted <b>Bolt Size</b>: 1/2" <b>Locking Type</b>: Set Screw <b>Standards</b>: ISO, AFBMA <b>Country of Origin (subject to change)</b>: China
Listing
| Product group | BISS Basic |
|---|---|
| Product type | BEARINGS_AND_BUSHINGS |
| Model | UCF208-40MM |
| Part number | UCF208-40MM |
| Items per pack | 1 |
| Label | TRITAN |
| Manufacturer | TRITAN |
Tritan, UCF208-40mm, Flange Mount Bearing, 4 Bolt Flange, Set Screw Locking, Bore 40 mm
Brand: Tritan
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 40 mm, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC208-40MM, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 120 Degrees C, Minimum Temperature -40 Degrees C, Mount Hole Center-to-Center Height 101.9 mm, Number of Mount Holes 4, Overall Height 130.1 mm, Overall Length 130.1 mm, Overall Width 51.1 mm
Details
- Made in China
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | HARDWARE_BEARING |
| Part number | UCF208-40MM |
| Items per pack | 1 |
| Label | Tritan |
| Manufacturer | Tritan |
UCF208-40MM - TRITAN - Factory New!
Brand: Tritan
THIS LISTING IS FOR ONE PIECE- UCF208-40MM - 4 Bolt Flange Unit, Wide Inner Ring Insert, Set Screw, 40mm Bore Dia., 4.0157" Bolt-Hole to Bolt-Hole Center , 130mm Length - TRITAN - FACTORY NEW!
