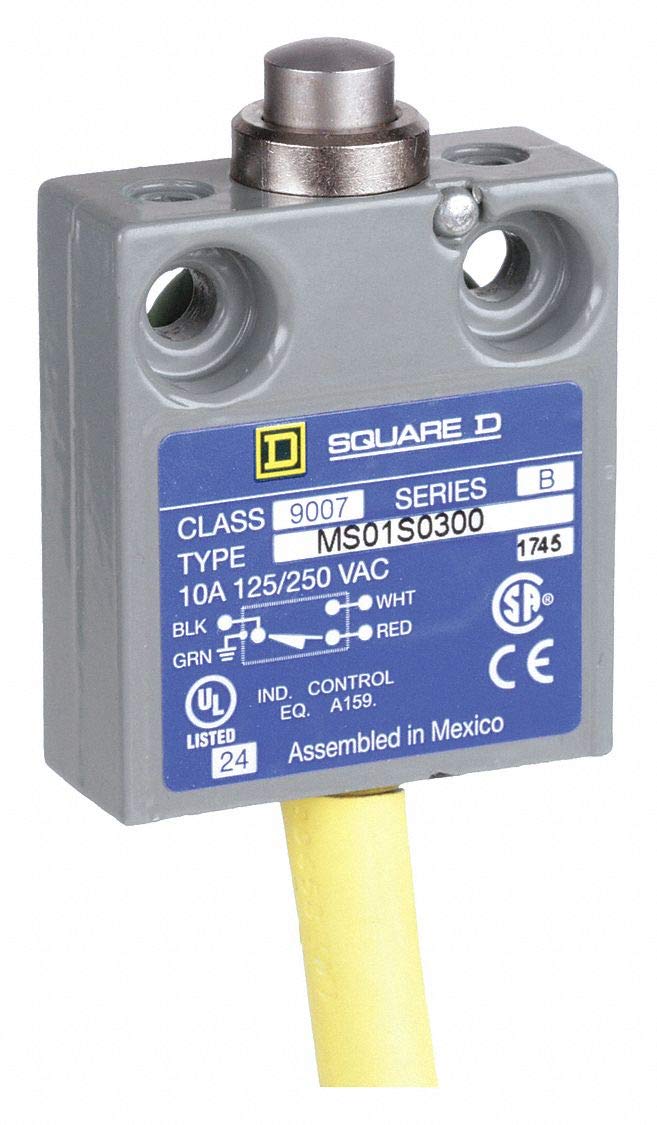

Square D . 9007MS01S0300

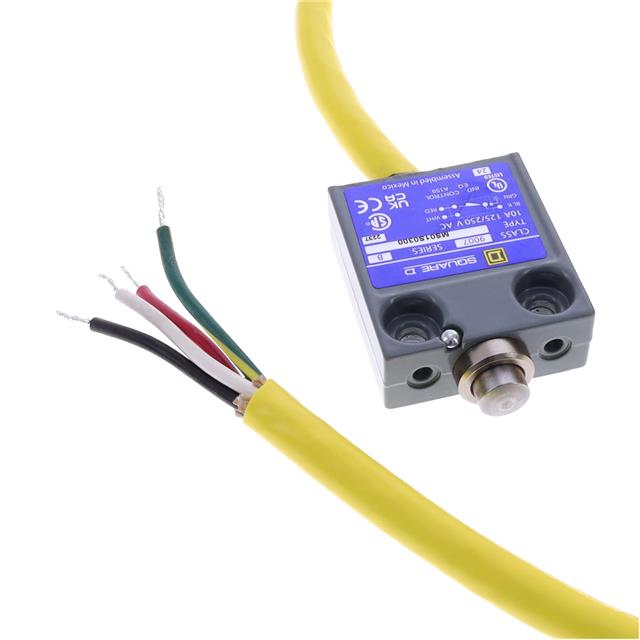

Size: 1.560 Inch Width x 0.620 Inch Depth x 1.750 Inch Height Without positive opening Terminals: green-yellow (gnd), black (com), white (no), red (nc) 100000 cycles electrical durability, 10000000 cycles mechanical durability Epoxy powder coat protective treatment Schneider Electric / Square D 1-Pole Limit switch has voltage rating of 240 VAC/28 VDC and current rating 10 Amps. It features cast zinc fixed body construction for added strength and durability. It measures 1.560 Inch x 0.620 Inch x 1.750 Inch. Limit switch has 18-AWG SJTO bottom cable of length 9 ft for required connection. Switch features push rod vertical actuator that is responsible for moving or controlling a mechanism or system. It features silver contacts in 1 NO/1 NC Form C configuration that offers momentary action. Limit switch features a plunger head that has a linear movement. It works with a spring return plunger stainless steel operator. Switch features SPDT function. It has PVC wire insulation. It finds application in machine tools, earth moving equipment or general transportation. Limit switch is UL listed/CE marked and CSA certified. Square D, LIMIT SWITCH 240VAC 10AMP MS +OPTIONS, #18 AWG SJTO Cable (Yellow) 9 Feet, -40...220 ¦F, 10 A, 240Vac/28Vdc, 9007, fixed, limit switch, plunger head, 9007MS/ML, miniature potted, plunger head, NC-NO, NEMA 1/2/4/6/6P/12/13 IP 67, Push Rod Vertical, UL Listed - CSA Certified - CE Marked, fixed, fixed, metal, linear Product Specification Actuator SPRING RETURN PLUNGER STAINLESS STEEL - Amperage Rating 10 Application 9007MS/ML, MINIATURE POTTED, PLUNGER HEAD Body Material Cast zinc Brand 9007 Connection PRE-WIRED CABLE BOTTOM Contact Configuration NC-NO Depth 0.62 Electrical Durability 100000 Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250 00785901550594 Head Type Plunger head Height 1.75 Height Unit IN Item Status A Length 7.5000 Length UOM IN Marking CSA;UL;CE

This miniature encapsulated limit switch features a plunger actuator and zinc body construction for heavy-duty durability.<br /><br /> Limit Switch Style: General Purpose Limit Switch<br /> Basic Actuator Style - Limit Switch: Plunger<br /> Actuator Style - Limit Switch: Plunger<br /> Actuator Location - Limit Switch: Top<br /> Item: General Purpose Limit Switch<br /> AC Contact Rating - Limit Switch: 10A @ 300V<br /> DC Contact Rating - Limit Switch: 5A @ 300V<br /> Contact Form- Switches: SPDT<br /> Actuator Length - Limit Switch: 0.70"<br /> Body Height - Limit Switch: 1.75"<br /> Body Width - Limit Switch: 1.58"<br /> Body Depth - Limit Switch: 0.62"<br /> Boot Sealed Actuator - Limit Switch: No<br /> Threaded for Panel Mounting - Limit Switch: No<br /> Body Style - Limit Switch: Miniature<br /> NEMA Rating: 1, 2, 4, 6, 6P, 12, 13<br /> Wiring Entry: Potted Cable<br /> Electrical Connection: 9 ft. Cable, 4 Wire<br /> IP Rating: 67<br /> Movement: Vertical<br /> Travel: 0.19"<br /> Series: 9007MS<br /> Operating Temp. Range: -4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)<br /> Body Material: Zinc<br /> Operating Force: 5.00 in.-lb.<br /> Standards: UL, CSA, CE
