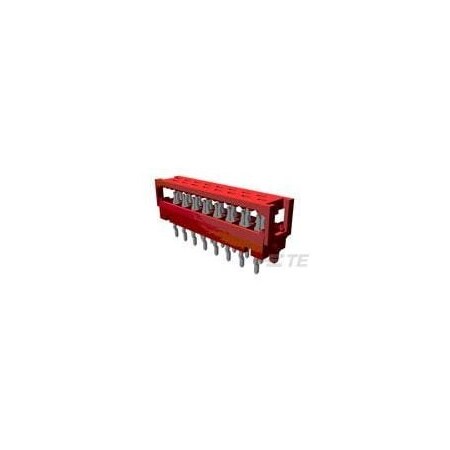

AMP - TE CONNECTIVITY . 9-215570-0

Conn IDC Connector PL 20 POS 2.54mm Solder RA Thru-Hole Box

Connector; Connector Type = Paddleboard Connector; Number of Positions = 20; Terminate To Printed Circuit Board; Vertical Mount Angle;

Features/Catch Copy <br>TE Connectivity Micro-MaTch Paddle Board Connector <br>Micro-MaTch paddle board (IDC transition connector) used for wire to circuit interconnections. These Micro-MaTch paddle board connectors allow you to connect the ribbon cable directly to the board without the opponent connector. The board paddle board connector has IDC contacts so there is no need to pre-handle wires. The Micro-MaTch series connectors are compact and space-saving design. Female contact is equipped with contact spring system to prevent flecching corrosion. Positioning spring absorbs movement between male and female contact caused by vibration or thermal expansion Prevents contact spots from shifting for an airtight connection and contact spring system prevents fretching. These Micro-MaTch Paddleboard IDC connectors feature kink-treated legs and board standoffs that allow for a secure hold on the board. <br>Features and Benefits: Compact space-saving design, cable can be connected directly to the substrate, fully tinned IDC contact, flecting and corrosion resistant, air-tight connection, kink treated terminals for secure holding, board standoff <br>● Applications: These Micro-MaTch connectors are designed for a wide range of applications. Main application: manufacturing / mate han equipment robots and motor control units central heating equipment car radio navigation system dashboard system basement station set-top box audio equipment <br><br>Specifications <br>Quantity: 1 reel (250 pieces) <br>Number of Contacts: 20 <br>Number of lines: 2 <br>Male/Female: Male <br>Pitch: 0.05 in (1.27 mm) <br>Installation Type: Cable Mount <br>Body Orientation: Vertical <br>Terminal Method: IDC <br>Rated Current: 1.5A <br>Contact plating: tin on nickel <br>Series: Micro-MaTch <br>Operating Temperature: Min-40°C <br>Operating Temperature Max: +105°C <br>Housing Material: PET <br>RoHS Compliant: Yes <br>Code Number: 164-9470
