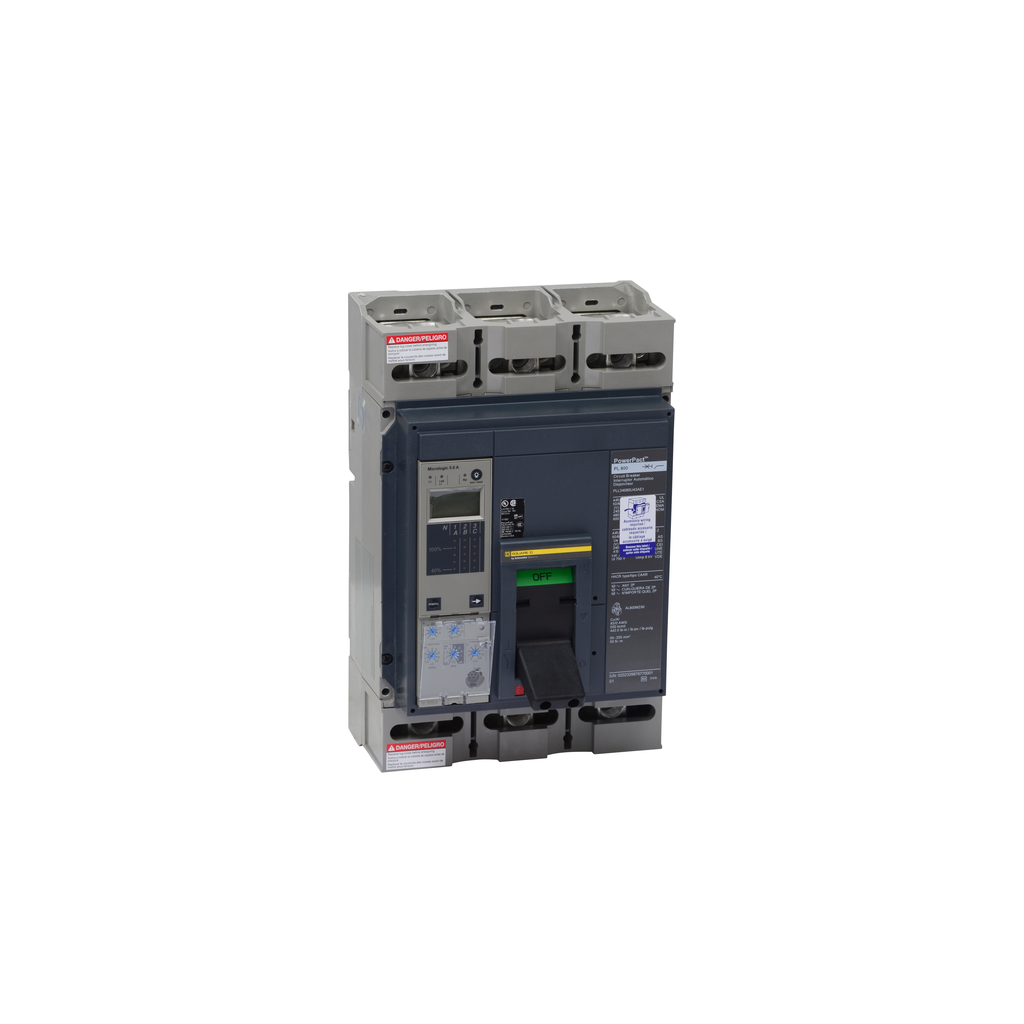

Circuit breaker, PowerPacT P, 400A, 3 pole, 600VAC, 65kA, lugs, Micrologic 5.0A, 80% | Mayer Electric

SQUARE D . SQDPKL36040U43A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00circuit breaker
Attribute01PowerPact P
Attribute02distribution
Attribute03PowerPact
Attribute0418 months
Attribute05unit mount lug)
Attribute0650/60 Hz
Attribute0725 mm
Attribute08AL800M23K
Attribute09400-400 A
Attribute10category A
Attribute1125 kA 240 V AC 50/60 Hz IEC 60947-2 || 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
Attribute120.4...1 x Ir
Attribute13electronic, ammeter, Micrologic 5.0 A, LSI
Attribute14Micrologic 5.0 A
Attribute1512.86 in
Attribute1680 %
Attribute17AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 50 kA 480 V AC 50/60 Hz UL 489 || AIR 50 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
Attribute18750 V IEC 60947-2
Attribute19yes IEC 60947-2
Attribute20600 V AC 50/60 Hz UL 489
Attribute2150-50 N.m 95-240 mm? (3 x AWG 3/0...3 x 500 kcmil) || 1.0-1.3 N.m
Attribute22lug
Attribute23K
Attribute243P
Attribute25overload 1 trip indicator green) || 1 trip indicator green) || trip causes 1 trip indicator green)
Attribute26, moq, multiple, tierMinQty11
Attribute272 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Attribute283 x AWG 3/0...3 x 500 kcmil aluminium/copper
Attribute298.27 in
Attribute30lugs line || lugs load
Attribute318.05 in
Attribute3232 lb(US)
Attribute338 kV IEC 60947-2
Attribute34toggle
Attribute35Product out of China RoHS scope. Substance declaration for your information.
Attribute36ENVEOLI1407012EN
Attribute37, Attribute38, Attribute41Yes
Attribute39ENVPEP1407012EN
Attribute40Green Premium product
Attribute42Compliant
Attribute43Reference contains Substances of Very High Concern above the threshold
Attribute44DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute45-2-70 ?C
Attribute463 IEC 60947-1
Attribute47-50-85 ?C
Attribute48UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Attribute49CE
Attribute50UL || CSA || NOM
Attribute51front cover IP40
AttributeKey00Product Or Component Type
AttributeKey01Product Name
AttributeKey02Device Application
AttributeKey03Range
AttributeKey04Warranty
AttributeKey05Mounting Mode
AttributeKey06Network Frequency
AttributeKey07Wire Stripping Length
AttributeKey08Terminal Identifier
AttributeKey09Line Rated Current
AttributeKey10Utilisation Category
AttributeKey11[Ics] Rated Service Breaking Capacity
AttributeKey12Long Time Pick-Up Adjustment Range
AttributeKey13Trip Unit Technology
AttributeKey14Trip Unit Name
AttributeKey15, height_AttribHeight
AttributeKey16Continuous Current Rating
AttributeKey17Breaking Capacity
AttributeKey18[Ui] Rated Insulation Voltage
AttributeKey19Suitability For Isolation
AttributeKey20[Ue] Rated Operational Voltage
AttributeKey21Tightening Torque
AttributeKey22Mounting Support
AttributeKey23Breaking Capacity Code
AttributeKey24Poles Description
AttributeKey25Local Signalling
AttributeKey26Quantity Per Set
AttributeKey27Number Of Slots
AttributeKey28Awg Gauge
AttributeKey29, width_AttribWidth
AttributeKey30Electrical Connection
AttributeKey31, length_AttribDepth
AttributeKey32, Weight_AttribNet Weight
AttributeKey33[Uimp] Rated Impulse Withstand Voltage
AttributeKey34Control Type
AttributeKey35China Rohs Regulation
AttributeKey36Circularity Profile
AttributeKey37Rohs Exemption Information
AttributeKey38Mercury Free
AttributeKey39Environmental Disclosure
AttributeKey40Sustainable Offer Status
AttributeKey41Pvc Free
AttributeKey42Eu Rohs Directive
AttributeKey43Reach Regulation
AttributeKey44California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey45Ambient Air Temperature For Operation
AttributeKey46Pollution Degree
AttributeKey47Ambient Air Temperature For Storage
AttributeKey48Standards
AttributeKey49Quality Labels
AttributeKey50Product Certifications
AttributeKey51Ip Degree Of Protection
DimensionUnitinch
Extra Product NameCircuit breaker, PowerPacT P, 400A, 3 pole, 600VAC, 65kA, lugs, Micrologic 5.0A, 80% | Mayer Electric
UPC, MPN, SKUSQDPKL36040U43A
Weight32
WeightUnitlbs
depth, length8.05
height12.86
jsonUrlData/Product/SQUARE-D-Circuit-breaker-PowerPact-P-400A-3-pole-600VAC-65kA-lugs-Micrologic-5-0A-80-SQDPKL36040U43A
jsonUrlData287d2445f-2d6d-4680-93e0-aeea00572e07
qtyInStock0
tierPrice10.0
width8.27
