MEAN WELL HBG-100-48B | Power supply: switched-mode; LED; 96W; 28.8?48VDC; 2A; 90?305VAC

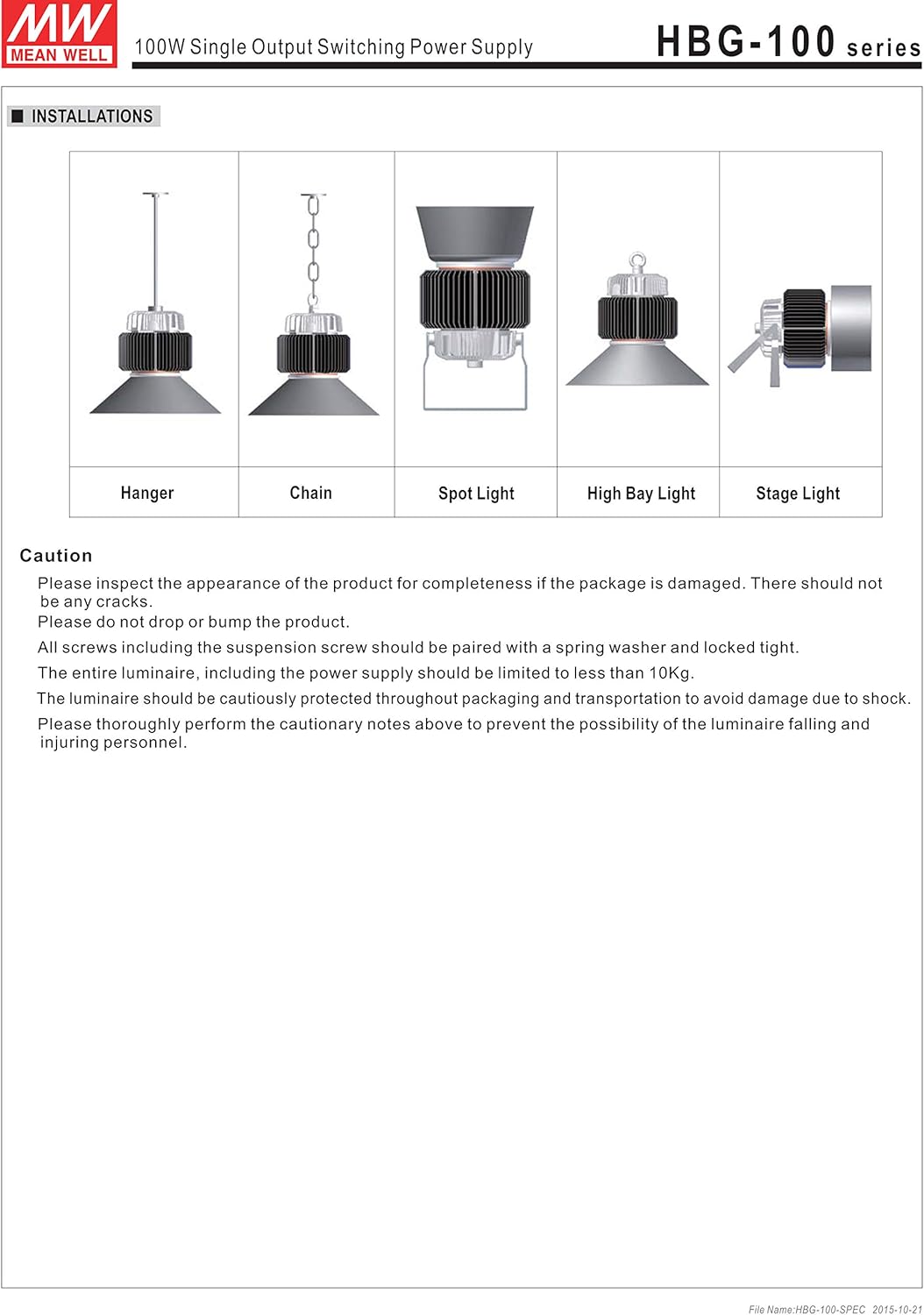

HBG series are high performance LED power supplies specially designed for the high/low bay lighting and spot lighting applications. Featuring with circular shape, these series are easy to be assembled with the mechanical structure of high/low bay lighting fixtures. The enclosures can be perfectly configured with the heat sink of lighting fixtures and provide excellent heat dissipation ability, which solve the mechanism limits of old style bay lighting systems using slim shape LED power supplies. (HBG-60 also offers models in PCB type, allowing a better variety for lighting module design consideration.) As long as the temperature on the top of the enclosure can be controlled under 70℃, the power supply service life could be guaranteed up to 40,000 hours. Features: <br>HBG-60: 90~295VAC input; HBG-100~240: 90~305VAC input <br>Built-in active PFC function <br>High efficiency up to 93.5% <br>Protections: Short circuit / Over current / Over voltage / O ver temp. (Short circuit / Over temp. for HBG-60) <br>Output current adjustable through internal potentiometer <br>Suitable for dry, damp, and wet location <br>Two configurations for HBG-60(constant current mode): Blank-Type: Enclosed type(plastic enclosure); P-Type: PCB type HBG-60 HBG-100 HBG-160 HBG-240 <br>Multiple models for HBG-100/160/240 (aluminum case) A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection E-Type(option): IP67 rated. Can be fixed by steel support, contact MEAN WELL for details (HBG-100/160 only) <br>5 years warranty

<p><b>Features:</b></p> <p>Constant Current mode output</p> <p>MEAN WELL patented circular metal housing with class Ⅰ design(Patent No.:CN201220314551)</p> <p>Built-in active PFC function</p> <p>IP67 / IP65 rating for indoor or outdoor installations</p> <p>Function options: output adjustable via potentiometer; 3 in 1 dimming;DALI</p> <p>Typical lifetime > 50000 hours</p> <p>5 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:90~305VAC 127~431VDC(please refer to "STATIC CHARACTERISTIC" section</p> <p>AC inrush current (Typ.):COLD START 60A (twidth =550μs measured at 50% Ipeak) at 230VAC ;per NEMA 410</p> <p>AC adjustment range:24V: 2.4~4A , 36V: 1.62~2.7A, 48V: 1.2~2A, 60V: 1~1.6A</p> <p>Over voltage protection:24V: 28~35V, 36V: 41~49V ,48V: 54~63V, 60V: 65~75V ,Shut down o/p voltage, re-power on to recovery</p> <p>Over current protection: 95~108% Constant current limiting</p> <p>Over temperature protection: Shut down o/p voltage, re-power on to recovery</p> <p>Withstand voltage:I/P-O/P: 3.75KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVAC</p> <p>Working temperature: Ta=-40 ~ +85ºC (please refer to "OUTPUT LOAD vs TEMPERATURE"section</p> <p>Safety standards:UL8750(type”HL”),CSA C22.2 No.250.13-12;ENEC EN61347-1,EN61347-2-13, independen,EN62384,GB19510.1,GB19510.14,BIS IS15885(for 36A,48A,60A only), EAC TP TC 004, IP65 or IP67 approved</p> <p>EMC standards: Compliance to EN55015, EN61000-3-2 Class C (@load≧60%）；EN61000-3-3,GB17743 and GB17625.1; Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity :Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (DxH) (mm):130x 66.5</p>

<b>Features</b><br>Constant current mode (HBG-60/100) Constant voltage+constant current modes (HBG-160/240)<br>Universal AC input (up to 305VAC)/ Full range (up to 295VAC for HBG-60)<br>High efficiency up to 93.5%<br>Patented metal housing design for HBG-100/160/240 (Patent No.: CN201220314551) Fully isolated plastic case (HBG-60)<br> Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires (HBG-100/160)<br> Isolation class II, no F.G. (HBG-60)<br>Class 2 power unit (HBG-60) HBG-60 HBG-100 HBG-160 HBG-240<br>Suitable for dry, damp, and wet location<br>Protections: Short circuit / Over current / Over voltage / Over temp. (Short circuit / Over temp. for HBG-60)<br>Multiple models for HBG-100/160/240 A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank Type: IP67 rated. Cable for I/O connection<br>Optional CCC (100~240W) & RCM models available<br>5 years warranty
