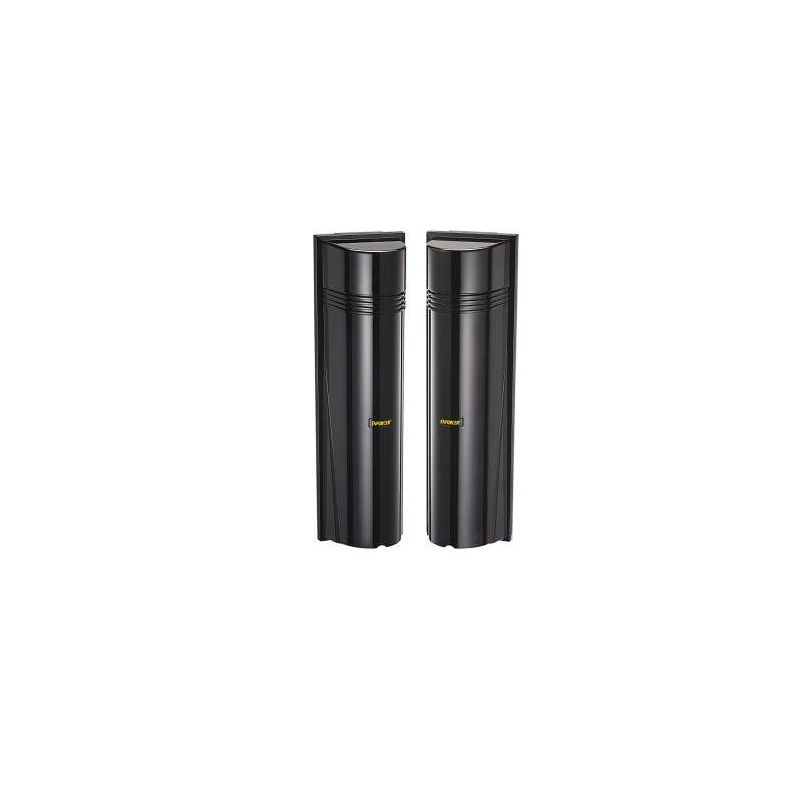

Seco-Larm Quad-Photobeam Detector For Indoor Or Outdoor Use. Range: Up To 660Ft (200M) Outdoors And 1,320Ft (400M) Indoors. Multi-Frequency, Laser Beam Alignment, Built-In Heater, Ip66 Weatherproof, Environmental Output, 1224 Vac/vdc. - E-964-Q660Q

<p><b>Seco-Larm E-964-Q660Q Multi-Frequency Quad Photobeam Detector with Laser Beam Alignment, Indoor or Outdoor Use, Up to 660ft (200m) Outdoor and 1320ft (400m) Indoors Range, 12-24 VAC/VDC</b></p> <b>Key Features:</b></ul> <li>Built-in laser beam alignment system speeds accurate, reliable positioning, multi-frequency (4 channels selectable)</li> <li>Quad infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, and other, lensed optics reinforce beam strength and provide excellent immunity to false alarms</li> <li>Weatherproof (IP55), sunlight-filtering case for indoor and outdoor use, anti-frost system with built-in heater so that beam functions even in extreme conditions </li> <li>NO/NC alarm output, N.C. tamper circuit included, non-polarized power inputs, quick, easy installation with built-in laser beam and audible alignment system </li> <li>Built-in alignment strength indicator, interruption time adjustable for nearly all situations</li></ul></br> <b>Specifications:</b></ul> <li>Type: Quad multi-frequency photobeam detectors with laser beam alignment</li> <li>Current draw: 125mA,Tx & Rx, 290mA with heater as well</li> <li>Sensing range: Outdoor- 660 feet (200m) Indoor- 1320 feet (400m)</li> <li>Operating voltage: AC/DC 12~24V (Non-polarized)</li> <li>IP rating: IP55</li> <li>Interupt speed: 50msec~700msec (adjustable)</li> <li>LEDs – Red: Alarm LED (receiver) – when transmitter and receiver are not aligned or when beam is broken</li> <li>LEDs – Green: Power LED (Rx & Tx)- indicates connected to power</li> <li>Detection system: Simultaneous break of 4 beams</li> <li>Alarm output: Form ""C"" relay COM/N.O./N.C. 1A@125VAC/24VDC</li> <li>Case material: PC Resin</li> <li>Laser wavelength: 650nm</li> <li>Dimensions: 15-1/4 x 4-7/16 x 4-11/32 inches</li> <li>Laser output power: 5mW</li> <li>Alignment angle: Horizontal (+/-)90 degrees, Vertical: (+/-)15 degrees</li> <li>Weight: 5.73 lbs</li></ul>
