Seco-Larm 4-Channel, End-Point 24Vac. For Use With Vpd Baluns Such As Eb P101-20Vq. Transmits Power And Data To The Camera While Receiving Video From The Camera. All-In-One Solution: Built-In Power Supply (1 Amp/channel) To Power Cctv - EB-C304-01EQ

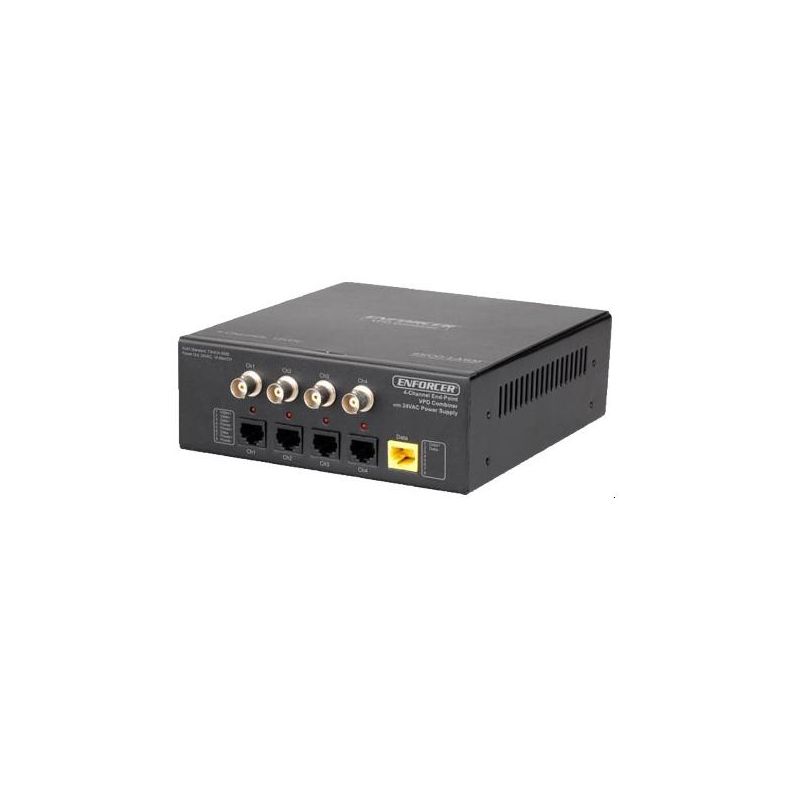

<p><b>Seco-Larm EB-C304-01EQ 4-Channel Video/Power/Data Active Endpoint Combiner, Built-in Passive Transceiver Baluns, Supports Up to Four (4) Cameras, Power LED Indicator for Each Channel</b></p> <b>Key Features</b><ul> <li>Video, power, and data over a single category cable</li> <li>Compatible with all traditional and HD analog formats, including HD-AHD, HD-CVI, and HD-TVI</li> <li>Built-in passive transceiver baluns</li> <li>Used in end-span applications</li> <li>Supports up to four (4) cameras</li> <li>Power LED indicator for each channel</li> <li>Can transfer HD Analog video up to 1,476ft (450m)</li> <li>Integrated 24VAC power supply</li></ul> <b>Specifications</b><ul> <li>Type: 24VAC endpoint</li> <li>Channels: 4</li> <li>Video Range - CVBS: 984' (300m)</li> <li>Video Range - HD-AHD: 720p: 1050' (320m); 1080p: 722' (220m)</li> <li>Video Range - HD-CVI: 720p: 1476' (450m); 1080p: 820' (250m)</li> <li>Video Range - HD-TVI: 720p/1080p: 820’ (250m)</li> <li>Video Format: NTSC, PAL, SECAM</li> <li>Maximum Input: 1.0Vp-p</li> <li>Insertion Loss: 0.3dB per pair from 20kHz~60Mhz</li> <li>Frequency Response: DC to 60MHz</li> <li>CMMR: 60dB, 20kHz~60MHz</li> <li>Wire Category: CAT5e~CAT6</li> <li>BNC Connection: Nickel-plated</li> <li>Impedance - Coax: 75Ω@1MHz</li> <li>Impedance - RJ45: 100Ω@1MHz</li> <li>Max. Amperage: 1A@24VAC</li> <li>Data Range: 2,400' (800m)</li> <li>DC Loop Resistance: 29Ω/1,000’ (9.5Ω/100m)</li> <li>Differential Capacitance: 19pF/ft max (62pf/m max)</li> <li>Output Voltage: 26VAC</li> <li>Fuse: 1.5A max/CH</li> <li>Input Power: 110VAC</li> <li>Input Power Fuse: F2AL250V</li> <li>Operating Temperature: -14~140°F (-10~60°C)</li> <li>Operating Humidity: 0~95%, non-condensing</li> <li>Material: Steel</li> <li>Dimensions: 6-5/16” x 2-3/16” x 6-11/16” (160 x 55 x 170mm)</li> <li>Weight: 5.72-lbs (2596g)</li></ul>
