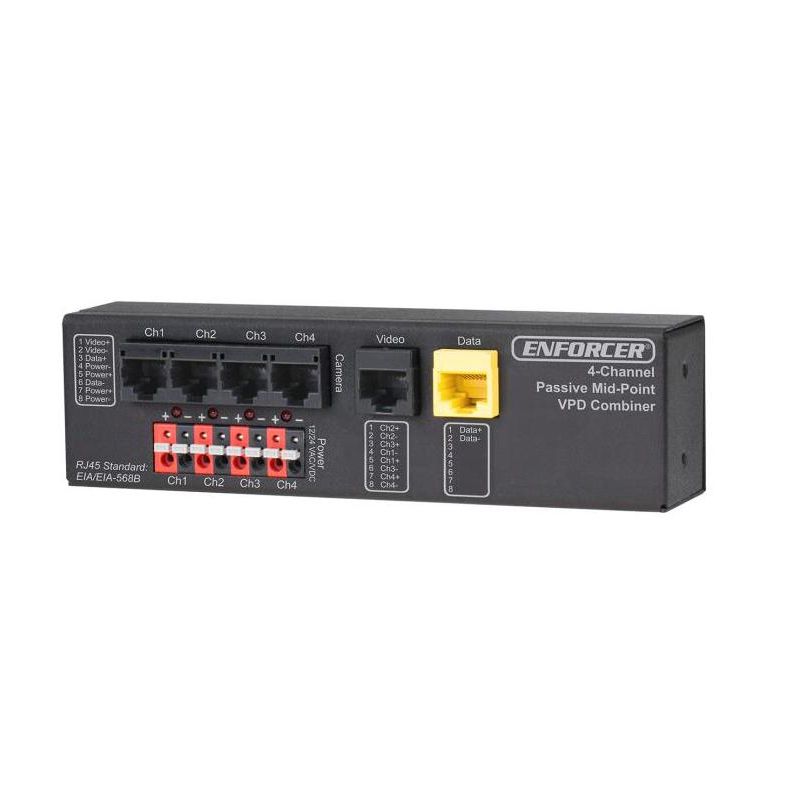

Seco-Larm 4-Channel, Mid-Point. For Use With Vpd Baluns Such As Eb P101-20Vq. Transmits Power And Data To The Camera While Receiving Video From The Camera. Placed At Midpoint Between Cameras And Dvr. - EB-P304-01MQ

Seco-Larm EB-P304-01MQ Enforcer Channel Video/Power/Data Passive Midpoint Combiner; Supports up to 4 Cameras; Power LED Indicator For Each Channel; Can Transfer HD Analog Video Up to 1476 feet<br><br> ENFORCER VPD (Video/Power/Data) Combiners work in conjunction with standard passive VPD baluns and RJ45 cables to simplify and organize a large scale CCTV installation. Using this allows for increased flexibility and simplified, more organized cable installation, providing power to cameras while delivering high quality video all over a single CAT5e/6 cable. ENFORCER VPD combiners are compatible with all HD analog, including HD-AHD, HD-CVI, and HD-TVI, as well as traditional analog formats.<br><br> Key Features:<br> - Video, power, and data over a single category cable<br> - Compatible with all traditional and HD analog formats, including HD-AHD, HD-CVI, and HD-TVI<br> - Used in mid-span applications<br> - Supports up to 4 or 16 cameras<br> - Power LED indicator for each channel<br> - Can transfer HD analog video up to 1,476ft (450m)<br> - Use any external low-voltage power supply<br> - Rack-mountable using included brackets<br><br> Specifications:<br> - Type: Passive Midpoint<br> - Channels: 4<br> - Video Range - CVBS: 984' (300m)<br> - Video Range - HD-AHD: 720p: 1050' (320m); 1080p: 722' (220m)<br> - Video Range - HD-CVI: 720p: 1476' (450m); 1080p: 820' (250m)<br> - Video Range - HD-TVI: 720p/1080p: 820' (250m)<br> - Video Format: NTSC, PAL, SECAM<br> - Maximum Input: 1.0Vp-p<br> - Frequency Response: DC to 60MHz<br> - Wire Category: CAT5e~CAT6<br> - BNC Connection: Nickel-plated<br> - Impedance - Coax: 75Ω@1MHz<br> - Impedance - RJ45: 100Ω@1MHz<br> - Max. Amperage: 1A@12VDC/24VAC<br> - Data Range: 2,400' (800m)<br> - Fuse: 1.5A max/CH<br> - Operating Temperature: -14~140°F (-10~60°C)<br> - Material: Steel<br> - Dimensions: 6.29 x 1.73 x 1.29 inches<br> - Weight: 0.9 pounds
