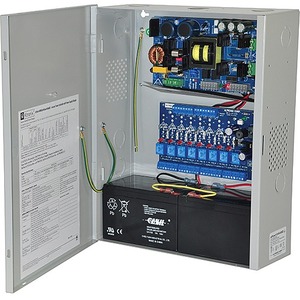

Buy Altronix EFLOW104NA8, eFlow Access Power Controller Power Supply 24VDC - Prime Buy

Altronix . EFLOW104NA8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioAltronix
Attribute00, Attribute07Input 120VAC 60Hz, 4.5A. Power supply input options: a) One (1) common power input for ACM8 and lock power (factory installed). b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total. Eight (8) Access Control System trigger inputs.
Attribute01, Attribute0824VDC outputs at 10A supply current. Eight (8) independently trigger controlled outputs. Output options: a) Eight (8) Fail-Safe filtered power outputs. b) Eight (8) Fail-Secure filtered power outputs. c) Eight (8) form "C" relay outputs (rated at 5A/24VDC or VAC). d) Any combination of the above. Eight (8) unswitched filtered aux. power outputs (outputs are rated at 2.5A). Over Voltage protection. Short circuit and thermal overload protection.
Attribute02, Attribute09Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs. Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b) Polarity reversal input from FACP signaling circuit. Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28VDC not evaluated by UL).
Attribute03, Attribute10AC fail supervision (form "C" contacts). Battery fail & presence supervision (form "C" contacts). Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.
Attribute04, Attribute11ACM8 Access Power Controller: Red LEDs indicate outputs are triggered (relays energized). Green LED indicates FACP disconnect is triggered. eFlow Power Supply Board: AC input and DC output LED indicators.
Attribute05, Attribute12Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption. Zero voltage drop when unit switches over to battery backup (AC failure condition).
Attribute06, Attribute13Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr (approx.): 24VDC: 123 BTU/Hr.
AttributeKey00, AttributeKey07Input Voltage
AttributeKey01, AttributeKey08Output
AttributeKey02, AttributeKey09Fire Alarm Disconnect
AttributeKey03, AttributeKey10Supervision
AttributeKey04, AttributeKey11Visual Indicators
AttributeKey05, AttributeKey12Battery Backup
AttributeKey06, AttributeKey13Electrical
ConditionNEWCONDITION
Extra Product NameBuy Altronix EFLOW104NA8, eFlow Access Power Controller Power Supply 24VDC - Prime Buy
VoltageInput 120VAC 60Hz, 4.5A. Power supply input options: a) One (1) common power input for ACM8 and lock power (factory installed). b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total. Eight (8) Access Control System trigger inputs. 120.0
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, SKU, Mpns, PartNumber, Part_number, StrippedMpnsEFLOW104NA8
qtyInStock-2
qtySourceFieldMap
snippetAltronix eFlow Access Power Controller Power Supply 24VDC EFLOW104NA8. Excellent prices and discounts ✅ ☎ 1-855-969-9322 Mon-Fri 8:00 AM - 5:00 PM or order online 24/7
tierPrice1408.40
ASIN, AsinB00QUE4YMU
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
BindingTools & Home Improvement
Bullet_pointAltronix EFLOW104NA8
ClassificationId524136
CurrencyUSD
DisplayNameSecurity & Surveillance
FetchTime1635222369 1708969326
Height15.51 500 75
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleAltronix Eflow104na8 Power Supply
Item_type_keywordsecurity-and-surveillance-products
Item_weight, Weight8.91
KeywordPOWER
Length12.24
Linkhttps://m.media-amazon.com/images/I/3122tvecRcL._SL75_.jpg https://m.media-amazon.com/images/I/3122tvecRcL.jpg
List_price0.0
Marketplace_idATVPDKIKX0DER
ProductGroup, WebsiteDisplayGroupNamePhotography
ProductTypeSYSTEM_POWER_DEVICE
ProductTypeNameSURVEILANCE_SYSTEMS
Product_descriptionAltronix EFLOW104NA8 Power Supply
Product_site_launch_date2014-12-11T00:05:41.727Z
SkuALTRONIX EFLOW104NA8
URLhttps://m.media-amazon.com/images/I/3122tvecRcL._SL75_.jpg
Unitinches pounds volts
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupphoto_display_on_website
Width4.49 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.comEFLOW104NA81-211 @ $408.40
alldataresource.com5528621-211 @ $411.60
123securityproducts.comEFLOW104NA811
Platt.com1812684111 @ $696.63
Office SpecialtiesEFLOW104NA811
RadwellEFLOW104NA811
absupply.netALTRONIX CMP. EFLOW104NA8111 @ $589.25
barcodegiant.comALT27727711
surveillance-video.comEFLOW104NA81-211 @ $318.90
PCNation3U7450111 @ $287.96
