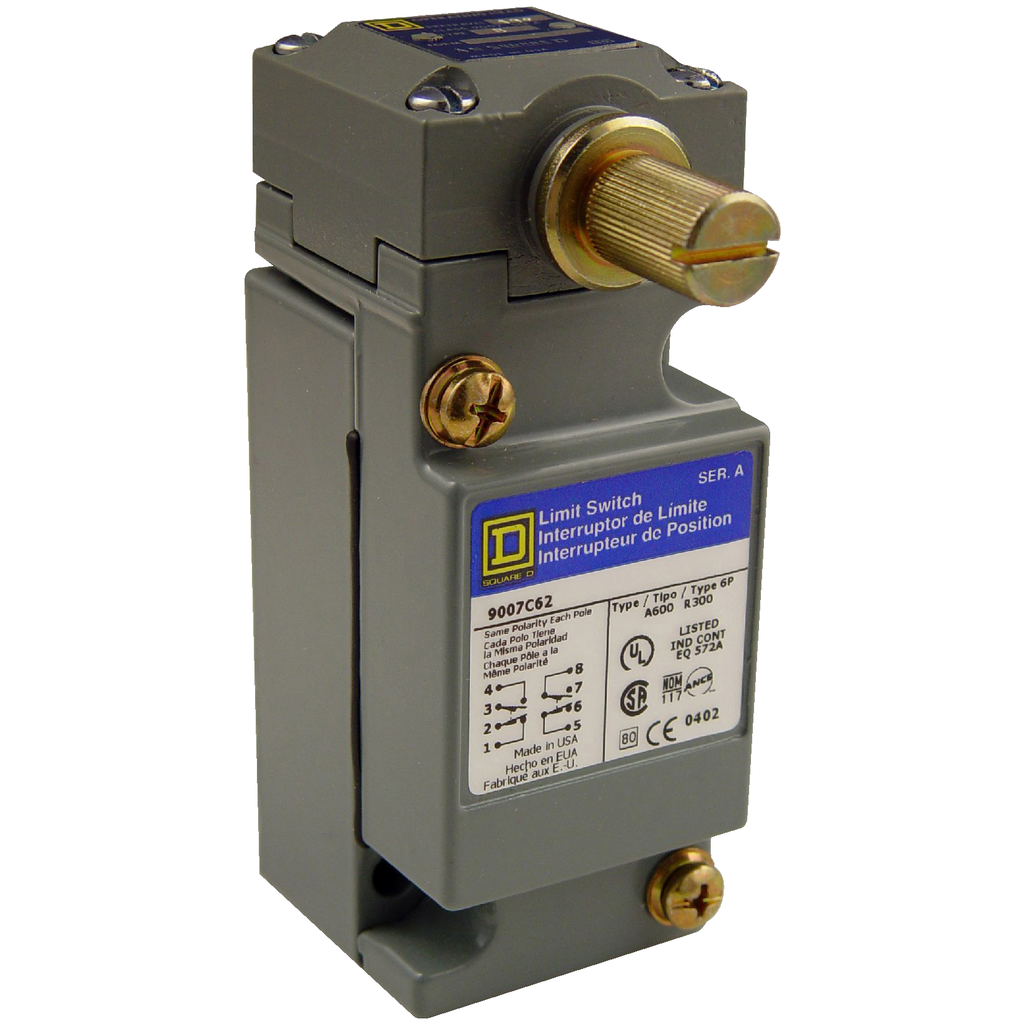

Limit switch, 9007, 9007C 2 NO/NC, rotary head, CW+CCW, maintained | Mayer Electric

Mayer Electric Supply . 9007C62CM11

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Attribute00CW and CCW || from left and right
Attribute01lateral approach, 1 direction programmable
Attribute02heavy duty
Attribute032(NC-NO)
Attribute04rotary
Attribute05, moq, multiple, tierMinQty11
Attribute06plug-in
Attribute079007
Attribute08, Attribute43without
Attribute09screw-clamp terminals AWG 22...AWG 12), 1-2
Attribute10snap action
Attribute11standard box
Attribute12by the body
Attribute131 entry for M20 x 1.5 mm BS 4568
Attribute14limit switch
Attribute15metal
Attribute169007C
Attribute17zinc stay put without operating lever -)9007C lever
Attribute182
Attribute19rotary head
Attribute2018 months
Attribute2190 ?
Attribute224.02-4.02 in
Attribute23(7-8)NO || (5-6)NC || (1-2)NC || (3-4)NO
Attribute24600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
Attribute2545 ?
Attribute2610 A CC non-time delay
Attribute271.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA
Attribute28silver contacts
Attribute2910000000 cycles
Attribute3090 ft/min with 45? cam angle, levers only || 130 ft/min with 30? cam angle, levers only
Attribute31, Attribute38zinc
Attribute3210 A
Attribute33Form ZZ
Attribute34DPDT-DB
Attribute352.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Attribute361.55 in
Attribute372.5 in
Attribute393 lbf.in
Attribute401000000 cycles
Attribute411.25 lb(US)
Attribute42+/- 0.002 in linear travel of cam
Attribute44ENVPEP111160EN
Attribute45Not applicable, out of EU RoHS legal scope
Attribute46Reference contains Substances of Very High Concern above the threshold
Attribute47Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute48-20-185 ?F
Attribute49standard environment
Attribute50NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Attribute51-20-185 ?F standard environment
Attribute52class 0 IEC 61140
Attribute5360 gn 9 ms IEC 60068-2-27
Attribute5425 gn 10-150 Hz)IEC 60068-2-6
Attribute55epoxy powder coat
Attribute56IP67 conforming to IEC 60529
AttributeKey00Switch Actuation
AttributeKey01Type Of Approach
AttributeKey02Series Name
AttributeKey03Contacts Type And Composition
AttributeKey04Movement Of Operating Head
AttributeKey05Sale Per Indivisible Quantity
AttributeKey06Body Type
AttributeKey07Range Of Product
AttributeKey08Positive Opening
AttributeKey09Electrical Connection
AttributeKey10Contact Operation
AttributeKey11Product Specific Application
AttributeKey12Fixing Mode
AttributeKey13Cable Entry
AttributeKey14Product Or Component Type
AttributeKey15Material
AttributeKey16Device Short Name
AttributeKey17Type Of Operator
AttributeKey18Number Of Poles
AttributeKey19Head Type
AttributeKey20Warranty
AttributeKey21Maximum Displacement Angle
AttributeKey22, height_AttribHeight
AttributeKey23Terminals Description Iso N?1
AttributeKey24[Ui] Rated Insulation Voltage
AttributeKey25Tripping Angle
AttributeKey26Short-Circuit Protection
AttributeKey27[Ie] Rated Operational Current
AttributeKey28Contacts Material
AttributeKey29Mechanical Durability
AttributeKey30Maximum Actuation Speed
AttributeKey31Body Material
AttributeKey32[Ithe] Conventional Enclosed Thermal Current
AttributeKey33Contact Form
AttributeKey34Switch Function
AttributeKey35[Uimp] Rated Impulse Withstand Voltage
AttributeKey36, width_AttribWidth
AttributeKey37, length_AttribDepth
AttributeKey38Head Material
AttributeKey39Minimum Torque For Tripping
AttributeKey40Electrical Durability
AttributeKey41, Weight_AttribNet Weight
AttributeKey42Repeat Accuracy
AttributeKey43Local Signalling
AttributeKey44Environmental Disclosure
AttributeKey45Eu Rohs Directive
AttributeKey46Reach Regulation
AttributeKey47California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey48Ambient Air Temperature For Storage
AttributeKey49Environmental Characteristic
AttributeKey50Nema Degree Of Protection
AttributeKey51Ambient Air Temperature For Operation
AttributeKey52Electrical Shock Protection Class
AttributeKey53Shock Resistance
AttributeKey54Vibration Resistance
AttributeKey55Protective Treatment
AttributeKey56Ip Degree Of Protection
DimensionUnitinch
Extra Product NameLimit switch, 9007, 9007C 2 NO/NC, rotary head, CW+CCW, maintained | Mayer Electric
UPC785901141679
Weight1.25
WeightUnitlbs
depth, length2.5
height8.04
jsonUrlData/Product/SQUARE-D-9007C-limit-switch-2-NO-NC-rotary-head-CWCCW-maintained-785901141679
jsonUrlData266c19c17-0a27-41cf-8881-abd200617d9c
MPN9007C62CM11
qtyInStock0
SKUSQD9007C62CM11
tierPrice1309.7796
width1.55

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007C62CM11111 @ $309.78
