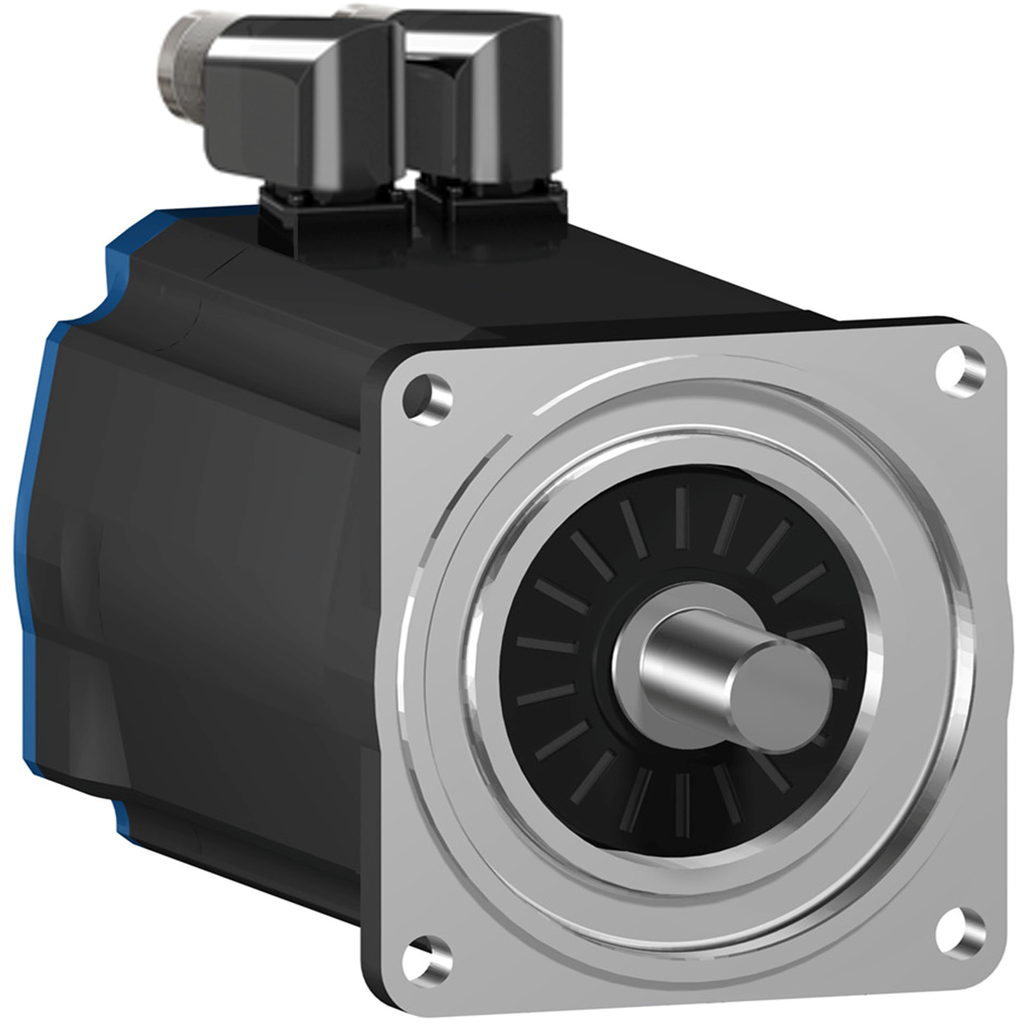

AC servo motor BSH - 9.31 N.m - 1500 rpm - untapped shaft - with brake - IP50 | Mayer Electric

SQUARE D . SQDBSH1004P02F2A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute006000 rpm
Attribute01international standard flange
Attribute02with
Attribute03131072 points/turn x 4096 turns
Attribute04servo motor
Attribute052600 W LXM32.D30N4 10 A, 480 V, three phase || 2200 W LXM05AD57N4, 380...480 V, three phase || 2200 W LXM05BD34N4, 380...480 V, three phase || 2200 W LXM05BD57N4, 380...480 V, three phase || 2200 W LXM05CD34N4, 380...480 V, three phase || 2200 W LXM05CD57N4, 380...480 V, three phase || 2200 W LXM15MD28N4, 400 V, three phase || 2300 W LXM15MD40N4, 400 V, three phase || 2400 W LXM15MD40N4, 480 V, three phase || 2700 W LXM15MD28N4, 480 V, three phase || 2100 W LXM32.D30N4 10 A, 400 V, three phase || 1300 W LXM05AD42M3X, 200...240 V, three phase || 1300 W LXM05BD42M3X, 200...240 V, three phase || 1300 W LXM05CD42M3X, 200...240 V, three phase || 1300 W LXM15MD28M3, 230 V, three phase || 1300 W LXM15MD28N4, 230 V, three phase || 1300 W LXM15MD40N4, 230 V, three phase || 2200 W LXM05AD34N4, 380...480 V, three phase
Attribute0637.9 N.m LXM32.D30N4 10 A, 400 V, three phase || 23.47 N.m LXM05AD34N4, 380...480 V, three phase || 35.7 N.m LXM05AD42M3X, 200...240 V, three phase || 35.7 N.m LXM05AD57N4, 380...480 V, three phase || 23.47 N.m LXM05BD34N4, 380...480 V, three phase || 35.7 N.m LXM05BD42M3X, 200...240 V, three phase || 35.7 N.m LXM05BD57N4, 380...480 V, three phase || 23.47 N.m LXM05CD34N4, 380...480 V, three phase || 35.7 N.m LXM05CD42M3X, 200...240 V, three phase || 35.7 N.m LXM05CD57N4, 380...480 V, three phase || 37.9 N.m LXM32.D30N4 10 A, 480 V, three phase || 25.7 N.m LXM15MD28M3, 230 V, three phase || 25.7 N.m LXM15MD28N4, 230 V, three phase || 25.7 N.m LXM15MD28N4, 400 V, three phase || 25.7 N.m LXM15MD28N4, 480 V, three phase || 33.83 N.m LXM15MD40N4, 230 V, three phase || 33.83 N.m LXM15MD40N4, 400 V, three phase || 33.83 N.m LXM15MD40N4, 480 V, three phase
Attribute07LXM05AD42M3X 200...240 V three phase || LXM15MD40N4 480 V three phase || LXM32.D30N4 400 V three phase || LXM32.D30N4 480 V three phase || LXM05AD57N4 380...480 V three phase || LXM05BD57N4 380...480 V three phase || LXM05CD57N4 380...480 V three phase || LXM15MD28M3 230 V three phase || LXM15MD28N4 230 V three phase || LXM15MD40N4 230 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three phase || LXM15MD28N4 480 V three phase || LXM15MD40N4 400 V three phase
Attribute08IP50 standard
Attribute09untapped
Attribute102500 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM15MD28N4, 230 V, three phase || 1500 rpm LXM15MD40N4, 230 V, three phase || 3000 rpm LXM05AD57N4, 380...480 V, three phase || 3000 rpm LXM05BD57N4, 380...480 V, three phase || 3000 rpm LXM05CD57N4, 380...480 V, three phase || 3000 rpm LXM15MD28N4, 400 V, three phase || 3000 rpm LXM15MD40N4, 400 V, three phase || 3500 rpm LXM15MD40N4, 480 V, three phase || 4000 rpm LXM15MD28N4, 480 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase || 1500 rpm LXM05AD42M3X, 200...240 V, three phase || 1500 rpm LXM05BD42M3X, 200...240 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 3000 rpm LXM05AD34N4, 380...480 V, three phase || 3000 rpm LXM05BD34N4, 380...480 V, three phase || 3000 rpm LXM05CD34N4, 380...480 V, three phase || 1500 rpm LXM15MD28M3, 230 V, three phase
Attribute11rotatable right-angled connectors
Attribute128.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.1 N.m LXM05CD34N4, 380...480 V, three phase || 7.1 N.m LXM05CD57N4, 380...480 V, three phase || 7.17 N.m LXM15MD40N4, 400 V, three phase || 8.18 N.m LXM15MD40N4, 230 V, three phase || 8.22 N.m LXM05AD42M3X, 200...240 V, three phase || 8.22 N.m LXM05BD42M3X, 200...240 V, three phase || 8.22 N.m LXM05CD42M3X, 200...240 V, three phase || 8.22 N.m LXM15LD28M3, 230 V, three phase || 8.22 N.m LXM15MD28N4, 230 V, three phase || 8.3 N.m LXM32.D30N4 10 A, 480 V, three phase || 6.5 N.m LXM15MD28N4, 480 V, three phase || 6.69 N.m LXM15MD40N4, 480 V, three phase || 7 N.m LXM15MD28N4, 400 V, three phase || 7.1 N.m LXM05AD34N4, 380...480 V, three phase || 7.1 N.m LXM05AD57N4, 380...480 V, three phase || 7.1 N.m LXM05BD34N4, 380...480 V, three phase || 7.1 N.m LXM05BD57N4, 380...480 V, three phase
Attribute13BSH
Attribute148 N.m LXM32.D30N4 10 A, 400 V, three phase || 9.31 N.m LXM05AD34N4, 380...480 V, three phase || 9.31 N.m LXM05AD42M3X, 200...240 V, three phase || 9.31 N.m LXM05AD57N4, 380...480 V, three phase || 9.31 N.m LXM05BD34N4, 380...480 V, three phase || 9.31 N.m LXM05BD42M3X, 200...240 V, three phase || 9.31 N.m LXM05BD57N4, 380...480 V, three phase || 9.31 N.m LXM05CD34N4, 380...480 V, three phase || 9.31 N.m LXM05CD42M3X, 200...240 V, three phase || 9.31 N.m LXM05CD57N4, 380...480 V, three phase || 8 N.m LXM32.D30N4 10 A, 480 V, three phase || 9.31 N.m LXM15MD40N4, 400 V, three phase || 9.31 N.m LXM15MD40N4, 480 V, three phase || 9.31 N.m LXM15MD28M3, 230 V, three phase || 9.31 N.m LXM15MD28N4, 230 V, three phase || 9.31 N.m LXM15MD28N4, 400 V, three phase || 9.31 N.m LXM15MD28N4, 480 V, three phase || 9.31 N.m LXM15MD40N4, 230 V, three phase
Attribute1518 months
Attribute16115 mm
Attribute1732.3 A
Attribute183.64 W
Attribute198 kHz
Attribute206.52 ms 20 ?C
Attribute2112 N.m holding brake
Attribute221070 N 1000 rpm || 740 N 3000 rpm || 850 N 2000 rpm
Attribute23, Attribute404
Attribute245.245 kg.cm?
Attribute258
Attribute26103 V/krpm 120 ?C
Attribute270.2 x Fr
Attribute283.5 mm
Attribute29without second shaft end
Attribute3050 mm
Attribute3117 W
Attribute32three phase
Attribute33307.5 mm
Attribute3434.8 A LXM15LD28M3 || 32.3 A LXM05CD42M3X || 32.3 A LXM05CD34N4 || 32.3 A LXM05CD57N4 || 30 A LXM32.D30N4 || 34.8 A LXM15MD28N4 || 34.8 A LXM15MD40N4 || 32.3 A LXM05AD42M3X || 32.3 A LXM05AD34N4 || 32.3 A LXM05AD57N4 || 32.3 A LXM05BD42M3X || 32.3 A LXM05BD34N4 || 32.3 A LXM05BD57N4
Attribute359.9 kg
Attribute3695 mm
Attribute3711.8 mH 20 ?C
Attribute38100 mm
Attribute39480 V
Attribute4124 mm
Attribute429 mm
Attribute43natural convection
Attribute44multiturn SinCos Hiperface
Attribute451.81 Ohm 20 ?C
Attribute46Lexium 32 || Lexium 05 || Lexium 15
Attribute476.2 A
Attribute481.62 N.m/A 120 ?C
Attribute49, Attribute50, Attribute53Yes
Attribute51ENVPEP111049EN
Attribute52Green Premium product
Attribute54Reference contains Substances of Very High Concern above the threshold
Attribute55Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute56The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute57X
Attribute58Pro-active compliance (Product out of EU RoHS legal scope)
AttributeKey00Maximum Mechanical Speed
AttributeKey01Mounting Support
AttributeKey02Holding Brake
AttributeKey03Speed Feedback Resolution
AttributeKey04Product Or Component Type
AttributeKey05Nominal Output Power
AttributeKey06Peak Stall Torque
AttributeKey07Product Compatibility
AttributeKey08Ip Degree Of Protection
AttributeKey09Shaft End
AttributeKey10Nominal Speed
AttributeKey11Electrical Connection
AttributeKey12Nominal Torque
AttributeKey13Device Short Name
AttributeKey14Continuous Stall Torque
AttributeKey15Warranty
AttributeKey16, height_AttribCircle Diameter Of The Mounting Holes
AttributeKey17Maximum Permanent Current
AttributeKey18Continuous Power
AttributeKey19Switching Frequency
AttributeKey20Stator Electrical Time Constant
AttributeKey21Holding Torque
AttributeKey22Maximum Radial Force Fr
AttributeKey23Number Of Motor Stacks
AttributeKey24Rotor Inertia
AttributeKey25Number Of Motor Poles
AttributeKey26Back Emf Constant
AttributeKey27Maximum Axial Force Fa
AttributeKey28, width_AttribCentring Collar Depth
AttributeKey29Second Shaft
AttributeKey30Shaft Length
AttributeKey31Brake Pull-In Power
AttributeKey32Phase
AttributeKey33, length_AttribLength
AttributeKey34Maximum Current Irms
AttributeKey35, Weight_AttribNet Weight
AttributeKey36Centring Collar Diameter
AttributeKey37Stator Inductance
AttributeKey38Motor Flange Size
AttributeKey39[Us] Rated Supply Voltage
AttributeKey40Number Of Mounting Holes
AttributeKey41Shaft Diameter
AttributeKey42Mounting Holes Diameter
AttributeKey43Type Of Cooling
AttributeKey44Feedback Type
AttributeKey45Stator Resistance
AttributeKey46Range Compatibility
AttributeKey47Continuous Stall Current
AttributeKey48Torque Constant
AttributeKey49Rohs Exemption Information
AttributeKey50Mercury Free
AttributeKey51Environmental Disclosure
AttributeKey52Sustainable Offer Status
AttributeKey53Pvc Free
AttributeKey54Reach Regulation
AttributeKey55California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey56Weee
AttributeKey57China Rohs Regulation
AttributeKey58Eu Rohs Directive
DimensionUnitmm
Extra Product NameAC servo motor BSH - 9.31 N.m - 1500 rpm - untapped shaft - with brake - IP50 | Mayer Electric
UPC3389118140431
Weight9.9
WeightUnitkg
diameter, height115.0
jsonUrlData/Product/SQUARE-D-AC-servo-motor-BSH-9-31-N-m-1500-rpm-untapped-shaft-with-brake-IP50-3389118140431
jsonUrlData261984ba2-1a6a-4807-bc4c-aeea00553609
length307.5
moq, multiple, tierMinQty11
MPN, SKUSQDBSH1004P02F2A
qtyInStock0
tierPrice13240.21
width3.5
