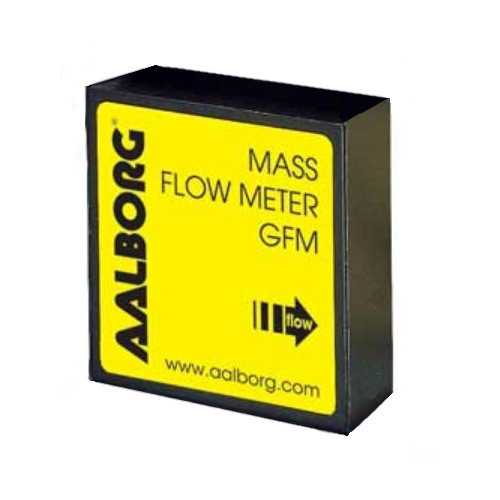

Order GFM67S-VEN6-A0-3NC-60-SS by Aalborg GFM Thermal Mass Flow Meter Steel - US Mega Store

Aalborg . GFM67S-VEN6-A0-3NC-60-SS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAalborg
Attribute00, Attribute15Performed at standard conditions [14.7 psia (101.4 kPa) and 70 °F (21.1 °C)]
Attribute01, Attribute16±0.25% of full scale
Attribute02, Attribute17Generally 2 seconds to within ±2% of actual flow rate over 25 to 100% of full scale
Attribute03, Attribute180.15% of full scale / °C
Attribute04, Attribute190.01% of full scale / psi (0.07 bar)
Attribute05, Attribute20800 ms
Attribute06, Attribute21No greater than +15 degree rotation from horizontal to vertical; standard calibration is in horizontal position
Attribute07, Attribute22EN 55011 class 1, class B; EN50082-1
Attribute08, Attribute23Stainless Steel
Attribute09, Attribute24Viton-A
Attribute10, Attribute251/2" Compression
Attribute11, Attribute26No Display
Attribute12, Attribute27Universal +12 to +26 VDC
Attribute13, Attribute280-5 VDC
Attribute14, Attribute29None
AttributeKey00, AttributeKey15Calibrations
AttributeKey01, AttributeKey16Repeatability
AttributeKey02, AttributeKey17Response Time
AttributeKey03, AttributeKey18Temperature Coefficient
AttributeKey04, AttributeKey19Pressure Coefficient
AttributeKey05, AttributeKey20Time Constant
AttributeKey06, AttributeKey21Attitude Sensitivity
AttributeKey07, AttributeKey22CE Compliant
AttributeKey08, AttributeKey23Material
AttributeKey09, AttributeKey24Seals
AttributeKey10, AttributeKey25Fittings
AttributeKey11, AttributeKey26Display
AttributeKey12, AttributeKey27Power
AttributeKey13, AttributeKey28Output Signal
AttributeKey14, AttributeKey29Digital Interface
CategoryL1Process Control & Automation
CategoryL2Controllers
CategoryL3Flow
CategoryL4Aalborg GFM67S-VEN6-A0-3NC-60-SS
ConditionNEW
Extra Product NameOrder GFM67S-VEN6-A0-3NC-60-SS by Aalborg GFM Thermal Mass Flow Meter Steel - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUGFM67S-VEN6-A0-3NC-60-SS
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Aalborg, GFM67S-VEN6-A0-3NC-60-SS, GFM Thermal Mass Flow Meter Stainless Steel, Viton-A Seals, 1/2" Compression, No Display, Universal +12 to +26 VDC, 0-5 VDC, Nitrogen N2 0-500, L/Min, 14.7 psia Metering Pressure, 21.1 Deg C / 70 Deg F Temperature </strong> </p> <p><strong>GFM mass flow meter </strong> </p> <p>A low cost solution to thermal mass flow metering for gases is presented by Aalborg in introducing the model GFM mass flow meter line. The GFM design combines the convenience and accuracy of conventional mass flow devices with low costs previously unattainable. </p> <p><strong>Principles of Operation </strong> </p> <p>Metered gases are divided into two laminar flow paths, one through the primary flow conduit, and the other through a capillary sensor tube. Both flow conduits are designed to ensure laminar flows and therefore the ratio of their flow rates is constant. Two precision temperature sensing windings on the sensor tube are heated, and when flow takes place, gas carries heat from the upstream to the downstream windings. The resultant temperature differential is proportional to the change in resistance of the sensor windings. A Wheatstone bridge design is used to monitor the temperature dependent resistance gradient on the sensor windings which is linearly proportional to the instantaneous rate of flow. Flow rates are unaffected by temperature and pressure variations within stated limitations. </p> <p><strong>General Description </strong> </p> <p>Compact, self contained GFM mass flow meters are designed to read flow rates of gases. The rugged design coupled with instrumentation grade accuracy provides versatile and economical means of flow control. Transducer power supply ports are fuse and polarity protected. </p>
tierPrice11644

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comGFM67S-VEN6-A0-3NC-60-SS12 Weeks Factory Lead Time11 @ $1644.00
heavydutydepot.comGFM67S-VEN6-A0-3NC-60-SS111 @ $1644.00
MegadepotGFM67S-VEN6-A0-3NC-60-SS111 @ $1644.00
