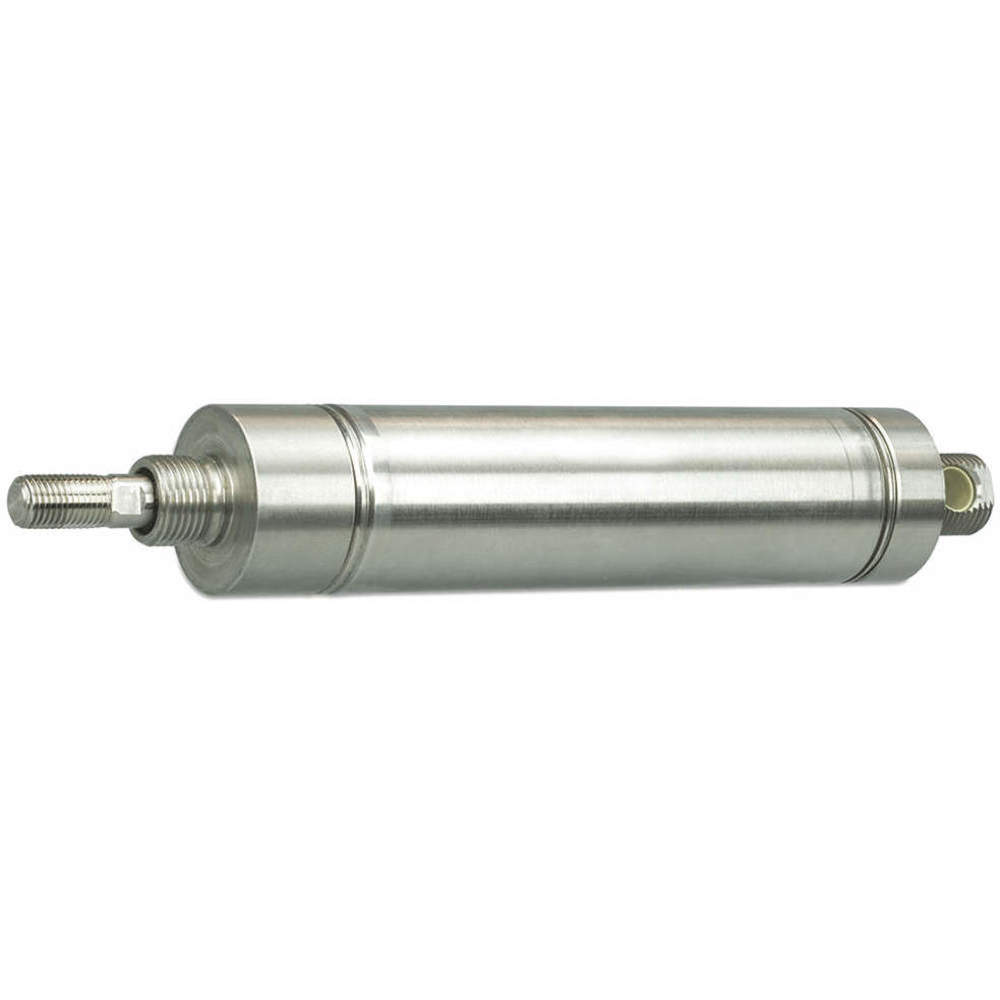

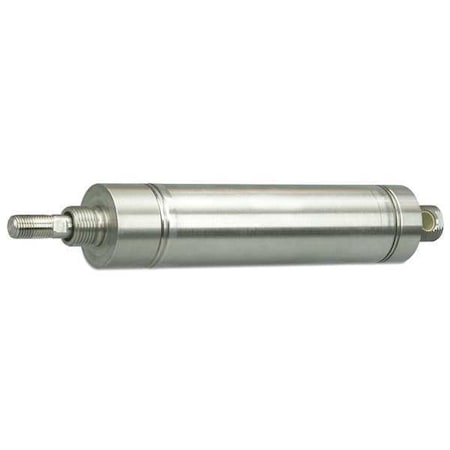

Parker 3.00DXPSR03.00 | Round Air Cylinder 3 Inch Bore 3 Inch Stroke | 49J934 | Raptor Supplies Worldwide

Air Cylinder, Air Cylinder, Double Acting, Air Cylinder Bore Dia. 3 in, 3 in Stroke, Round Body, Nose and Pivot Air Cylinder Mount, Stainless Steel Body Material, 3/8 in FNPT Port Size, -10 Degrees to 165 Degrees F Temp. Range, 11.4 in Overall Length, Aluminum Piston Material, 250 psi Max. Pressure, Silver Finish, Aluminum End Cap Material, Chrome Plated Steel Piston Rod Material, Magnetic Piston No, Tube Material Stainless Steel, Nose Mount Thread 1-1/2 In.-12, 0.75 in Rod Dia. Air Cylinder Type : Round Body Tube Material : Stainless Steel Single Acting/Double Acting : Double Acting Dimension A : 1 1/4 in Magnetic Piston : No Dimension D : 0.625 in Max. Pressure : 250 psi Dimension Cd : 0.5 in Cylinder Type : Round Non-Repairable Air Cylinder Bore Dia. : 3 in Piston Rod Material : Chrome Plated Steel Rod Thread Size : 5/8-18 UNF Pivot Hole Dia. : 0.5 in Overall Length : 11.4 in Cushion Type : None Dimension Kk : 5/8-18 UNF End Cap Material : Aluminum Rod Dia. : 0.75 in Dimension Cb : 0.88 in Piston Material : Aluminum Features : Non-Switch Ready Nose Mount Thread : 1-1/2-12 Body Material : Stainless steel Stroke : 3 in Port Size : 3/8 in FNPT Dimension Cc : 0.75 in Temp. Range : -10 Degrees to 165 Degrees F Finish : Silver Rod Thread Length : 1.25 in Bore Dia. : 3 in Mount : Nose and Pivot Cylinder Action : Double Acting Dimension N1 : 1-1/2-12 Dimension B : 1.63 in Dimension E : 0.88 in Air Cylinder Mount : Nose and Pivot Item : Air Cylinder Dimension L : 0.81 in Country of Origin (subject to change) : United States
