Alcoswitch Te Connectivity Switch, Toggle, Spdt, 5A, 125V - A101KZQ04

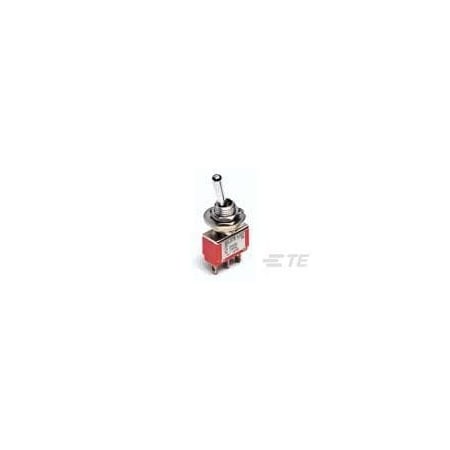

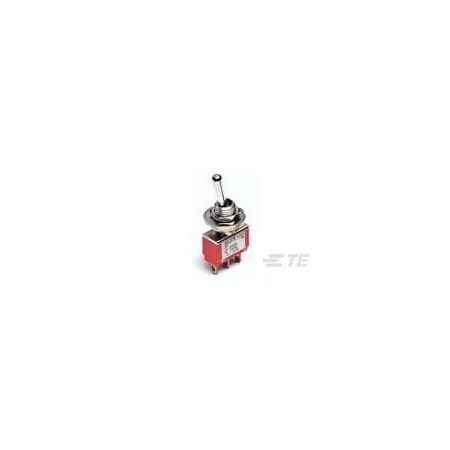

Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 28M8136 | 1 | 204 | 1 | 1 @ $6.56, 10 @ $6.56, 25 @ $6.06, 50 @ $6.06, 100 @ $6.06 |
| Newark | 74AJ8521 | 1 | 204 | 1 | 1 @ $10.14, 10 @ $9.18, 25 @ $8.84, 50 @ $8.49, 100 @ $7.68 |
 Zoro | G300967468 | 1 | 1 | 1 @ $89.85 | |
| Waldom | TE CONNECTIVITY AMP BRAND 1825136-7 | 15 | 510 | 1 | 15 @ $4.51, 60 @ $4.42, 150 @ $4.34, 250 @ $4.25 |
| Waldom | TE CONNECTIVITY ALCOSWITCH A101KZQ04 | 15 | 510 | 1 | 15 @ $4.51, 60 @ $4.42, 150 @ $4.34, 250 @ $4.25, 500 @ $4.17 |
| Waldom | TE CONNECTIVITY A101KZQ04 | 1 | 1 | ||
| TME | 1825136-7 | 1 | 1 | ||
| 1202225 | 1 | 280 | 1 | 1 @ $7.01 | |
| Allied Electronics | 70156083 | 1 | 1 | ||
 Zoro | G201009625 | 250 | 250 | 1 @ $9.31 | |
| RS Online | 7109640 | 1 | 1 | ||
| us.rs-online.com | 70156083 | 1 | 59 | 1 | 1 @ $8.31, 10 @ $8.07, 25 @ $7.73 |
| RS Delivers | 710-9640P | 1 | 78 | 1 | 1 @ $7.38, 25 @ $7.01, 50 @ $6.56, 75 @ $6.05 |
| RS Online | 1650855 | 1 | 1 | ||
| RS Online | 7830965 | 1 | 1 | ||
| 1Source | A101KZQ04 | 1 | 1 | ||
| RS Delivers | 783-0965 | 1 | 127 | 1 | 1 @ $8.32, 10 @ $7.44, 25 @ $6.80, 50 @ $6.24, 150 @ $5.91 |
| A101KZQ04 | 5 | 45 | 1 | 5 @ $6.73, 100 @ $5.44, 1000 @ $4.22, 10000 @ $3.46 | |
| AmazonSC | B00DK83UPQ | 1 | 1 | ||
| TE Connectivity | 1825136-7 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
TE Connectivity Part Number 1825136-7
Brand: TE Connectivity
Always EU RoHS/ELV Compliant Wave solder capable to 265°C
Listing
| Product group | BISS Basic |
|---|---|
| Product type | FIBER_OPTIC_CONNECTOR |
| Part number | 1825136-7 |
| Label | TE Connectivity |
| Manufacturer | TE Connectivity |
Catalog
| Category | Industrial & Scientific |
|---|---|
| MPN | 1825136-7 |
| Product group | BISS |
| Product type | FIBER_OPTIC_CONNECTOR |
| Manufacturer | TE Connectivity |
Switch Toggle ON None ON SPDT Locking Lever Wire Lug 5A 250VAC 28VDC Panel Mount with Threads Bulk
Brand: TE Connectivity
EU RoHS: Compliant with Exemption ECCN (US): EAR99 Part Status: Active Actuator Style: Locking Lever Pole Throw Configuration: SPDT Switch Configuration: ON None ON Bushing Type: Threaded Maximum Current Rating (A): 5@120VAC 28VDC Dielectric Strength: 1000Vrms Minimum Insulation Resistance (MOhm): 1000 Maximum Contact Resistance (mOhm): 10 Electrical Life (Cycles): 6000 Actuator Color: Chrome Actuator Length (mm): 16.26 Number of Rows: 1 Mounting: Panel Mount with Threads Termination Style: Wire Lug Number of Terminals: 3 Terminal Length (mm): 3.96 Terminal Pitch (mm): 4.7 Seal: Epoxy Seal Location: Terminals Seal Description: Epoxy Base Material: Cu Body Orientation: Straight Minimum Operating Temperature (°C): -30 Maximum Operating Temperature (°C): 85 Packaging: Bulk Size Type: Miniature Thread Size: 1/4-40 Body Length (mm): 12.7 Bushing Length (mm): 9.37 Body Depth (mm): 6.86 Body Height (mm): 8.89 Product Length (mm): 12.7 Product Depth (mm): 6.86 Product Height (mm): 38.48
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | 1825136-7 |
| Part number | 1825136-7 |
| Items per pack | 10 |
| Label | TE Connectivity |
| Manufacturer | TE Connectivity |
