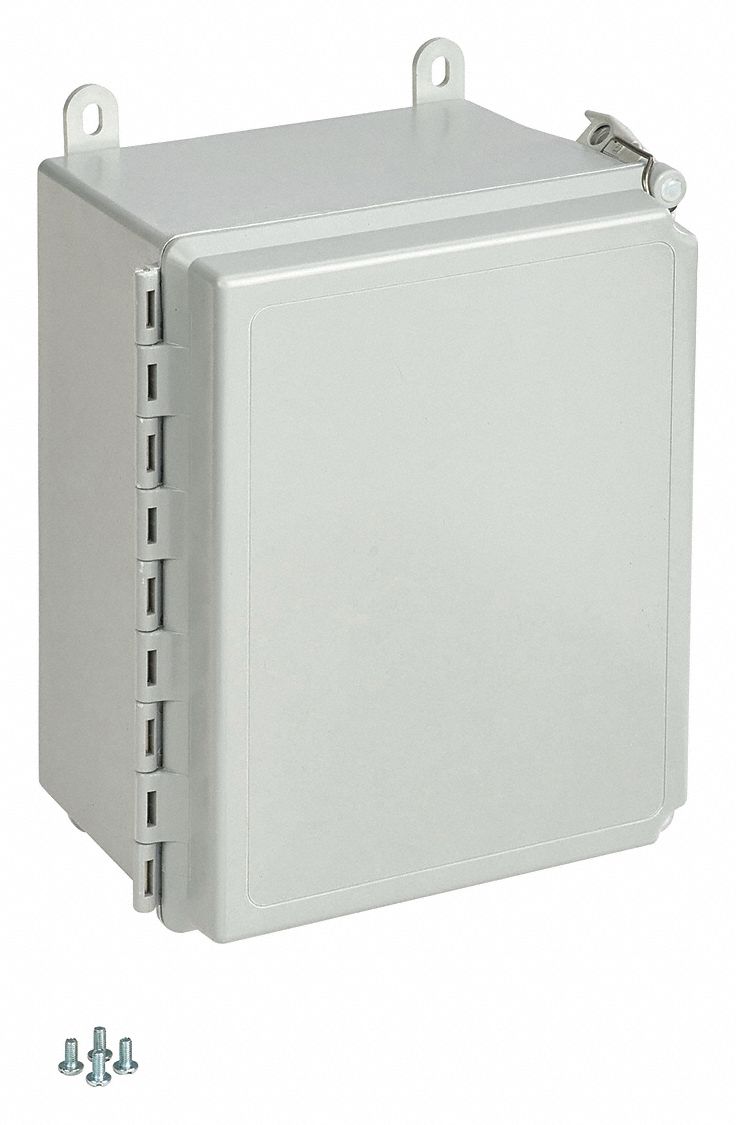

ENCLOSURE,NONMETALLIC,12 H X 10

Hoffman A12106CHSCFG Solid Cover/Scr, 12.00 , Type 4X Encl, Fiberglass The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security. Features: Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties Fiberglass is easily punched, drilled, filed or sawed Gasket assures water-tight and dust-tight seal Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure Scratch-resistant polycarbonate windows are permanently bonded in place Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits Removable hinged cover attached to body with Type 316 stainless steel hinge pin Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure Hinge pin and bail are corrosion-resistant Type 316 stainless steel Padlock provisions included in each latch Industry Standards: Mounting brackets required to meet UL/CSA external mounting requirements. UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 Enclosure flammability evaluated per UL 508A Window flammability evaluated per UL 508A NEMA/EEMAC Type 4, 4X, 12, 13 CSA File No. 42186: Type 4, 4X, 12, 13 IEC 60529, IP66 Bulletin Number: A48 Material: Fiberglass Model Code: 29690 Ship Wt. Std. Pkg. (lbs): 10.2 Interchangeable: False IP Rating: IP66 Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and

Enclosure NEMA Rating 4, 4X, 12, 13, Material of Enclosure Compression-Molded Fiberglass, 10 In., Hinged Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Padlockable Latch, Screws, Finish Brushed, Color Stainless Steel, Depth 6.00 In., Enclosure Cover Features Screw Cover, Features Data Pocket, Polyurethane Gasket, Height 12.00 In., Interior Panel 32FR63, IP Rating 66, Wall Mounting, Series A48, Standards UL Listed, CSA Certified, IEC, cUL, Width 10.00 In.
