HOFFMAN A1614CHNF

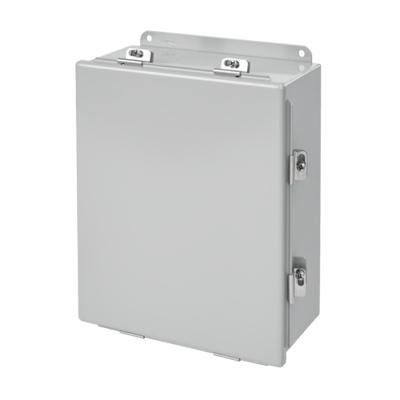

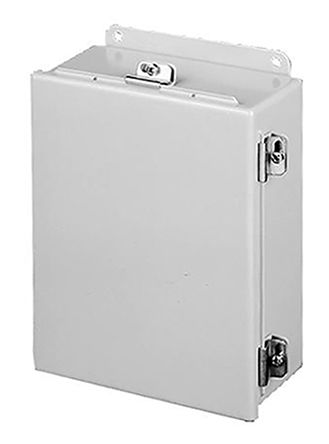

Hoffman A1614CHNF, J Box, Hinged Cover, Type 4, 16.00 , Steel/Gray A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications. Features: 16 or 14 gauge steel (see table) Seams continuously welded and ground smooth Stainless steel clamps on three sides of door Continuous hinge Stainless steel hinge pin Oil-resistant gasket Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger Bonding provision on door External wall-mounting brackets Industry Standards: UL 50, 50E Listed; Type 4, 12, 13; File No. E27567 cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E27567 UL 508A Listed; Type 4, 12, 13; File No. E61997 cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997 NEMA/EEMAC Type 4, 12, 13 CSA, File No. 42184: Type 4 and 12 IEC 60529, IP66 Bulletin Number: A51NF Material: Mild Steel Model Code: 55760 Ship Wt. Std. Pkg. (lbs): 21.14 Interchangeable: False IP Rating: IP66 UL Listed: 50, 50E 16 or 14 gauge steel Seams continuously welded and ground smooth Stainless steel screw-down clamps on three sides of door Continuous hinge Stainless steel hinge pin Oil-resistant gasket Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger Bonding provision on door External wall-mounting brackets for easy installation Height (A) in.: 16 Width (B) in.: 14 Depth (C) in.: 6 K in.: 0.56 F in.: 5.53 Panel Size D x E in.: 14.75 x 12.88 Gauge: 14 J in.: 5.62 M in.: 3.50 N in.: 1.50 Conductive Panel: A16P14G V in.: 0.25 T in.: 13.00 Overall L x W in.: 17.50 x 14.94 Mounting G x H in.: 16.75 x 12.00 Y in.: 0.62 Panel: A16P14 A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications. Catalog numbers ending in “S’’ are hinged on short side. Purchase panels

Part Number: 783510557607 <br> Part: Hoffman A1614CHNF Junction Box, NEMA 4, Continuous Hinge, 16" x 14" x 6" <br> Junction Box, Type 4, Hinged Cover, Size/Dims: 16" x 14" x 6", Material/Finish: Steel/Gray <br> Product Height:16 in <br> Material:Mild Steel, Steel <br> IP/NEMA Rating:IP66, 4 <br> Type:Hinged Cover, Junction Box <br> Product Width:14 in <br> Product Depth:6 in <br> Also known as: 783510557607, pull box, junction box, nema 12, nema 12 junction box, continuous hinge pull box, continuous hinge, enclosure, HOFA1614CHNF, Hoffman, A1614CHNF, Continuous Hinge - Type 4, Junction Boxes, Enclosures - Industrial Type, Boxes, Enclosures <br> Equivalent to: <ul><li>Hoffman</li><li>A1614CHNF</li><li>01783510557606</li><li>Hoffman</li><li>A1614CHNF</li><li>783510557607</li></ul>

Cover features screw-down clamp latches for a reliable seal. Order interior panel separately.<br /><br /> Item - Electrical Enclosure: Enclosure<br /> Enclosure NEMA Rating: 12,13,4<br /> Metallic / Non-Metallic: Metallic<br /> Material of Enclosure: Carbon Steel<br /> Nominal Enclosure Depth: 6"<br /> Nominal Enclosure Height: 16"<br /> Nominal Enclosure Width: 14"<br /> Enclosure Cover Type: Hinged<br /> Solid / Clear Cover: Solid<br /> Closure Method: Quick Release Latch<br /> Knockouts: No<br /> Finish: ANSI 61 Polyester Powder<br /> Color: Gray<br /> Depth: 6.00"<br /> Enclosure Cover Features: Quick Release Latch<br /> Features: External-Wall Mounting Bracket<br /> Gasket: Neoprene<br /> Height: 16.00"<br /> Interior Panel: 32FR69<br /> IP Rating: 66<br /> Metal Gauge: 14/16<br /> Mounting: Wall<br /> Series: A51NF<br /> Standards: UL Listed, CSA Certified, IEC, cUL<br /> Width: 14.00"<br />

Enclosure NEMA Rating 4, 12, 13, Material of Enclosure Carbon Steel, 14 In., Hinged Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Quick Release Latch, Finish ANSI 61 Polyester Powder, Color Gray, Depth 6.00 In., Enclosure Cover Features Quick Release Latch, Features External-Wall Mounting Bracket, Neoprene Gasket, Height 16.00 In., Interior Panel 32FR69, IP Rating 66, Metal Gauge 14/16, Wall Mounting, Series A51NF, Standards UL Listed, CSA Certified, IEC, cUL, Width 14.00 In.
