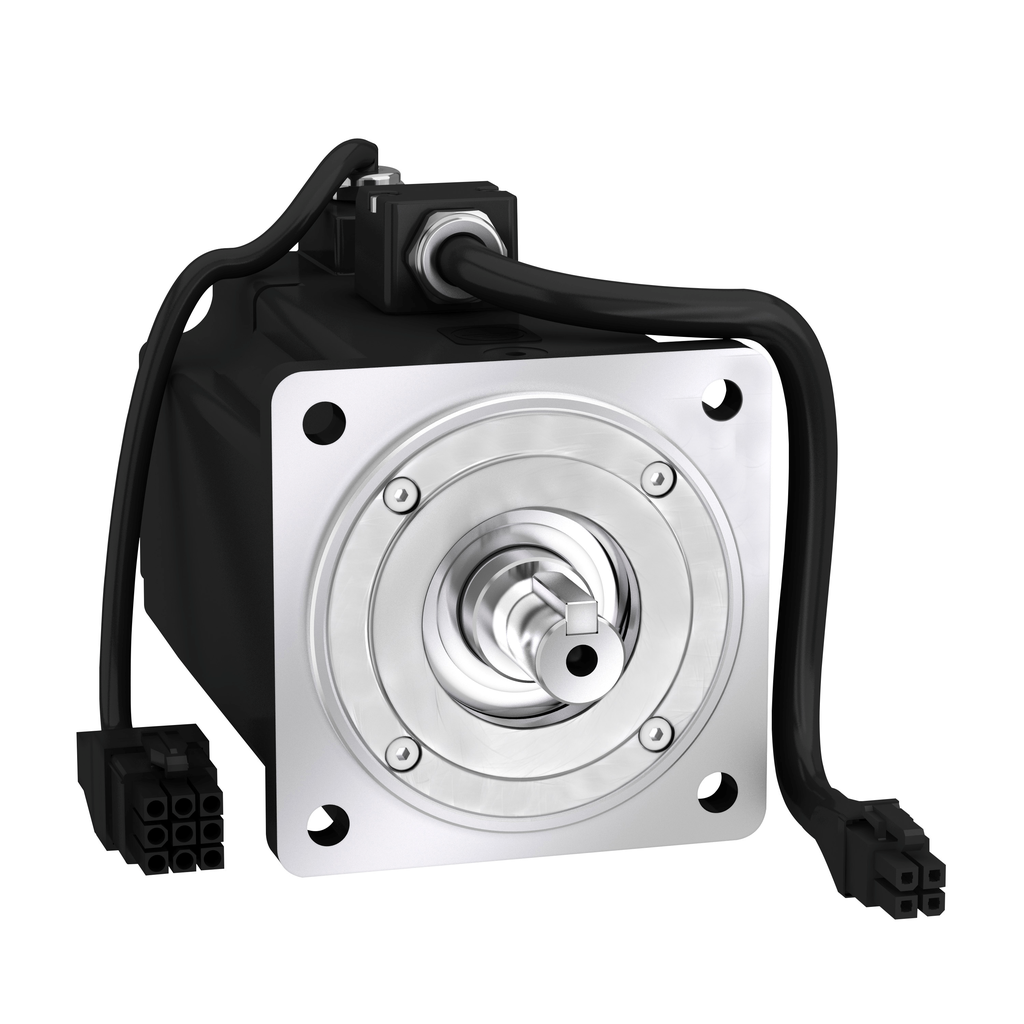

servo motor BCH, 80mm, 750W, w oil seal, w key, brake, leads con | Mayer Electric

SQUARE D . SQDBCH2LF0733CF5C

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00servo motor
Attribute01Lexium 28
Attribute02BCH2
Attribute0390 mm
Attribute044.29 A
Attribute05750 W
Attribute065000 rpm
Attribute07LXM26D servo drive 0.75 kW, 220 V, single phase || LXM26D servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
Attribute084.07 ms 20 ?C
Attribute092.5 N.m built-in
Attribute10332 N 3000 rpm
Attribute11free lead
Attribute12asian standard flange
Attribute132
Attribute141.24 kg.cm?
Attribute1536 V/krpm 20 ?C
Attribute16115 N
Attribute17, Attribute324 mm
Attribute18with
Attribute1935 mm
Attribute2010.2 W
Attribute21single phase || three phase
Attribute2213.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V
Attribute23178 mm
Attribute243.6 kg
Attribute2570 mm
Attribute266.1 mH 20 ?C
Attribute2780 mm
Attribute28220 V
Attribute29750 W LXM26D 4.5 A, 220 V, single phase || 750 W LXM26D 4.5 A, 220 V, three phase || 750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase
Attribute307.16 N.m LXM26D 4.5 A, 220 V, single phase || 7.16 N.m LXM26D 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
Attribute314
Attribute3319 mm
Attribute346 mm
Attribute356.6 mm
Attribute36natural convection
Attribute37keyed
Attribute383000 rpm LXM26D 4.5 A, 220 V, single phase || 3000 rpm LXM26D 4.5 A, 220 V, three phase || 3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase
Attribute3920 bits single turn absolute encoder
Attribute401.5 Ohm 20 ?C
Attribute414.01 A
Attribute42, Attribute442.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Attribute430.6 N.m/A 20 ?C
Attribute45, Attribute46, Attribute49, Attribute52Yes
Attribute47ENVPEP1504002EN
Attribute48Green Premium product
Attribute50Free of Substances of Very High Concern above the threshold
Attribute51Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute53The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute54X
Attribute55ENVEOLI1504002EN
Attribute56Pro-active compliance (Product out of EU RoHS legal scope)
Attribute570-40 ?C
Attribute58IP50 IM V3 || IP65 IM B5, IM V1
AttributeKey00Product Or Component Type
AttributeKey01Range Compatibility
AttributeKey02Device Short Name
AttributeKey03Circle Diameter Of The Mounting Holes
AttributeKey04Maximum Permanent Current
AttributeKey05Continuous Power
AttributeKey06Maximum Mechanical Speed
AttributeKey07Product Compatibility
AttributeKey08Stator Electrical Time Constant
AttributeKey09Holding Torque
AttributeKey10Maximum Radial Force Fr
AttributeKey11Electrical Connection
AttributeKey12Mounting Support
AttributeKey13Number Of Motor Stacks
AttributeKey14Rotor Inertia
AttributeKey15Back Emf Constant
AttributeKey16Maximum Axial Force Fa
AttributeKey17, height_AttribCentring Collar Depth
AttributeKey18Holding Brake
AttributeKey19Shaft Length
AttributeKey20Brake Pull-In Power
AttributeKey21Phase
AttributeKey22Maximum Current Irms
AttributeKey23, length_AttribLength
AttributeKey24, Weight_AttribNet Weight
AttributeKey25Centring Collar Diameter
AttributeKey26Stator Inductance
AttributeKey27Motor Flange Size
AttributeKey28[Us] Rated Supply Voltage
AttributeKey29Nominal Output Power
AttributeKey30Peak Stall Torque
AttributeKey31Number Of Mounting Holes
AttributeKey32Distance Shaft Shoulder-Flange
AttributeKey33Shaft Diameter
AttributeKey34, width_AttribKey Width
AttributeKey35Mounting Holes Diameter
AttributeKey36Type Of Cooling
AttributeKey37Shaft End
AttributeKey38Nominal Speed
AttributeKey39Feedback Type
AttributeKey40Stator Resistance
AttributeKey41Continuous Stall Current
AttributeKey42Nominal Torque
AttributeKey43Torque Constant
AttributeKey44Continuous Stall Torque
AttributeKey45Rohs Exemption Information
AttributeKey46Mercury Free
AttributeKey47Environmental Disclosure
AttributeKey48Sustainable Offer Status
AttributeKey49Pvc Free
AttributeKey50Reach Regulation
AttributeKey51California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey52Reach Free Of Svhc
AttributeKey53Weee
AttributeKey54China Rohs Regulation
AttributeKey55Circularity Profile
AttributeKey56Eu Rohs Directive
AttributeKey57Ambient Air Temperature For Operation
AttributeKey58Ip Degree Of Protection
DimensionUnitmm
Extra Product Nameservo motor BCH, 80mm, 750W, w oil seal, w key, brake, leads con | Mayer Electric
UPC3606480733871
Weight3.6
WeightUnitkg
height4.0
jsonUrlData/Product/SQUARE-D-servo-motor-BCH-80mm-750W-w-oil-seal-w-key-brake-leads-con-3606480733871
jsonUrlData26c4f6d34-dcec-452e-b487-aeea0054d09c
length178.0
moq, multiple, tierMinQty11
MPN, SKUSQDBCH2LF0733CF5C
qtyInStock0
tierPrice11178.72
width6.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDBCH2LF0733CF5C111 @ $1178.72
