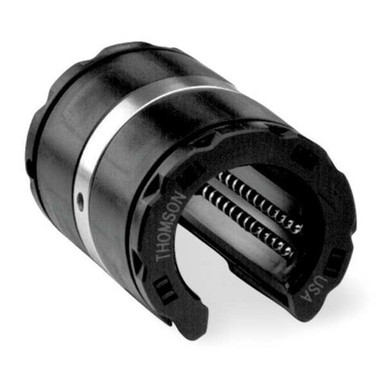

Thomson Linear SSEM20OPNWW Linear Bearing, Ball Bushing only, Super Smart, 20 mm, Open, Self-aligning, Adjustable, Integral Wiper both ends; Use with 20 mm Diameter Class MM (h6) Shaft in continuously supported applications
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 1836637 | 2 | 2 | 1 @ $62.56 | |
| cbtcompany.com | SSEM20OPNWW | 1 | 1 | 1 @ $80.44 | |
 simsupply.com | ZO-G2224652 | 1 | 22 | 1 | 1 @ $99.82 |
 Zoro | G2224652 | 1 | 12 | 1 | 1 @ $78.29 |
| Misumi USA | SSEM20OPNWW | 1 | 1 | ||
| Applied Industrial | 101197533 | 1 | 1 | ||
| TOM SSEM20OPNWW | 1 | -2 | 1 | 1 @ $0.00 | |
| AmazonSC | B00BJDA5CU | 1 | 1 | ||
| motionindustries.com | 00002065 | 1 | -2 | 1 | 1 @ $101.56 |
 Purvis | SSEM20OPNWW | 1 | -2 | 1 | 1 @ $80.44 |
| sustainablesupply.com | C1674108 | 1 | -2 | 1 | 1 @ $89.15 |
 Grainger | 2LFA4 | 1 | 25 | 1 | 1 @ $62.25 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Ball Bushing, Bore Dia 20 mm
Brand: Thomson
'Ball Bushing, Open, Bore Dia 20 mm, Inside Dia Tolerance + .013, Outside Dia 32 mm, Required Housing Bore Dia 32 mm, Slot Width 10.00 mm, Slot Angle (Degrees) 50, Retention Hole Dia 3 mm, Retention Hole Location 0 mm from Center Line, Between Grooves 31.20 mm, Length 45 mm, Load Capacity 4000 N, Temp Range 0 - 185 F, Delrin Material, For Use With Thomson Shafting'
Details
- <b>Price For:</b> Each <b>Self-Alignment</b>: Yes <b>Accelerated Speed</b>: 150 Milimeters/Second <b>Temp. Range (F)</b>: 0 - 185 <b>Material</b>: Delrin <b>Item</b>: Ball Bushing Bearing <b>Steady State Speed</b>: 3 Milimeters/Second <b>Dimension F</b>: 3mm <b>Dynamic Load Capacity (N)</b>: 4000 <b>Dimension C1</b>: 31.20mm <b>Required Housing Bore Dia. (mm)</b>: 32 <b>Dimension T</b>: 20.00 <b>Dimension C</b>: 45.00 <b>Dimension G</b>: 0 mm from Center Line
- <b>Type</b>: Open <b>Inside Dia. Tolerance</b>: + .013 <b>Slot Width (mm)</b>: 10.00 <b>Slot Angle (Degrees)</b>: 50 <b>Length (mm)</b>: 45 <b>Load Capacity</b>: 4000 <b>Outside Dia.</b>: 32mm <b>Bore Dia.</b>: 20mm <b>Retention Hole Location</b>: 0mm desde la Lnea Central <b>Retention Hole Dia. (mm)</b>: 3mm <b>Between Grooves (mm)</b>: 31.20mm <b>Country of Origin (subject to change)</b>: Mexico
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | HARDWARE_BEARING |
| Model | SSEM20OPNWW |
| Part number | SSEM20OPNWW |
| Items per pack | 1 |
| Label | THOMSON |
| Manufacturer | THOMSON |
Catalog
| Feature | <b>Price For:</b> Each <b>Self-Alignment</b>: Yes <b>Accelerated Speed</b>: 150 Milimeters/Second <b>Temp. Range (F)</b>: 0 - 185 <b>Material</b>: Delrin <b>Item</b>: Ball Bushing Bearing <b>Steady State Speed</b>: 3 Milimeters/Second <b>Dimension F</b>: 3mm <b>Dynamic Load Capacity (N)</b>: 4000 <b>Dimension C1</b>: 31.20mm <b>Required Housing Bore Dia. (mm)</b>: 32 <b>Dimension T</b>: 20.00 <b>Dimension C</b>: 45.00 <b>Dimension G</b>: 0 mm from Center Line |
|---|---|
| Category | Industrial & Scientific |
| MPN | SSEM20OPNWW |
| UPC | 94704454979 |
| EAN | 94704454979 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | THOMSON |
Thomson SSEM20OPNWW, Ball Bushing Bearing, Super Smart, Open, for continuously supported applications, self-aligning, Seals at both ends; use with 20 mm Diameter Shaft
Brand: THOMSON
Details
- The Super Smart Ball Bushing Bearing is a major technology advancement, offering universal self-alignment, with 2X the load capacity or 8X the travel life of our Super Ball Bushing bearing
- This patented product provides smooth, quiet, low drag linear movement at 6x the load capacity or 216 x the L10 travel life of a conventional steel linear ball bushing bearing
- To minimize installation time and cost, the Super Smart Ball Bushing bearing can be ordered factory-installed in an industry standard single or twin pillow block
- Its unique design with the steel band enables the bearing to preserve it’s ID fit-up and self-aligning capability over extended use
- Universal self-alignment minimizes housing bore and shaft deflection; optimizes load distribution; Installation time and cost is minimized while bearing performance and life is maximized
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | BEARINGS_AND_BUSHINGS |
| Model | SSEM20OPNWW |
| Part number | SSEM20OPNWW |
| Items per pack | 1 |
| Label | Thomson |
| Manufacturer | Thomson |
Catalog
| Feature | The Super Smart Ball Bushing Bearing is a major technology advancement, offering universal self-alignment, with 2X the load capacity or 8X the travel life of our Super Ball Bushing bearing |
|---|---|
| Category | Industrial & Scientific |
| MPN | SSEM20OPNWW |
| UPC | 662486267515 |
| EAN | 662486267515 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | Thomson |
