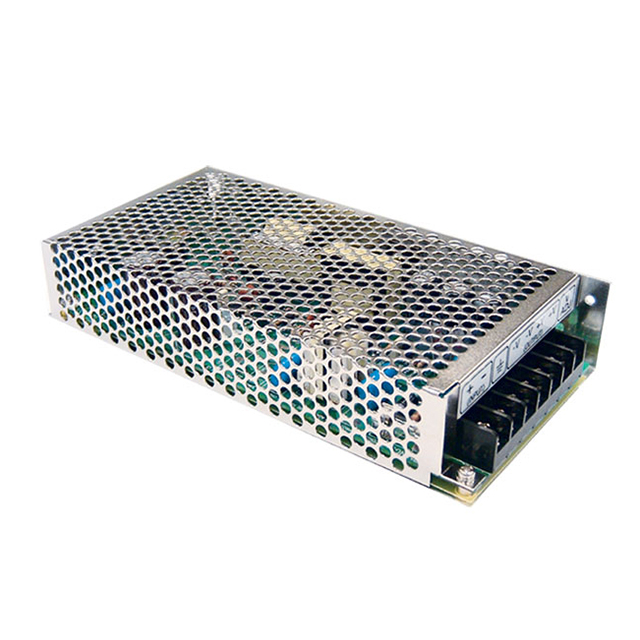

Mean Well Dc-Dc Converter, 5V, 20A - SD-100B-5

DC-DC CONVERTER, 5V, 20A; No. of Outputs:1 Output; Output Power Max:100W; Output Voltage - Output 1:5V; Output Current - Output 1:20A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Output RoHS Compliant: Yes

<b>Features</b><br>2:1 wide input range<br>1500VAC I/O isolation<br>Cooling by free air convection<br>Protections: Short circuit / Over load / Over voltage<br>Built-in EMI filter, low ripple noise<br>100% full load burn-in test<br>Low cost, high reliability<br>2 years warranty

<p><b>Features:</b></p> <p>2:1 wide input range</p> <p>Protections:Short circuit / Overload / Over voltage</p> <p>1500VAC I/O isolation</p> <p>Built-in EMI filter ,low ripple noise</p> <p>Low cost</p> <p>High reliability</p> <p>2 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:A: 9.5~18VDC; B: 19~36VDC ;C: 36~72VDC ; D: 72~144VDC or 85~132VAC</p> <p>AC inrush current (Typ.): D: 18A~96VDC</p> <p>DC adjustment range:5V: 4.5~5.5VDC, 12V: 11~16VDC, 24V: 23~30VDC</p> <p>Over voltage protection:5V: 5.75~6.75V/10% load, 12V: 16.8~20V/10% load, 24V(A): 31.5~37.5V/5% load, 24V(B,C,D): 31.5~37.5V/10% load , Protection type :Hiccup mode, recovers automatically after fault condition removed</p> <p>Overload protection: 105~135% rated output power , Protection type: Hiccup mode, recovers automatically after fault condition removed</p> <p>Withstand voltage:I/P-O/P: 1.5KVAC ,I/P-F/G: 1.5KVAC ,O/P-F/G: 0.5KVAC</p> <p>Working temperature: -15~ +60ºC(SD-100A),-10~ +60ºC(SD-100B/C/D)(Refer to "Derating Curve")</p> <p>Safety standards:IEC60950-1 CB approved by TUV(for D type only), EAC TP TC 004 approved</p> <p>EMC standards: Compliance to EN55032 (CISPR32) Class B, Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A ,EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):199x 98x 38</p>
