Order CRF2-WR01T-096 by Mercoid Series CRF2 Capacitive Level Transmitter - US Mega Store

Mercoid . CRF2-WR01T-096

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMercoid
Attribute00, Attribute15Liquids, powders, and bulk materials compatible with wetted materials
Attribute01, Attribute16Standard: rod/cable: FEP; connection: 316 SS
Attribute02, Attribute170 to 2000 pF
Attribute03, Attribute180.15 pF
Attribute04, Attribute198 pF
Attribute05, Attribute20100 psi (6.9 bar)
Attribute06, Attribute2112 to 35 VDC
Attribute07, Attribute224 to 20 mA
Attribute08, Attribute230.5 seconds
Attribute09, Attribute24Screw terminal
Attribute10, Attribute251/2" NPT female
Attribute11, Attribute26Standard: 3/4" NPT male
Attribute12, Attribute27NEMA 4X (IP66) weather-tight/corrosion resistant
Attribute13, Attribute28Zero, Span, 4 mA, 20 mA
Attribute14, Attribute29Vertical
AttributeKey00, AttributeKey15Service
AttributeKey01, AttributeKey16Wetted Materials
AttributeKey02, AttributeKey17Capacitance Range
AttributeKey03, AttributeKey18Sensitivity
AttributeKey04, AttributeKey19Minimum Span
AttributeKey05, AttributeKey20Pressure Limit
AttributeKey06, AttributeKey21Power Requirements
AttributeKey07, AttributeKey22Output Signal
AttributeKey08, AttributeKey23Response Time
AttributeKey09, AttributeKey24Electrical Connection
AttributeKey10, AttributeKey25Conduit Connection
AttributeKey11, AttributeKey26Process Connection
AttributeKey12, AttributeKey27Enclosure Rating
AttributeKey13, AttributeKey28Calibration
AttributeKey14, AttributeKey29Mounting Orientation
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Level
CategoryL4Mercoid CRF2-WR01T-096
ConditionNEW
Extra Product NameOrder CRF2-WR01T-096 by Mercoid Series CRF2 Capacitive Level Transmitter - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUCRF2-WR01T-096
qtyInStockContact Us

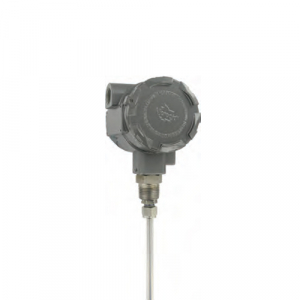

snippet<p><strong>Series CRF2 Capacitive Level Transmitter, Weatherproof, Rod Probe Type, 3/4" Male NPT, 96" Insertion Length </strong> </p> <p>Powder, Bulk or Liquids </p> <p>The Series CRF2 is a level transmitter providing a two-wire 4 to 20 mA output to indicate level of liquids, powders and bulk materials. State of the art sensing technology in the CRF2, using impulse RF admittance measurement provides excellent accuracy and stability. The CRF2 senses capacitance changes resulting from the height of the material in the tank between the probe and the tank wall. In non-metallic tanks or tanks that do not have the wall parallel to the probe a ground reference must be used. </p> <p>The CRF2 comes with either a rigid or flexible probe depending on application installation need and probe length required. Featured in the CRF2 is easy push button calibration of zero and span. Custom order the CRF2 to any length probe that you need for your application. FEP covered probe is ideal for use with corrosive media. This technology also provides immunity to external RF sources like walkie-talkies and cell phones as well as minimal interference with radio communication or other electronic systems. </p>
tierPrice11013

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCRF2-WR01T-0961Contact Us11 @ $1013.00
MegadepotCRF2-WR01T-096111 @ $976.00
