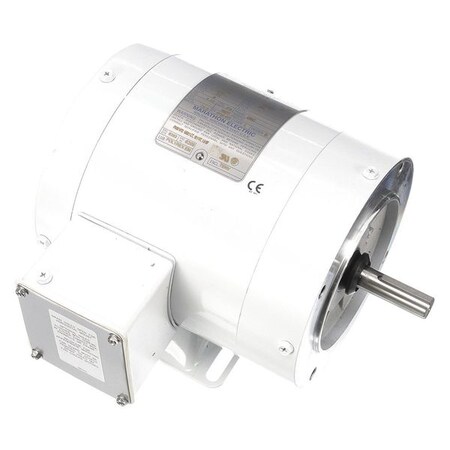

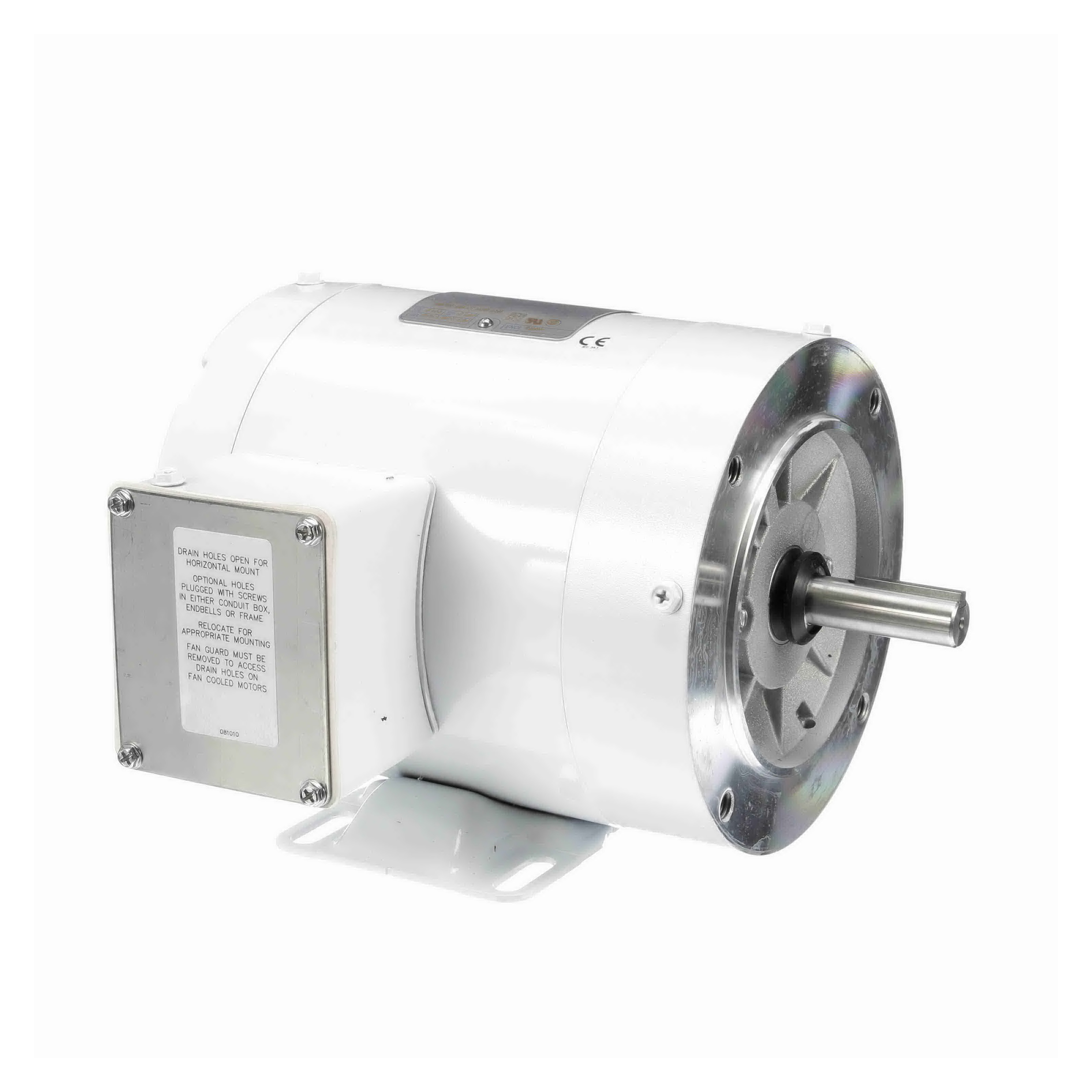

Washdown Motor 3-Phase 1/2 HP 1725 Nameplate RPM Voltage 230/460 Phase 3 56C Frame Totally Enclosed Nonventilated Full Load Amps 0.72 60 Hz All Angle Motor Mounting Position Motor Thermal Protection None F Ins. Class Motor Service Factor 1.15 Ball Motor Bearings Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 10-1/16 In. Shaft Dia 5/8 In. Shaft Length 2-1/16 In. Body Dia 6-1/2 In. Length Less Shaft 8 In. Continuous Duty

<br /><br /> Item: Washdown Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Nonventilated<br /> HP: 1/2<br /> Nameplate RPM: 1725<br /> Frame: 56C<br /> NEMA Design: B<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 575<br /> Full Load Amps: 0.72<br /> Phase: 3<br /> Hz: 60<br /> Motor Mounting Position: All Angle<br /> Motor Mounting Type: Face<br /> Motor Bearings: Ball<br /> Motor Frame Material: Epoxy Coated Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 2-1/16"<br /> Motor Shaft Design: Keyed<br /> Body Dia.: 6-1/2"<br /> Length Less Shaft: 8"<br /> Overall Length: 10-1/16"<br /> Ins. Class: F<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Shaft Material: 303 Stainless Steel<br /> Drain Plugs: (4) Each End and (2) In Conduit Box<br /> Endshields: Aluminum<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 78.5%<br /> Application: Washguard<br /> Includes: Shaft Seals, V-Rings, Gaskets, SS Shaft, Hardware, and Nameplate<br /> Standards: UL Recognized (E49747), CSA Certified (LR2025), CE<br />
