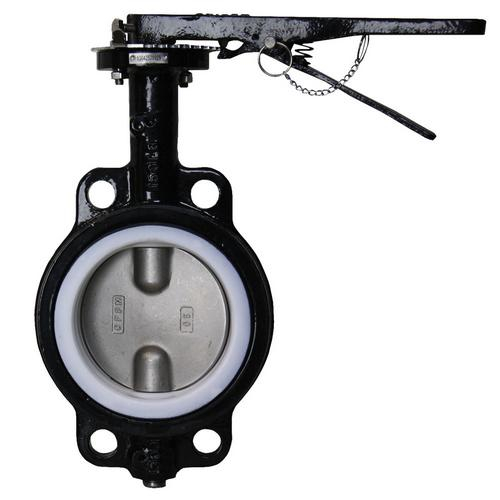

Order WE20-GHD00 by W.E. Anderson Butterfly Valve, 8in Hand Operated - US Mega Store

W.E. Anderson . WE20-GHD00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute09Compatible liquids, gases, and steam
Attribute01, Attribute102-way, wafer or lug butterfly.
Attribute02, Attribute118
Attribute03, Attribute12Lug and wafer pattern designed for flanges that are ANSI Class 125 (B16.1) and ANSI Class 150 (B16.5) dimension
Attribute04, Attribute13225 psi (15.5 bar)
Attribute05, Attribute14Body Material: Ductile iron; Disc: 316 SS; Seat: EPDM or PTFE; O-ring: EPDM; Stem: 410 SS
Attribute06, Attribute15Disc: EPDM: -50 to 250°F (-46 to 121°C); PTFE: 0 to 300°F (-18 to 149°C)
Attribute07, Attribute16Nylatron
Attribute08, Attribute17manual gear
AttributeKey00, AttributeKey09Service
AttributeKey01, AttributeKey10Body
AttributeKey02, AttributeKey11Line Sizes
AttributeKey03, AttributeKey12End Connections
AttributeKey04, AttributeKey13Pressure Limits
AttributeKey05, AttributeKey14Wetted Materials
AttributeKey06, AttributeKey15Temperature Limits
AttributeKey07, AttributeKey16Bearings
AttributeKey08, AttributeKey17Operator
CategoryL1Plumbing
CategoryL2Valves
CategoryL3Butterfly
CategoryL4W.E. Anderson WE20-GHD00
ConditionNEW
Extra Product NameOrder WE20-GHD00 by W.E. Anderson Butterfly Valve, 8in Hand Operated - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWE20-GHD00
qtyInStockContact Us
snippet<p><strong>Butterfly Valve, 8in Hand Operated </strong> </p> <p>The Series WE20 is offered in lug or wafer body styles and is equipped with a PTFE or EPDM liner. The most critical aspect of the Series WE20 Butterfly Valves is the cartridge seat design, which alleviates installation problems associated with common "dove tail design" seats. Valve torques are lower and more consistent as the seat dynamics are not dependent on being coupled between two flanges. Precision machining of the disc and body allow the cartridge design to maintain a tighter disc to seat tolerance, providing a perfect low torque seal each and every time the valve is cycled. The seat to disc seal is independent of flange support and capable of full rated dead end service. Actuators are directly mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication. </p>
tierPrice1834.94

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comWE20-GHD001Contact Us11 @ $834.94
heavydutydepot.comWE20-GHD00111 @ $834.94
MegadepotWE20-GHD0011
