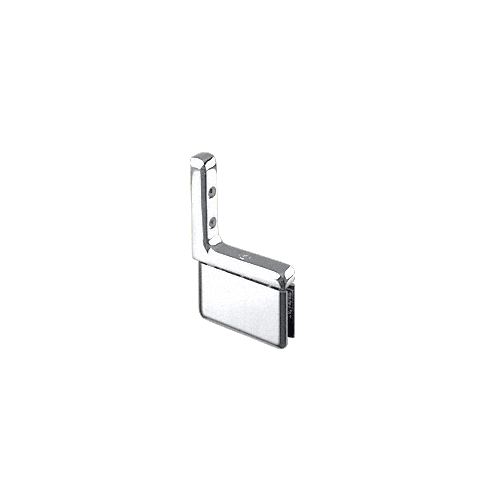

CRL ALUM-PPH03BN-VCP-1 Brushed Nickel Prima 03 Series Wall Mount Hinge

CRL-USALUM . ALUM-PPH03BN-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute002 lb (907g)
Attribute01, Attribute152
Attribute02, Attribute173-5/8
Attribute03, Attribute11Brushed Nickel
Attribute04Field Reversible
Attribute05Beveled
Attribute0631
Attribute07Wall Mount
Attribute08, Attribute13, Attribute16, Weight100
Attribute095/16 To 3/8
Attribute10Brass
Attribute12Yes
Attribute14Wall mount
AttributeKey00Shipping Weight
AttributeKey01Height
AttributeKey02Width
AttributeKey03Finish
AttributeKey04Handing
AttributeKey05Edge Profile
AttributeKey06Maximum Door Width
AttributeKey07Mounting Type
AttributeKey08, Weight_AttribMaximum Door Weight - 2 Hinges (Pounds)
AttributeKey09Glazing Thickness
AttributeKey10Material
AttributeKey11Finish/Color
AttributeKey12Self-Centering
AttributeKey13Maximum Door Weight
AttributeKey14Mounting Style
AttributeKey15Height (Inches)
AttributeKey16Max Dr Weight - 2 Hinges (Lbs)
AttributeKey17Width (Inches)
CategoryIdL3Wall Mount Offset Back Plate Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameCRL ALUM-PPH03BN-VCP-1 Brushed Nickel Prima 03 Series Wall Mount Hinge
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-PPH03BN-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/><b>CRL Prima Series Pivot Hinges</b> are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.<br/><b>Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series):</b> Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.<br/><b>Using two hinges</b> with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass<br/><b>Special Features:</b> Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.<br/><b>Construction:</b> Solid Brass<br/><b>Hinge Swings:</b> Full Rotation<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position.<br/><b>Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).</b><br/><b>Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions<br/><b>This hinge series is patented (Patent No. 5,297,313).</b><br/> Custom finishes are available on request. Contact the DK Hardware Sales Department.<br/><b>Product Warning:</b><br/><b>CRL Shower Door Hinges</b> are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>.</p>
tierPrice1107.12

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-PPH03BN-VCP-1111 @ $107.12
