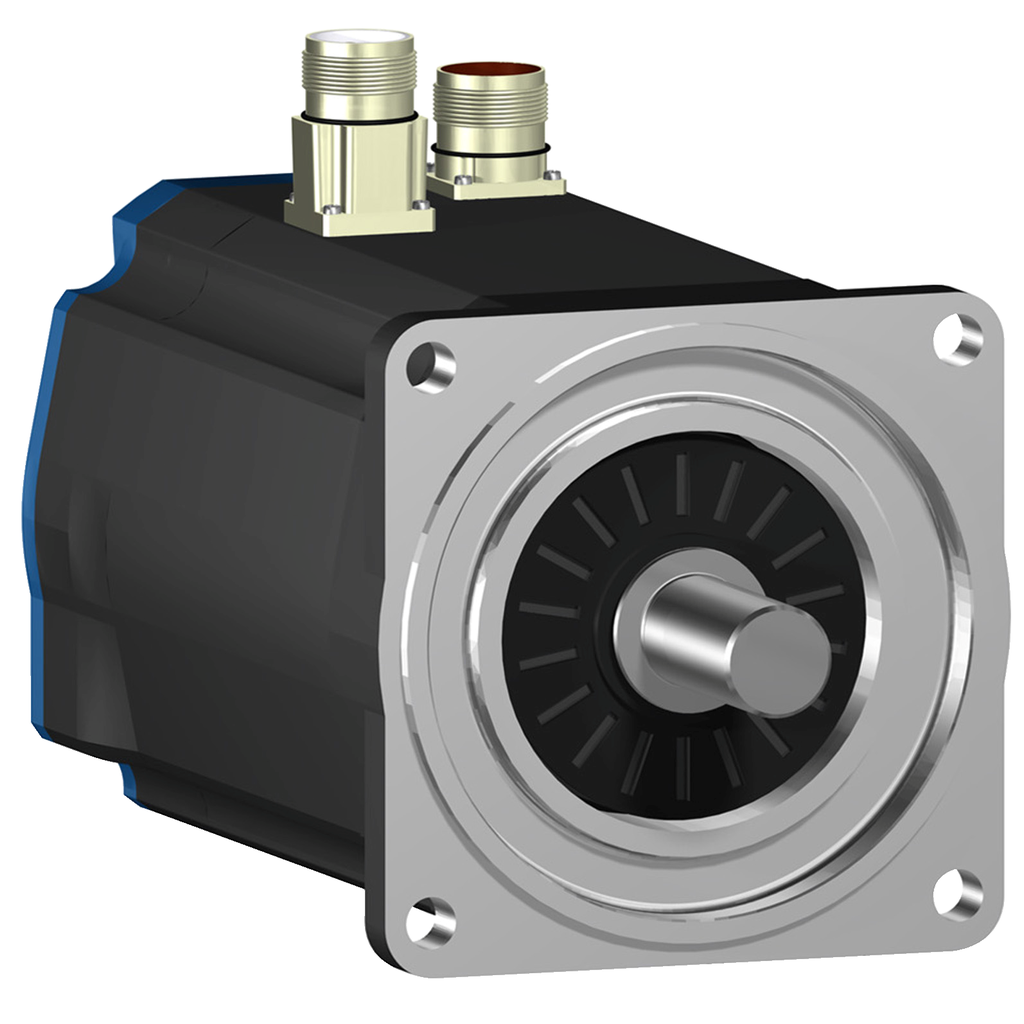

AC servo motor BSH - 3.39 N.m - 4000 rpm - untapped shaft - without brake - IP50 | Mayer Electric

SQUARE D . SQDBSH1001T01A1A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute006000 rpm
Attribute01international standard flange
Attribute02without
Attribute03131072 points/turn
Attribute04servo motor
Attribute05700 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM05AD42M3X, 200...240 V, three phase || 900 W LXM05BD42M3X, 200...240 V, three phase || 900 W LXM05CD42M3X, 200...240 V, three phase || 900 W LXM32.D18M2 6 A, 230 V, single phase || 500 W LXM05AD28F1, 110...120 V, single phase || 500 W LXM05BD28F1, 110...120 V, single phase || 500 W LXM05CD28F1, 110...120 V, single phase || 900 W LXM05AD28M2, 200...240 V, single phase || 900 W LXM05BD28M2, 200...240 V, single phase || 900 W LXM05CD28M2, 200...240 V, single phase || 1150 W LXM15LD28M3, 230 V, three phase
Attribute066.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 8.5 N.m LXM05AD42M3X, 200...240 V, three phase || 8.5 N.m LXM05BD42M3X, 200...240 V, three phase || 8.5 N.m LXM05CD42M3X, 200...240 V, three phase || 8.5 N.m LXM05AD28F1, 110...120 V, single phase || 8.5 N.m LXM05AD28M2, 200...240 V, single phase || 8.5 N.m LXM05BD28F1, 110...120 V, single phase || 8.5 N.m LXM05BD28M2, 200...240 V, single phase || 8.5 N.m LXM05CD28F1, 110...120 V, single phase || 8.5 N.m LXM05CD28M2, 200...240 V, single phase || 7.5 N.m LXM32.D18M2 6 A, 230 V, single phase || 8.5 N.m LXM15LD28M3, 230 V, three phase
Attribute07LXM05AD28F1 110...120 V single phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase || LXM05AD28M2 200...240 V single phase || LXM05BD28F1 110...120 V single phase || LXM05BD28M2 200...240 V single phase || LXM05CD28F1 110...120 V single phase || LXM05CD28M2 200...240 V single phase || LXM32.D30M2 115 V single phase || LXM32.D18M2 230 V single phase || LXM05AD42M3X 200...240 V three phase
Attribute08IP50 standard
Attribute09untapped
Attribute102500 rpm LXM32.D30M2 10 A, 115 V, single phase || 1500 rpm LXM05BD28F1, 110...120 V, single phase || 1500 rpm LXM05CD28F1, 110...120 V, single phase || 4000 rpm LXM15LD28M3, 230 V, three phase || 3000 rpm LXM05AD28M2, 200...240 V, single phase || 3000 rpm LXM05BD28M2, 200...240 V, single phase || 3000 rpm LXM05CD28M2, 200...240 V, single phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase || 4000 rpm LXM32.D18M2 6 A, 230 V, single phase || 1500 rpm LXM05AD28F1, 110...120 V, single phase
Attribute11straight connectors
Attribute122.75 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.9 N.m LXM05AD42M3X, 200...240 V, three phase || 2.9 N.m LXM05BD42M3X, 200...240 V, three phase || 2.9 N.m LXM05CD42M3X, 200...240 V, three phase || 2.9 N.m LXM05AD28M2, 200...240 V, single phase || 2.9 N.m LXM05BD28M2, 200...240 V, single phase || 2.9 N.m LXM05CD28M2, 200...240 V, single phase || 3.16 N.m LXM05AD28F1, 110...120 V, single phase || 3.16 N.m LXM05BD28F1, 110...120 V, single phase || 3.16 N.m LXM05CD28F1, 110...120 V, single phase || 2.2 N.m LXM32.D18M2 6 A, 230 V, single phase || 2.75 N.m LXM15LD28M3, 230 V, three phase
Attribute13BSH
Attribute143.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 3.4 N.m LXM05CD28M2, 200...240 V, single phase || 3.4 N.m LXM05CD42M3X, 200...240 V, three phase || 2.7 N.m LXM32.D18M2 6 A, 230 V, single phase || 3.39 N.m LXM15LD28M3, 230 V, three phase || 3.4 N.m LXM05AD28F1, 110...120 V, single phase || 3.4 N.m LXM05AD28M2, 200...240 V, single phase || 3.4 N.m LXM05AD42M3X, 200...240 V, three phase || 3.4 N.m LXM05BD28F1, 110...120 V, single phase || 3.4 N.m LXM05BD28M2, 200...240 V, single phase || 3.4 N.m LXM05BD42M3X, 200...240 V, three phase || 3.4 N.m LXM05CD28F1, 110...120 V, single phase
Attribute1518 months
Attribute16115 mm
Attribute1725.1 A
Attribute181.6 W
Attribute198 kHz
Attribute204.6 ms 20 ?C
Attribute21530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm
Attribute22, moq, multiple, tierMinQty11
Attribute231.4 kg.cm?
Attribute248
Attribute2529 V/krpm 120 ?C
Attribute260.2 x Fr
Attribute273.5 mm
Attribute28without second shaft end
Attribute2940 mm
Attribute30three phase
Attribute31168.5 mm
Attribute3218 A LXM32.D18M2 230 V || 25.1 A LXM05CD28F1 || 25.1 A LXM05CD28M2 || 25.1 A LXM05CD42M3X || 15 A LXM32.D30M2 115 V || 23 A LXM15LD28M3 || 25.1 A LXM05AD28F1 || 25.1 A LXM05AD28M2 || 25.1 A LXM05AD42M3X || 25.1 A LXM05BD28F1 || 25.1 A LXM05BD28M2 || 25.1 A LXM05BD42M3X
Attribute334.2 kg
Attribute3495 mm
Attribute354 mH 20 ?C
Attribute36100 mm
Attribute37480 V
Attribute384
Attribute3919 mm
Attribute409 mm
Attribute41natural convection
Attribute42single turn SinCos Hiperface
Attribute430.87 Ohm 20 ?C
Attribute44Lexium 32 || Lexium 15 || Lexium 05
Attribute457.3 A
Attribute460.45 N.m/A 120 ?C
Attribute47, Attribute48, Attribute51Yes
Attribute49ENVPEP111049EN
Attribute50Green Premium product
Attribute52Reference contains Substances of Very High Concern above the threshold
Attribute53Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute54The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute55X
Attribute56Pro-active compliance (Product out of EU RoHS legal scope)
AttributeKey00Maximum Mechanical Speed
AttributeKey01Mounting Support
AttributeKey02Holding Brake
AttributeKey03Speed Feedback Resolution
AttributeKey04Product Or Component Type
AttributeKey05Nominal Output Power
AttributeKey06Peak Stall Torque
AttributeKey07Product Compatibility
AttributeKey08Ip Degree Of Protection
AttributeKey09Shaft End
AttributeKey10Nominal Speed
AttributeKey11Electrical Connection
AttributeKey12Nominal Torque
AttributeKey13Device Short Name
AttributeKey14Continuous Stall Torque
AttributeKey15Warranty
AttributeKey16, height_AttribCircle Diameter Of The Mounting Holes
AttributeKey17Maximum Permanent Current
AttributeKey18Continuous Power
AttributeKey19Switching Frequency
AttributeKey20Stator Electrical Time Constant
AttributeKey21Maximum Radial Force Fr
AttributeKey22Number Of Motor Stacks
AttributeKey23Rotor Inertia
AttributeKey24Number Of Motor Poles
AttributeKey25Back Emf Constant
AttributeKey26Maximum Axial Force Fa
AttributeKey27, width_AttribCentring Collar Depth
AttributeKey28Second Shaft
AttributeKey29Shaft Length
AttributeKey30Phase
AttributeKey31, length_AttribLength
AttributeKey32Maximum Current Irms
AttributeKey33, Weight_AttribNet Weight
AttributeKey34Centring Collar Diameter
AttributeKey35Stator Inductance
AttributeKey36Motor Flange Size
AttributeKey37[Us] Rated Supply Voltage
AttributeKey38Number Of Mounting Holes
AttributeKey39Shaft Diameter
AttributeKey40Mounting Holes Diameter
AttributeKey41Type Of Cooling
AttributeKey42Feedback Type
AttributeKey43Stator Resistance
AttributeKey44Range Compatibility
AttributeKey45Continuous Stall Current
AttributeKey46Torque Constant
AttributeKey47Rohs Exemption Information
AttributeKey48Mercury Free
AttributeKey49Environmental Disclosure
AttributeKey50Sustainable Offer Status
AttributeKey51Pvc Free
AttributeKey52Reach Regulation
AttributeKey53California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey54Weee
AttributeKey55China Rohs Regulation
AttributeKey56Eu Rohs Directive
DimensionUnitmm
Extra Product NameAC servo motor BSH - 3.39 N.m - 4000 rpm - untapped shaft - without brake - IP50 | Mayer Electric
UPC3389118138384
Weight4.2
WeightUnitkg
diameter, height115.0
jsonUrlData/Product/SQUARE-D-AC-servo-motor-BSH-3-39-N-m-4000-rpm-untapped-shaft-without-brake-IP50-3389118138384
jsonUrlData2d5240c8e-bea7-4c00-a2a3-aeea00552fa7
length168.5
MPN, SKUSQDBSH1001T01A1A
qtyInStock0
tierPrice12240.37
width3.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDBSH1001T01A1A111 @ $2240.37
