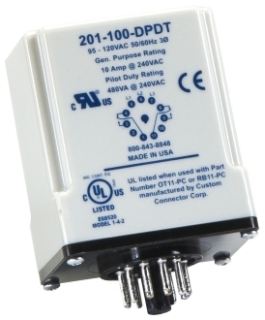

Littelfuse 3-Ph 11-Pin Plulg-In Vm / 95 -/ Box - 201-100-DPDT

201-100-DPDT - SymCom 3-Phase 11-Pin Plug-In Voltage Monitor 95-120V DPDT The Model 201-xxx-DPDT Family An 11-pin octal base plug-in voltage monitor designed to protect 3-phase motors regardless of size. The 201-100-DPDT is used on 95-120VAC, 50/60Hz motors and the 201-200-DPDT is used on 190-240VAC, 50/60Hz motors to prevent damage caused by incoming voltage problems. The units feature two isolated sets of contacts that are ideal for use with two control circuits with different voltages. The unique microcontroller-based voltage and phase-sensing circuit constantly monitors the voltages to detect harmful power line conditions When a harmful condition is detected, the MotorSaver's output relays are deactivated after a specified trip delay. The output relays reactivate after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions. This unit is also available with a shorter trip delay and faster restart delay. The 201-xxx-DPDT-60mS has a trip delay of 0.5 seconds and a restart delay of 60 milliseconds. Features : Low voltage protection Single-phase protection Reverse-phase protection Voltage unbalance protection Two isolated Form C relays (DPDT) Diagnostic LED 11-pin plug-in; DIN rail or surface mount Auxiliary Products: 11-pin octal socket P/N: OT11-PC NULL

Littelfuse Fuses 201-100-DPDT, New in Box! <br><br>Product comes with latest date code and version, standard one year factory warranty!<br><br> All products in stock are New In Box, Factory Sealed.<br> <br> We usually ship via FedEx or DHL, shipping time is 3-7 business days.
