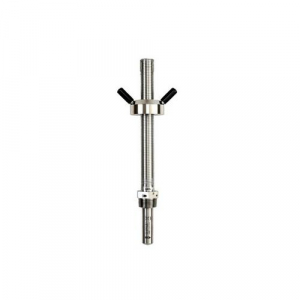

2552 Metal Magmeter Flow Sensor The Signet 2552 Metal Magmeter features all-stainless steel construction. The PVDF nosepiece and FPM O-rings are the only other wetted materials. The 2552 installs quickly into standard ISO 7-R 1¼ or ISO 7-R 1½ (1¼ in. to 1½ in. NPT) pipe outlets, and is adjustable to fit pipes from DN50 to DN2550 (2 to 102 in.). Two sensor lengths allow maximum flexibility to accommodate a variety of hardware configurations, including ball valves for hot-tap equipped with the frequency output, the 2552 is compatible with any Signet flow instrument, while the Digital (S3L) output enables multi-channel compatibility with the Signet 8900 Multi-Parameter Flow Controller. Select the blind 4 to 20 mA current output to interface directly with dataloggers, PLCs or telemetry systems. Key features include empty pipe detection, LED-assisted troubleshooting, and bi-directional span capability (in 4 to 20 mA models).The Signet 3-0250 USB to Digital (S3L) Configuration/Diagnostic Tool is available to customize every performance feature in the 2552 so that it can be adapted to the user's application requirements. Fields of Application: Municipal Water Distribution Process and Coolant Flow Chemical Processing Wastewater Mining Applications Water Process Flow HVAC Standards: CE FCC RoHS compliant China RoHS Advantages: NIST test certificate included Award-winning hot-tapable magnetic flow sensor up to DN2550 (102 in.) Operating range: 0.05 to 10 m/s (0.15 to 33 ft/s) Reliable operation in harsh environments Three output choices: frequency, digital (S3L), or 4 to 20 mA Patented Magmeter technology Repeatable: ±0.5% of reading @25ºC ISO or NPT Threads Notes Weight (lbs) 8.8
