Order 629C-13-CH-P2-E1-S3-3V by Dwyer 629C Transmitter 0-2 - US Mega Store

Dwyer . 629C-13-CH-P2-E1-S3-3V

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute20Compatible gases and liquids.
Attribute01, Attribute21316, 316L SS, Buna-N, silicone grease, PTFE, brass 360, copper, and reinforced copolymer
Attribute02, Attribute22±0.5% FS (includes linearity, hysteresis & repeatability)
Attribute03, Attribute23±1% FS/year
Attribute04, Attribute240 to 200 F
Attribute05, Attribute250 to 175 F
Attribute06, Attribute260 to 2 bar differential
Attribute07, Attribute27Avg 0.04%/ F (includes zero and span)
Attribute08, Attribute283-wire: 13 to 35 VDC or isolated 16 to 33 VAC (reverse polarity protected)
Attribute09, Attribute293-wire: Field selectable 0 to 5, 1 to 5, 0 to 10, or 2 to 10 VDC
Attribute10, Attribute30Push buttons inside conduit enclosure
Attribute11, Attribute31400 msec
Attribute12, Attribute32Voltage output: Minimum load resistance = 5 kΩ
Attribute13, Attribute3328 mA max.
Attribute14, Attribute34Removable terminal block
Attribute15, Attribute351/4" Female NPT
Attribute16, Attribute36Designed to meet NEMA 4X (IP66)
Attribute17, Attribute37Not position sensitive
Attribute18, Attribute3810.1 oz
Attribute19, Attribute39CE
AttributeKey00, AttributeKey20Service
AttributeKey01, AttributeKey21Wetted Materials
AttributeKey02, AttributeKey22Accuracy
AttributeKey03, AttributeKey23Stability
AttributeKey04, AttributeKey24Temperature Limits
AttributeKey05, AttributeKey25Compensated Temperature Limits
AttributeKey06, AttributeKey26Pressure Limits
AttributeKey07, AttributeKey27Thermal Effect
AttributeKey08, AttributeKey28Power Requirements
AttributeKey09, AttributeKey29Output Signal
AttributeKey10, AttributeKey30Zero and Span Adjustments
AttributeKey11, AttributeKey31Response Time
AttributeKey12, AttributeKey32Loop Resistance
AttributeKey13, AttributeKey33Current Consumption
AttributeKey14, AttributeKey34Electrical Connections
AttributeKey15, AttributeKey35Process Connections
AttributeKey16, AttributeKey36Enclosure Rating
AttributeKey17, AttributeKey37Mounting Orientation
AttributeKey18, AttributeKey38, Weight_AttribWeight
AttributeKey19, AttributeKey39Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Dwyer 629C-13-CH-P2-E1-S3-3V
ConditionNEW
Extra Product NameOrder 629C-13-CH-P2-E1-S3-3V by Dwyer 629C Transmitter 0-2 - US Mega Store
Weight10.1
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKU629C-13-CH-P2-E1-S3-3V
qtyInStockContact Us

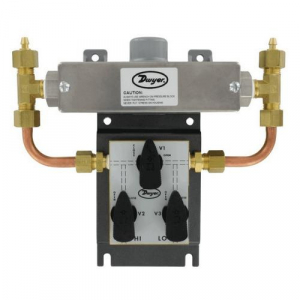

snippet<p><strong>Dwyer, 629C-13-CH-P2-E1-S3-3V, 629C Pressure Transmitter 0-2 bar & 3-Way Valve </strong> </p> <p>Wet/Wet Differential Pressure Transmitter (Process Connection - 1/4" Female NPT; Electrical Connection - Cable gland with 3' of prewired cable; Output Signal - 3-wire: Field selectable 0 to 5, 1 to 5, 0 to 10, or 2 to 10 VDC). </p> <p><strong>Features: </strong> </p> <ul><li>Versatile, high accuracy device for liquid or gas supports designs requiring more precise measurements in support of application. </li> <li>Minimum components provide excellent response and reliability. </li> <li>Zero control reduces installation and service time. </li> <li>Terminal block reduces wiring difficulties saving installation time. </li> <li>3-way valve manifold supports higher line pressures or simplifies removal of transmitter without interrupting process. </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Flow elements. </li> <li>Heat exchangers. </li> <li>Filters. </li> <li>Coils. </li> <li>Chiller. </li> <li>Pumps. </li> </ul> <p>The Series 629C Wet/Wet Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a field selectable voltage. Small internal volume and minimal moving parts result in exceptional response and reliability. The terminal block, as well as a zero adjustment button, are easily accessed under the top cover. The Series 629C Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction. </p> <p><strong>Wiring Diagram: </strong> </p> <ul><li>Voltage Output Connection. </li> </ul> <p> <img src="//usmegastore.com/assets_images/depiction/dwyer/Series_629C_1.jpg" style="width:65%" /> </p>
tierPrice1569

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com629C-13-CH-P2-E1-S3-3V1Contact Us11 @ $569.00
heavydutydepot.com629C-13-CH-P2-E1-S3-3V111 @ $569.00
Megadepot629C-13-CH-P2-E1-S3-3V11
