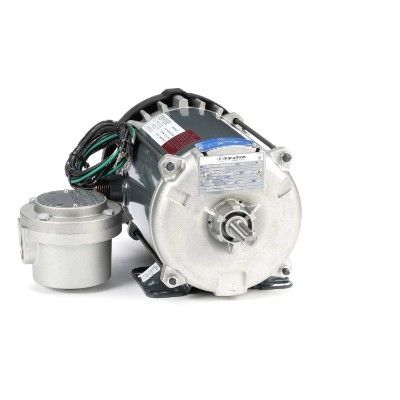

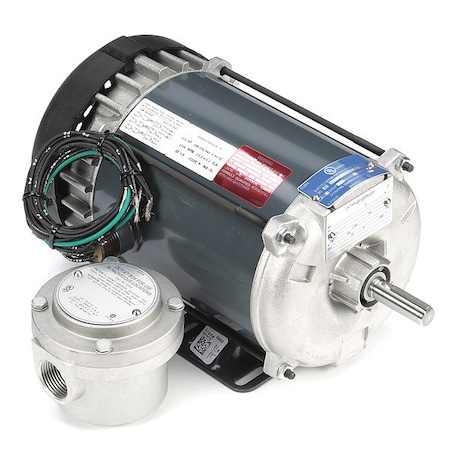

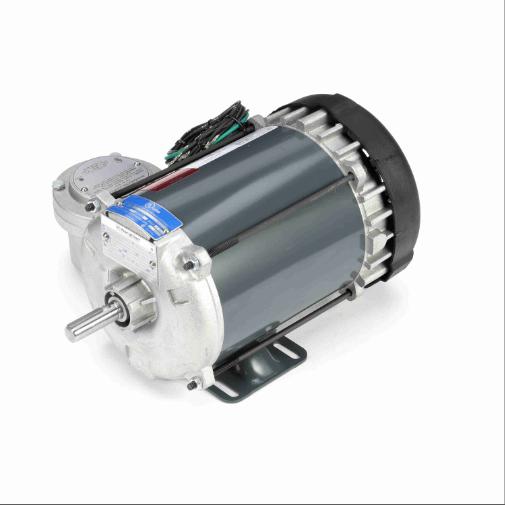

Marathon 056T17G5312, Explosion Proof Motor, 1/2 HP, 208-230/460 Volts, 1.2 Amps, 3 Phase, 60 Hz, 1725 RPM, EPFC Enclosure, 56 Frame, Rigid Base, Rolled Steel Frame, Catalog No: G649

'Hazardous Location Motor, 3-Phase, Hazardous Location, 1/2 HP, 1725 Nameplate RPM, 56 Frame, NEMA Design B, CW/CCW Motor Shaft Rotation, Voltage 208-230/460, Full Load Amps 2.3-2.4/1.2, Phase 3, 60 Hz, Rigid Base Motor Mounting Type, Ball Motor Bearings, Motor Frame Material Rolled Steel, Motor Thermal Protection Auto, Motor Service Factor 1.00, Hazardous Location Class 1 C,D / 2 F,G, Max. Ambient Temp. 40 Degrees C, Temp. Code T3B, Motor Shaft Design Keyed, Shaft Dia. 5/8 In.'

This 3-Phase Hazardous Location Motor is suitable for use in hazardous location applications.<br /><br /> Item: Hazardous Location Motor<br /> Motor Application: Hazardous Location<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Hazardous Location<br /> HP: 1/2<br /> Nameplate RPM: 1725<br /> Frame: 56<br /> NEMA Design: B<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 208-230/460<br /> Full Load Amps: 2.3-2.4/1.2<br /> Phase: 3<br /> Hz: 60<br /> Motor Mounting Type: Rigid Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: Auto<br /> Motor Service Factor: 1.00<br /> Hazardous Location Class: 1 C,D / 2 F,G<br /> Max. Ambient Temp.: 40 Degrees C<br /> Temp. Code: T3B<br /> Motor Shaft Design: Keyed<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 12"<br /> Overall Length: 13-7/8"<br /> Ins. Class: B<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Nominal Efficiency: 90.2%<br /> Motor Efficiency Group: Standard Efficient<br /> Includes: (12)-18" Leads. Through. 1" NPT Nipple<br /> Standards: UL Listed (E12044); CSA Certified (LR47504)<br />
