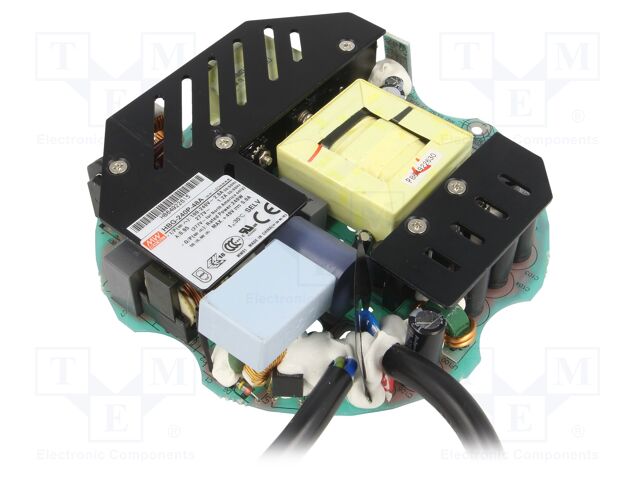

MEAN WELL HBG-240P-48A | Power supply: switched-mode; LED; 240W; 28.8?48VDC; 3000?5000mA

<b>Features</b><br>Constant current mode (HBG-60P/100P) Constant voltage+constant current modes (HBG-160P/240P)<br>Universal AC input(up to 305VAC) / Full range (up to 295VAC for HBG-60P)<br>High efficiency up to 93.5%<br>Class II power unit, no F.G. (HBG 60P<br>Class 2 power unit (HBG-60P)<br>Suitable for dry, damp, and wet location<br>Protections: Short circuit / Over temperature<br>Multiple models for HBG-100P/160P/240P A-Type: Constant current level can be adjusted through internal potentiometer B-Type: Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)<br>5 years warranty

<p><b>Features:</b></p> <p>Constant Voltage + Constant Current mode output</p> <p>Circular shape PCB type design</p> <p>Built-in active PFC function</p> <p>Function options: output adjustable via potentiometer; 3 in 1 dimming</p> <p>Typical lifetime > 50000 hours</p> <p>5 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:90~305VAC 127~431VDC(please refer to "STATIC CHARACTERISTIC" section</p> <p>AC inrush current (Typ.):COLD START 75A (twidth =680μs measured at 50% Ipeak) at 230VAC ;per NEMA 410</p> <p>AC adjustment range: 36V: 4~6.7A, 48V: 3~5A, 60V: 2.4~4A</p> <p>Over voltage protection: 36V: 43~52V ,48V: 52~63V, 60V: 62~85V, ,Shut down and latch off o/p voltage , re-power on to recover</p> <p>Overload protection: 95~108% Constant current limiting, recovers automatically after fault condition removed</p> <p>Over temperature protection: Shut down o/p voltage, recovers automatically after temperature goes down</p> <p>Withstand voltage:I/P-O/P: 3.75KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVAC</p> <p>Working temperature: Ta=-40 ~ +45ºC (please refer to "OUTPUT LOAD vs TEMPERATURE"section</p> <p>Safety standards:UL8750,CSA C22.2 No.250.13-12;ENEC EN61347-1,EN61347-2-13,EN62384,GB19510.1,GB19510.14, EAC TP TC 004 approved</p> <p>EMC standards: Compliance to EN55015, EN61000-3-2 Clss C (@load≧75%）；EN61000-3-3,GB17743,GB17625.1, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity :Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension: Refer to mechananical specification</p>
