PARKER . 2.00DXPSR04.0
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| D649069 | 1 | 1 | 1 @ $51.72 | ||
| AJ2ENB | 1 | 1 | 1 @ $194.74 | ||
| Grainger | 49J883 | 1 | 1 | ||
 simsupply.com | ZO-G6140197 | 1 | 27 | 1 | 1 @ $178.01 |
 Zoro | G6140197 | 1 | 41 | 1 | 1 @ $97.60 |
 Radwell | 2.00DXPSR04.00 | 1 | 1 | ||
| Applied Industrial | 101736985 | 1 | 1 | ||
| sustainablesupply.com | C1685444 | 1 | -2 | 1 | 1 @ $101.56 |
| B01MXWUEWF | 1 | -2 | 1 | 1 @ $87.01 | |
| B00BUA5L2Q | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

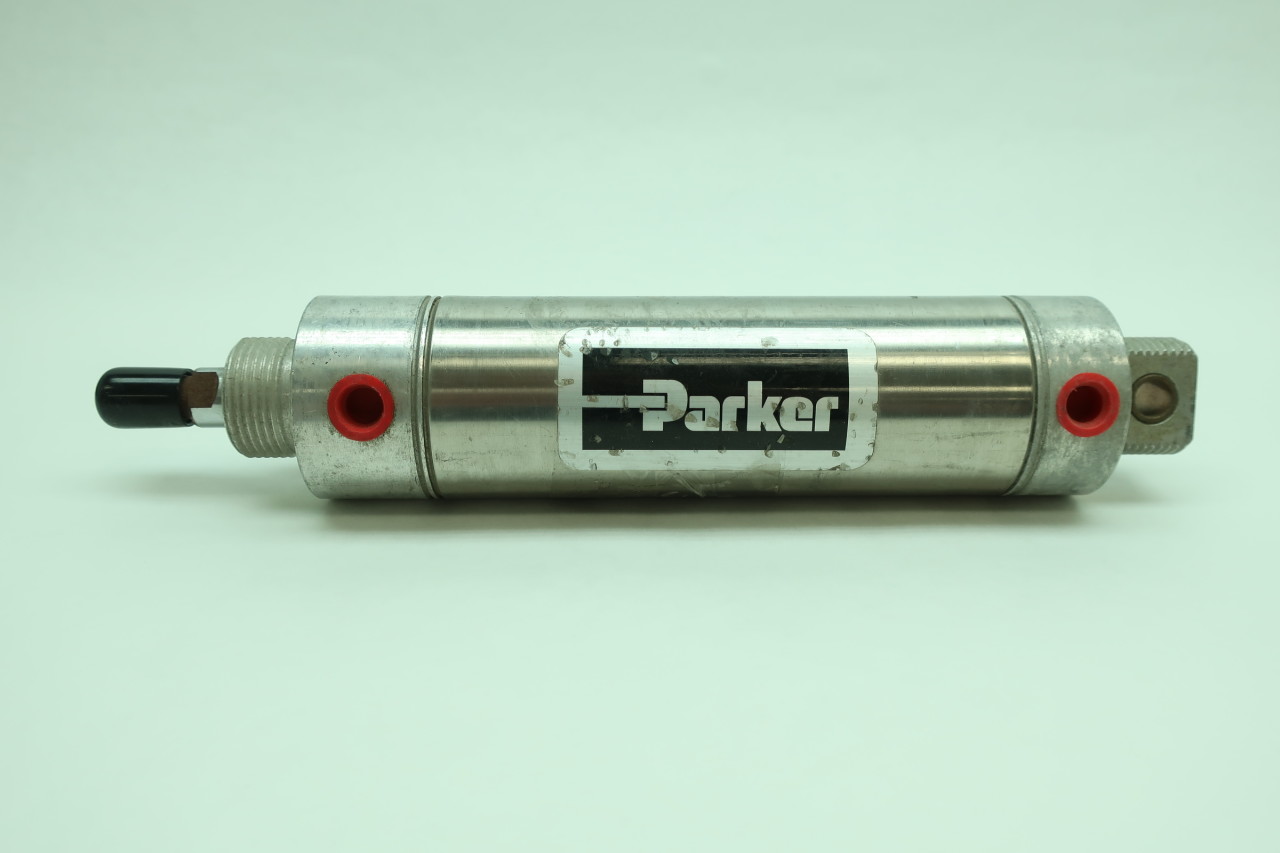

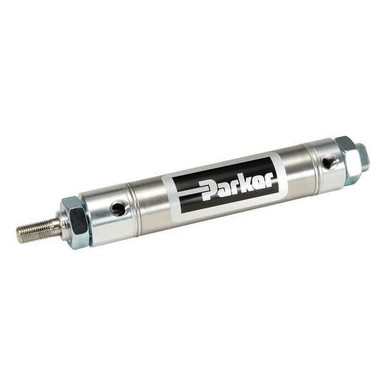

2" Bore Round Double Acting Air Cylinder 4" Stroke
Brand: Parker
'Air Cylinder, Double Acting, Round Non-Repairable, Bore Dia. 2 In., 4 In. Stroke, Nose and Pivot Mount, 1/4 In. FNPT Port Size, 250 psi Max. Pressure, Cushion Type None, -10 Degrees to 165 Degrees F Temp. Range, 10.9 In. Overall Length, Aluminum Piston Material, Stainless Steel Body Material, Silver Finish, Aluminum End Cap Material, Chrome Plated Steel Piston Rod Material, Magnetic Piston No, Tube Material Stainless Steel, Nose Mount Thread 1-1/4 In.-12, 0.625 In. Rod Dia.'
Details
- <b>Price For:</b> Each <b>Rod Thread Size</b>: 1/2-20 UNF <b>Dimension Kk</b>: 1/2"-20 UNF <b>Body Material</b>: Stainless steel <b>Dimension Cc</b>: 0.625" <b>Item</b>: Air Cylinder <b>Max. Pressure</b>: 250 psi <b>Port Size</b>: 1/4" FNPT <b>Cushion Type</b>: None <b>Cylinder Type</b>: Round Non-Repairable <b>Bore Dia.</b>: 2" <b>Single Acting/Double Acting</b>: Double Acting <b>Piston Rod Material</b>: Chrome Plated Steel <b>Tube Material</b>: Stainless Steel
- <b>Rod Thread Length</b>: 0.88" <b>Dimension B</b>: 1.374" <b>Dimension N1</b>: 1-1/4"-12 <b>Nose Mount Thread</b>: 1-1/4"-12 <b>Piston Material</b>: Aluminum <b>Dimension D</b>: 0.50" <b>Finish</b>: Silver <b>Rod Dia.</b>: 0.625" <b>Dimension A</b>: 0.88" <b>End Cap Material</b>: Aluminum <b>Dimension Cd</b>: 0.376" <b>Features</b>: Non-Switch Ready <b>Dimension Cb</b>: 0.75" <b>Dimension L</b>: 0.56" <b>Magnetic Piston</b>: No <b>Dimension E</b>: 0.75" <b>Stroke</b>: 4"
- <b>Overall Length</b>: 10.9" <b>Mount</b>: Nose and Pivot <b>Pivot Hole Dia.</b>: 0.376" <b>Temp. Range</b>: -10 Degrees to 165 Degrees F <b>Country of Origin (subject to change)</b>: United States
Listing
| Product group | BISS Basic |
|---|---|
| Product type | HARDWARE |
| Model | 2.00DXPSR04.00 |
| Part number | 200DXPSR0400 |
| Items per pack | 1 |
| Label | PARKER |
| Manufacturer | PARKER |
Catalog
| Feature | <b>Price For:</b> Each <b>Rod Thread Size</b>: 1/2-20 UNF <b>Dimension Kk</b>: 1/2"-20 UNF <b>Body Material</b>: Stainless steel <b>Dimension Cc</b>: 0.625" <b>Item</b>: Air Cylinder <b>Max. Pressure</b>: 250 psi <b>Port Size</b>: 1/4" FNPT <b>Cushion Type</b>: None <b>Cylinder Type</b>: Round Non-Repairable <b>Bore Dia.</b>: 2" <b>Single Acting/Double Acting</b>: Double Acting <b>Piston Rod Material</b>: Chrome Plated Steel <b>Tube Material</b>: Stainless Steel |
|---|---|
| Category | Industrial & Scientific |
| MPN | 2.00DXPSR04.00 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | PARKER |
