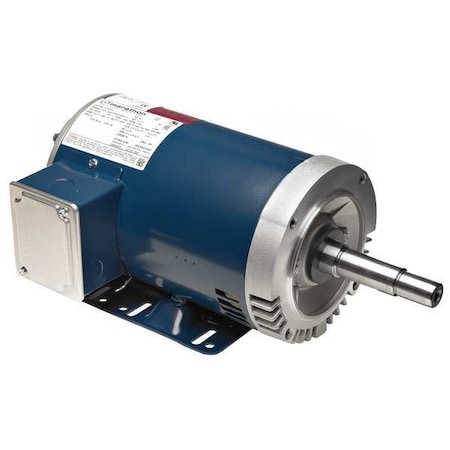

145TTDR6007-Marathon Electric-AC

Close-Coupled Pump Motor 3-Phase 2 HP Nameplate RPM 3510 Voltage 208-230/460 3 Phase Frame 145JM Open Dripproof Full Load Amps 6.0-5.6/2.8 60/50 Hz Face/Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 13-1/8 In. Shaft Dia 7/8 In. Shaft Length 4-1/4 In. Motor Frame Material Rolled Steel

The Marathon Motors close-coupled pump motor is a 3-phase continuous-duty motor for use in commercial and industrial pumping applications. This TEFC motor is suitable for use in dirty, dusty, and nonhazardous applications. JM threaded Open dripproof<br /><br /> Item: Close-Coupled Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Close-Coupled Pump<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 2<br /> Nameplate RPM: 3510<br /> Frame: 145JM<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 208-230/460<br /> Full Load Amps: 6.0-5.6/2.8<br /> Phase: 3<br /> Hz: 60/50<br /> Motor Mounting Type: Face/Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 4-1/4"<br /> Motor Shaft Design: JM Threaded<br /> Length Less Shaft: 8-7/8"<br /> Overall Length: 13-1/8"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Nominal Efficiency: 86.5%<br /> CC Number: CC003A<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Inverter Rated: Yes<br /> Standards: UL Recognized (E49747), CSA Certified (LR2025)
