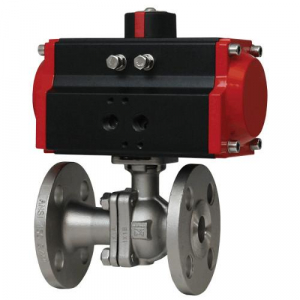

Order WE07-HDA03 by W.E. Anderson 2-Piece V-Ball Valve, 2in Double Acting - US Mega Store

W.E. Anderson . WE07-HDA03

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute16Compatible liquids and gases.
Attribute01, Attribute172-piece
Attribute02, Attribute182
Attribute03, Attribute19150# ANSI flange
Attribute04, Attribute2020" Hg to 275 psi (-0.7 to 19 bar)
Attribute05, Attribute21Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE
Attribute06, Attribute22-20 to 392°F (-29 to 200°C)
Attribute07, Attribute23O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Attribute08, Attribute24Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II)
Attribute09, Attribute25spring return (rack and pinion)
Attribute10, Attribute2680 psi (5.5 bar)
Attribute11, Attribute27120 psi (8.6 bar)
Attribute12, Attribute281/4" female NPT
Attribute13, Attribute29Anodized aluminum body and epoxy coated aluminum end caps
Attribute14, Attribute30-40 to 176°F (-40 to 80°C)
Attribute15, Attribute31NAMUR standard
AttributeKey00, AttributeKey16Service
AttributeKey01, AttributeKey17Body
AttributeKey02, AttributeKey18Line Sizes
AttributeKey03, AttributeKey19End Connections
AttributeKey04, AttributeKey20Pressure Limits
AttributeKey05, AttributeKey21Wetted Materials
AttributeKey06, AttributeKey14, AttributeKey22, AttributeKey30Temperature Limits
AttributeKey07, AttributeKey23Other Materials
AttributeKey08, AttributeKey24Agency Approvals
AttributeKey09, AttributeKey25Type
AttributeKey10, AttributeKey26Normal Supply Pressure
AttributeKey11, AttributeKey27Maximum Supply Pressure
AttributeKey12, AttributeKey28Air Connections
AttributeKey13, AttributeKey29Housing Material
AttributeKey15, AttributeKey31Accessory Mounting
CategoryL1Plumbing
CategoryL2Valves
CategoryL3Ball
CategoryL4W.E. Anderson WE07-HDA03
ConditionNEW
Extra Product NameOrder WE07-HDA03 by W.E. Anderson 2-Piece V-Ball Valve, 2in Double Acting - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWE07-HDA03
qtyInStockContact Us
snippet<p><strong>2-Piece Flanged Stainless Steel V-Ball Valve, 2in Double Acting </strong> </p> <p>THE SERIES WE07 incorporates a V-port ball valve for impressive flow rates with minimal pressure drop. Quarter turn control ball valves are compact, lighter weight and much less expensive than comparable sized globe valves and segmented control valves. They also offer bubble tight shut off with zero leakage and can withstand high pressure drops. The natural flow pattern of ball valves increases flow rates and in many applications valves smaller than pipeline size can be used. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches can be mounted directly to the valves allowing for remote position indication. </p>
tierPrice1878.7

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comWE07-HDA031Contact Us11 @ $878.70
heavydutydepot.comWE07-HDA03111 @ $878.70
MegadepotWE07-HDA0311
