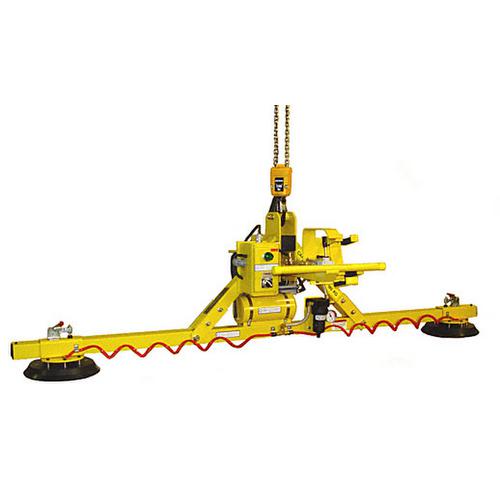

CRL FLEX2HV11DC Wood's Powr-Grip DC Powered 600 Series FLEX Flat Lifter

Wood's Powr-Grip . FLEX2HV11DC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00, Label, Publisher, StudioWood's Powr-Grip
Attribute01Laurel, MT.
Attribute0211" x 37" (279 x 940 mm), 11" x 59" (279 x 1499 mm)
Attribute03This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Attribute04, Attribute11DC
Attribute05Flex Flat Lifter
Attribute0610
Attribute07600 Series
Attribute0811 x 37 Min And 11 x 59 Max
Attribute092
Attribute10600
Attribute12600 lbs.(272 kg)
Attribute13Flat To Flat
Attribute1411 x 59 in. (279 x 1499 mm)
Attribute1511 x 37 in. (279 x 940 mm)
AttributeKey00Brand
AttributeKey01F.O.B
AttributeKey02Standard Pad Spread
AttributeKey03WARNING
AttributeKey04Type
AttributeKey05Configuration
AttributeKey06Pad Diameter
AttributeKey07Style
AttributeKey08Pad Spread Size
AttributeKey09Pad Quantity
AttributeKey10, Weight_AttribLifter Weight - DC Power (Pounds)
AttributeKey11Power
AttributeKey12Load Capacity
AttributeKey13Load Movement
AttributeKey14Maximum Pad Spread
AttributeKey15Minimum Pad Spread
CategoryIdL3Powered Vertical, Flat, Cladding and C-Frame Lifters
CategoryL1Hardware, Tools & Sealants
CategoryL2Vacuum Lifters
Extra Product NameCRL FLEX2HV11DC Wood's Powr-Grip DC Powered 600 Series FLEX Flat Lifter
Weight600 169.00
WeightUnitlbs
atoms, moq, multiple, tierMinQty1, NumberOfItems, PackageQuantity1
MPN, PartNumberFLEX2HV11DC
qtyInStock0
snippet<br/><b>CRL Wood's Powr-Grip? DC Powered 600 Series FLEX Flat Lifter</b> features a single beam with 2 movable vacuum pads and your choice of AC, DC or compressed air power. For special sizes and capacities, please contact our <a href="/contactus?site=US">Glass and Glazing Technical Sales</a>.<br/> Standard Variable Vacuum Pad Spread: <br/> Min: 11" x 37" (279 x 940 mm) <br/> Max: 11" x 59" (279 x 1499 mm)<br/> Number/Size of Vacuum Pads: 2/10" (254 mm) diameter lipped vacuum pads.<br/> Lifting Capacity: 600 pounds (270 kg)<br/> Weight of Vacuum Lifter: <br/> 81 pounds (37 kg) with Air Power System (approx.)<br/> 120 pounds (55 kg) with AC Power System (approx.)<br/> 169 pounds (77 kg) with DC Power System (approx.)<br/> Load Movement: Flat to Flat<br/> Standard Features: <br/> Movable Vacuum Pad Mounts<br/> Spring-Mounted Vacuum Pads<br/> Vacuum Reserve Tank<br/> Vacuum Line Filter<br/> Vacuum Gauge<br/> Available Power Systems:<br/> Air Power Systems (Cat. No. FLEX2HV11A1R): <br/> Standard Operating Power: Compressed Air, 5 SCFM (142 liters/min] @ 80-150 psi (550-1035 kPa) <br/> Vacuum Pump: Single-stage venturi type, 3 SCFM (85 liters/min) nominal airflow <br/> AC Power System (Cat. No. FLEX2HV11AC): <br/> Standard Operating Power: 120 volts AC, 50/60 hertz, 6 amps<br/> (240 volts AC, 50/60 hertz, 3 amps also available) <br/> Vacuum Pump: Rotary vane type, 4 SCFM (113 liters/min) nominal airflow <br/> Green lift light <br/> Twist-lock electrical plug <br/> Blow-off for quick release<br/> DC Power System (FLEX2HV11DC): <br/> Standard Operating Power: 12 volts DC, 21 amps <br/> Vacuum Pump: Diaphragm type, 3 SCFM (85 liters/min) nominal airflow <br/> On-board battery and charger <br/> Battery energy gauge <br/> Low vacuum warning light <br/> Blow-off for quick release<br/><p>.</p>
tierPrice19727.26
ASIN, AsinB002DVWFPW
Amount0.00
BindingMisc.
BrandCR Laurence
CurrencyCodeUSD
FetchTime1562589055
Height44
ProductGroupHome Improvement
ProductTypeNameTOOLS
TitleCRL Wood's 600 Series DC Flex Lifter by CR Laurence
URLhttp://ecx.images-amazon.com/images/I/4198yFYnGhL._SL75_.jpg
Unitspixels pounds
Width75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareFLEX2HV11DC111 @ $9727.26
