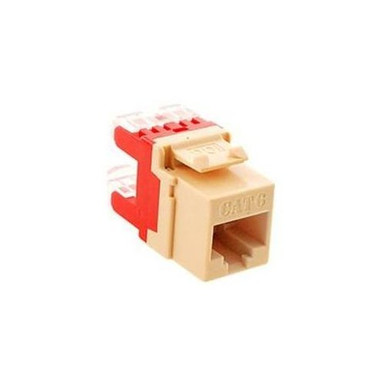

ICC IC1078F6-IV Cat 6 High Density Modular Connector, Ivory.

<p>CAT6 High Density (HD) Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The Category 6 HD design offers a smaller rear footprint maximizing space in confined work areas.</p> <p><strong>Features</strong></p> <ul> <li>CAT6 rated connectors provide excellent performance for data networks.</li> <li>PCB technology provides maximum performance and superior signal quality.</li> <li>Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.</li> <li>Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements.</li> <li>Designed with rear split back 110 IDC reducing termination time.</li> <li>Terminate with 110 punch down tool or JackEasy Termination Tool.</li> <li>Reduced rear footprint allows for greater connectivity density.</li> <li>Provides for more port configurations in a smaller area.</li> <li>Includes an integrated TIA-568A/B color wiring diagram.</li> <li>Backward compatible with all lower rated category components.</li> <li>Works with all Work Area Outlets faceplates, inserts, surface mount boxes.</li> <li>Used with Category 6 patch cords.</li> <li>Exceeds ANSI/TIA-568-C requirements for permanent performances.</li> <li>UL 1863 Compliant.</li> </ul>

Feature. CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth.. PCB technology provides maximum performance and superior signal quality.. Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.. Exceeds ANSITIA-568-C.2 Category 6 connecting hardware requirements.. Designed with rear split back 110 IDC reducing termination time.. Terminate with 110 punch down tool ICACSPDT00.. Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area.. Includes an integrated TIA-568AB color wiring diagram.. Backwards compatible to all lower rated category components.. Compatible with all ICC configurable faceplate inserts surface mount boxes and blank patch panels.. Compatible with all ICC furniture faceplate Elite bezels and Elite surface mount boxes.. Used with Category 6 patch cords.. Installation instructions included.. UL listed.. Color - Ivory.Cat 6 Module. Electrical. Current Rating 1.5 Amps.. Insulation Resistance 500 Mohms Min.. Contact Resistance 20 Mohms Max.. Dc Resistance 0.1 Ohm Max.. Transmission Performance Exceeds Category 6.. Connecting Hardware Requirements Specified In.. Ansitia-568-c.2 When Used With Compatible.. Horizontal Cable.
