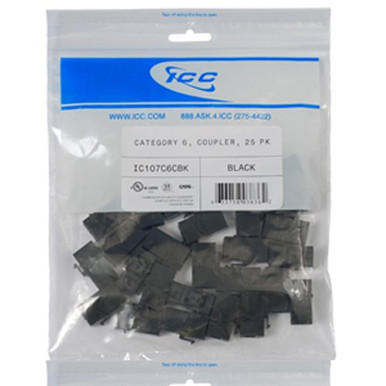

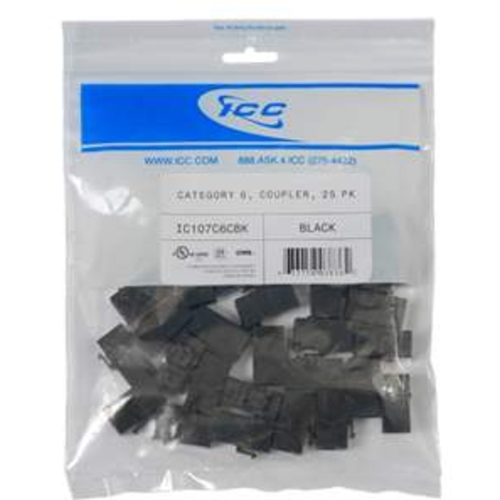

MODULE, COUPLER, CAT 6 25 PK, BLACK

Black Cat 6 In-Line Keystone Coupler Jack 25 PackAllows for connection of two (2) Cat 6 patch cordsFeed through in-line couplerComponent-ratedPCB technology provides maximum performance and superior signal qualityEnhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signalsExceeds ANSI/TIA/EIA-568-B.2 Category 5e connecting hardware requirementsReduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller areaBackwards compatible to all lower rated category componentsCompatible with all faceplates, inserts, surface mount boxes, and blank patch panelsCompatible with all furniture faceplates, bezels, and surface mount boxesFor use with Category 6 patch cordsInstallation instructions includedUL listed

Category 6A RJ-45/RJ-45 UTP coupler module has been tested to ensure that it surpasses ANSI/TIA-568-C.2 Category 6A specifications without degradation in performance. High-density (HD) style designed to be compatible with all ICC faceplates, surface mount boxes, and blank patch panels. Features: Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts. Provides pin 1-1 RJ-45 CAT6A coupling. High-density footprint allows for greater connectivity in tight spaces. Works with all Work Area Outlets faceplates, inserts, surface mount boxes. Backwards compatible with lower category-rated systems (CAT6 & CAT5e) Specifications: Transmission Performance: Meet all requirements specified in channel requirement of ISO/IEC 11801, class E, ANSI/TIA-568-C.2, CAT6 Electrical: Electrical Insulation Transmission: 500 min at 100v D.C Dielectric Withstanding Voltage: 1000v D.C. or A.C. peak contact to contact at 60hz for 1 min Mechanical: Insertion/Extraction Life : 750 cycles minimum Physical: Housing High Impact, flame retardant plastic, UL 94V-0 Spring Wire: Phosphor Bronze Alloy Plated with 50 Micro-Inch of Gold Color: Color XX: BK-Black, WH-White
