Schneider Electric . ATS01N112FT
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| ebay.com | ATS01N112FT | 1 | -2 | 1 | |
 Newark | 72J7953 | 1 | 1 | 1 @ $233.08, 10 @ $208.97, 25 @ $203.58 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $199.98 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $319.99 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $377.40 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $231.37 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $289.99 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $232.59 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $312.08 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $288.99 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $329.32 | |
| ATS01N112FT | 1 | -2 | 1 | 1 @ $174.99 | |
 homeessentialsdirect.com | ATS01N112FT | 1 | -2 | 1 | 1 @ $165.77 |
 simsupply.com | ZO-G3544213 | 1 | 47 | 1 | 1 @ $207.19 |
| mroelectric.com | ATS01N112FT | 1 | 1 | ||
 blackhawksupply.com | ATS01N112FT | 1 | -2 | 1 | 1 @ $136.90 |
| Graybar | 25020439 | 1 | 1 | 1 @ $168.08 | |
| industrialrefrigerationparts.com | ATS01N112FT | 1 | 1 | 1 @ $4.57 | |
 Galco | ATS01N112FT-SQD | 1 | 2 | 1 | 1 @ $156.91 |
| ATS01N112FT | 1 | 1 | 1 | 1 @ $168.43 | |
| 132971 | 1 | 1 | 1 @ $231.19 | ||
 Zoro | G3544213 | 1 | 100 | 1 | 1 @ $174.99 |
 cappusa.com | 3099745 | 1 | 1 | 1 @ $0.00 | |
| AG7GFY | 1 | 1 | 1 @ $287.58 | ||
| TME | ATS01N112FT | 1 | 35 | 1 | |
| ATS01N112FT | 1 | 3 | 1 | 1 @ $189.54 | |
 grainger.ca | SQDATS01N112FT | 1 | 1 | 1 @ $429.36 | |
 Digi-Key | 16614139 | 1 | 1 | 1 | 1 @ $159.61, 50 @ $156.01 |
 midwestapplianceparts.com | ATS01N112FT-SQ-P | 1 | 1 | 1 @ $173.52 | |
| us.rs-online.com | 70007402 | 1 | 18 | 1 | 1 @ $262.82, 10 @ $232.64, 25 @ $202.21 |
| RS Delivers | 478-4718 | 1 | 14 | 1 | 1 @ $227.48 |
| RS Online | 4784718 | 1 | 1 | ||
| MRO Supply | 1054855 | 1 | 1 | ||
| 1Source | ATS01N112FT | 1 | 1 | ||
| Allied Electronics | 70007402 | 1 | 1 | ||
| Crescent Electric Supply Co | 1963638 | 1 | 1 | ||
 Voomi Supply | ATS01N112FT | 1 | 1 | 1 @ $176.99 | |
| SupplyHouse | ATS01N112FT | 1 | 1 | ||
 gordonelectricsupply.com | ATS01N112FT | 1 | This Item Usually Ships in 3-5 Days | 1 | 1 @ $183.09 |
| sustainablesupply.com | C1567634 | 1 | -2 | 1 | 1 @ $160.14 |
| Mouser | 996-ATS01N112FT | 1 | 6 | 1 | 1 @ $122.82, 10 @ $114.06, 100 @ $109.67, 1000 @ $109.67, 10000 @ $109.67 |
| AmazonSC | B00PSMYLTQ | 1 | 1 | ||
 AmazonTP | B0099U4CCY | 1 | 1 | 1 @ $166.28 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

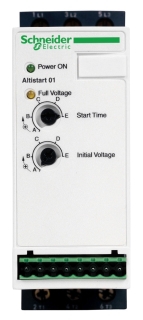

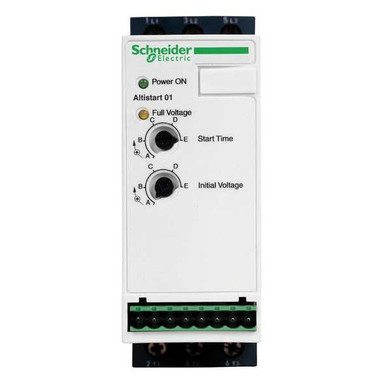

Schneider Electric ATS01N112FT ATS01 Altistart 01 Soft Starter for Asynchronous Motors for Industrial and Commercial Equipment and Machinery, DIN Rail Mounted, 12A, 110 to 480V, 1.5 to 5.5kW
Brand: Schneider Electric
Details
- USES: This DIN rail mounted soft starter powers simple machines such as conveyors, small cranes, pumps, fans, compressors, & belt-driven machinery; It provides smooth starting for your machinery, avoiding mechanical stresses & extending their service life
- QUIET OPERATION: Progressive start limits the starting and stopping noise of motors; Reduces hearing discomfort for operators on the workfloor; It features an Integrated bypass, this reduces noise and decreases heat dissipation
- COMPATIBILITY: Soft starter can feed single or 3-phase asynchronous motors with a rating up to 12A; It can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (110V to 480V AC) and up to 1.5kW for single phase (110V to 230V AC); CE Marking
- SMALL AND VERSATILE: One of the smallest soft starters on the market; it can be installed nearly everywhere; Simple setup with only 2 settings; Possible to configure by non-specialists
- ADDITIONAL INFO: Dimensions - 4.88 in (124 mm) H x 1.77 in (45 mm) W x 5.16 in (131 mm) D; Weight - 0.62 lb(US) (0.28 kg); Covered by 18 month warranty; LED lights indicate when starter is powered up (green) & when it has reached nominal voltage (yellow)
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | MOTOR_STARTER |
| Model | ATS01N112FT |
| Part number | ATS01N112FT |
| Items per pack | 1 |
| Label | Schneider Electric |
| Manufacturer | Schneider Electric |
Soft Start, 110-460VAC, 12A, 1 or 3Phase
Brand: Schneider Electric
' Soft Start, Input Voltage 120 to 480VAC, Output Current 12A, With Bypass, 3 HP @ 3 Phase - 240V, 7-1/2 HP @ 3 Phase - 480V, 1/2 HP @ 1 Phase - 120V, 1-1/2 HP @ 1 Phase - 208V, Phase 1 or 3, Enclosure Rating NEMA 1, 2 HP @ 1 Phase - 240V, 3 HP @ 3 Phase - 208V, Output Voltage 120 to 480VAC, Control Voltage 24VAC/DC, IP Rating 20, Ramp Time 1 to 5 sec., Start Type Reduced Voltage Starting, Torque Limiting on Start-up, Application Constant & Variable Torque '
Details
- Price For: Each Control Voltage: 24VAC/DC Output Voltage: 120 to 480VAC Enclosure Rating: NEMA 1 Includes: LED display two:"Power ON" and "Full Voltage" (up to speed) Standards: UL File No. E184727, CSA File 224330, IEC/EN 60947-4-2 CE, UL, CSA, C-Tick and CCC With Bypass / No Bypass: With Bypass Phase: 1 or 3 Display: No Application: Constant & Variable Torque Ramp Time: 1 to 5 sec.
- Starting Torque: 30 to 80% of Starting Torque Equal to Line Supply Voltage Start Type: Reduced Voltage Starting, Torque Limiting on Start-up Item: Soft Start IP Rating: 20 Output Current: 12A Width: 1.77" HP @ 3 Phase - 480V: 7-1/2 HP @ 3 Phase - 240V: 3 HP @ 3 Phase - 208V: 3 HP @ 1 Phase - 240V: 2 HP @ 1 Phase - 120V: 1/2 Height: 4.88" Depth: 4.44" HP @ 1 Phase - 208V: 1-1/2
- Country of Origin (subject to change): Germany
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MOTOR_STARTER |
| Part number | ATS01N112FT |
| Label | SCHNEIDER ELECTRIC |
| Manufacturer | SCHNEIDER ELECTRIC |
Catalog
| Feature | Price For: Each Control Voltage: 24VAC/DC Output Voltage: 120 to 480VAC Enclosure Rating: NEMA 1 Includes: LED display two:"Power ON" and "Full Voltage" (up to speed) Standards: UL File No. E184727, CSA File 224330, IEC/EN 60947-4-2 CE, UL, CSA, C-Tick and CCC With Bypass / No Bypass: With Bypass Phase: 1 or 3 Display: No Application: Constant & Variable Torque Ramp Time: 1 to 5 sec. |
|---|---|
| Category | Industrial & Scientific |
| MPN | ATS01N112FT |
| UPC | 94714795789 |
| EAN | 94714795789 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | SCHNEIDER ELECTRIC |
SCHNEIDER ELECTRIC ATS01N112FT Soft Starter, Asynchronous Motors, Altistart 01 Series, Three Phase, 5.5 kW, 12 A, 110 V to 480 V
Brand: Schneider Electric
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | ATS01N112FT |
| Part number | ATS01N112FT |
| Items per pack | 1 |
| Label | SCHNEIDER ELECTRIC |
| Manufacturer | SCHNEIDER ELECTRIC |
SCHNEIDER ELECTRIC ATS01N112FT Soft Start 110-480V AC12 Amp Ats01
Brand: Schneider Electric
Details
- Frequency Controllers For Three-Phase 0
- This Is Highly Durable
- This Is Manufactured In China
- Package dimensions: 6.1" L x 6.9" W x 2.1" H
Listing
| Binding | Tools & Home Improvement |
|---|---|
| Product group | Home Improvement |
| Product type | LIGHT_SOURCE |
| Model | ATS01N112FT |
| Part number | ATS01N112FT |
| Items per pack | 1 |
| Label | SCHNEIDER ELECTRIC |
| Manufacturer | SCHNEIDER ELECTRIC |
Catalog
| Feature | Frequency controllers for three-phase 0 |
|---|---|
| Category | Tools & Home Improvement |
| MPN | ATS01N112FT |
| UPC | 785901667452 |
| EAN | 785901667452 |
| Product group | Home Improvement |
| Product type | LIGHT_SOURCE |
| Manufacturer | SCHNEIDER ELECTRIC |
Schneider Electric 1 or 3 Phase, Soft Start, 12A Output Current, 120 to 480VAC Input Voltage
Brand: CAI - SCHNEIDER ELECTRIC
Listing
| Product group | BISS Basic |
|---|---|
| Product type | MOTOR_STARTER |
| Part number | ATS01N112FT |
| Label | CAI - SCHNEIDER ELECTRIC |
| Manufacturer | CAI - SCHNEIDER ELECTRIC |
