Eaton Pushbutton Switch, Spst, 2A, 120V, Screw - C22-DL-G-K10-120

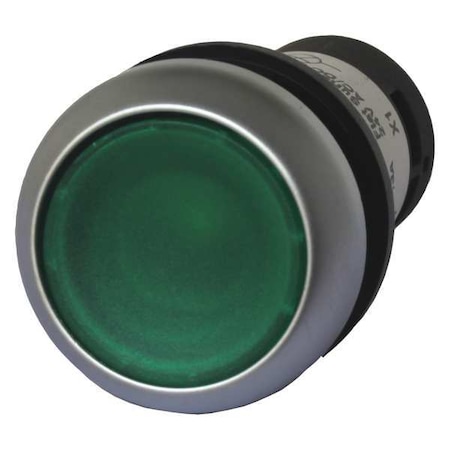

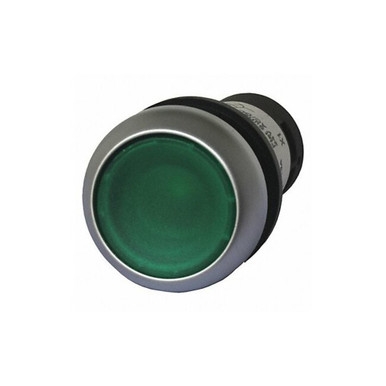

Part Number: 401508133441 <br> Part: Eaton C22-DL-G-K10-120 22mm Assembled Pushbutton, Flush, Green, C22 <br> 22.5 mm, Illuminated, Green, Plastic, Flush, Momentary, Compact Style Pushbutton, 600V Rated. NEMA Rating: 4X, 13. Includes: 1 Normally Open Contact and 120V AC LED. ***Momentary Pushbuttons are not selectable Maintained verses Momentary in Field*** <br> IP/NEMA Rating:13, 4X <br> Type:Flush, Momentary, Illuminated <br> Volts AC Control:208, 12, 480, 120, 277, 240, 24 <br> Volts DC Control:110, 48, 6, 24, 12 <br> Volts AC Control Range:1-600 <br> Volts DC Control Range:1-600 <br> Also known as: 401508133441, CUTC22DLGK10120, Eaton, C22-DL-G-K10-120, Assembled Round Pushbuttons, 22mm Pushbuttons, Pilot Devices, Control, Automation, Cutler-Hammer, Westinghouse <br> Equivalent to: <ul></ul>

This field-convertible maintained pushbutton features an all-in-one design. It helps you reduce inventory and increase functionality.<br /><br /> Item: Illuminated Push Button<br /> Size: 22mm<br /> Action: Maintained / Momentary<br /> Type of Operator: Flush Button<br /> Basic Material: Plastic<br /> Head Material: Polycarbonate<br /> Contact Form: 1NO<br /> Bezel: Silver Coated Polycarbonate<br /> Color: Green<br /> Lamp Module Voltage: 120VAC<br /> Lamp Module Type: Full Voltage<br /> Lamp Type: LED<br /> Lamp Voltage: 120<br /> Contact Rating: 4A @ 250VAC<br /> NEMA Contact Rating Designation: A600<br /> Number of Operators: 1<br /> NEMA Rating: 1, 3, 4X, 12, 13<br /> IP Rating: 67, 69K<br /> Standards: UL, CSA, CE, CCC, IEC 60947, VDE 0660, Lloyd's Register, RoHS<br /> Terminal Connection: Screw Clamp
