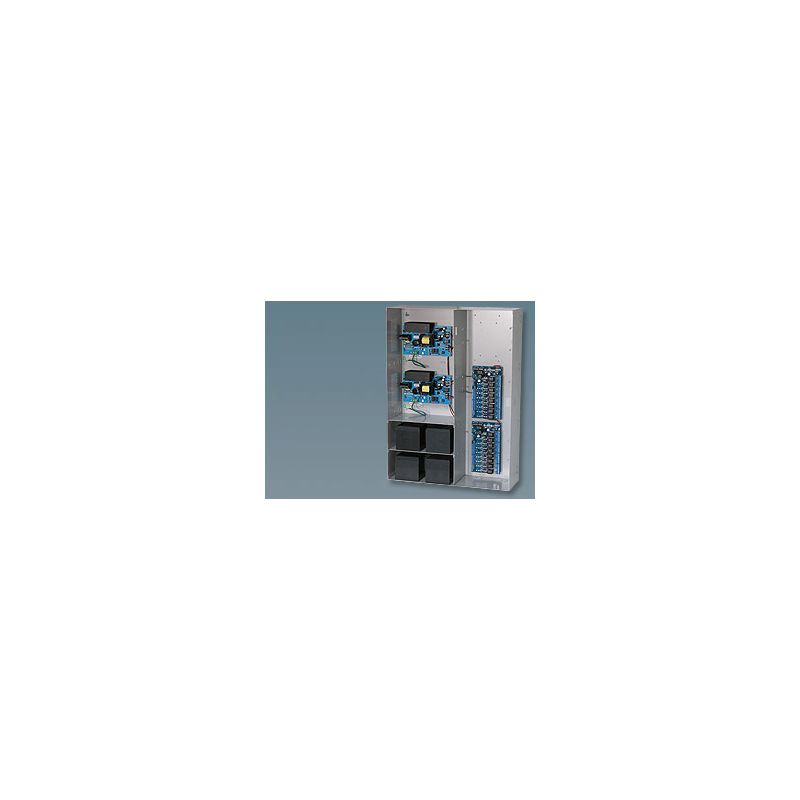

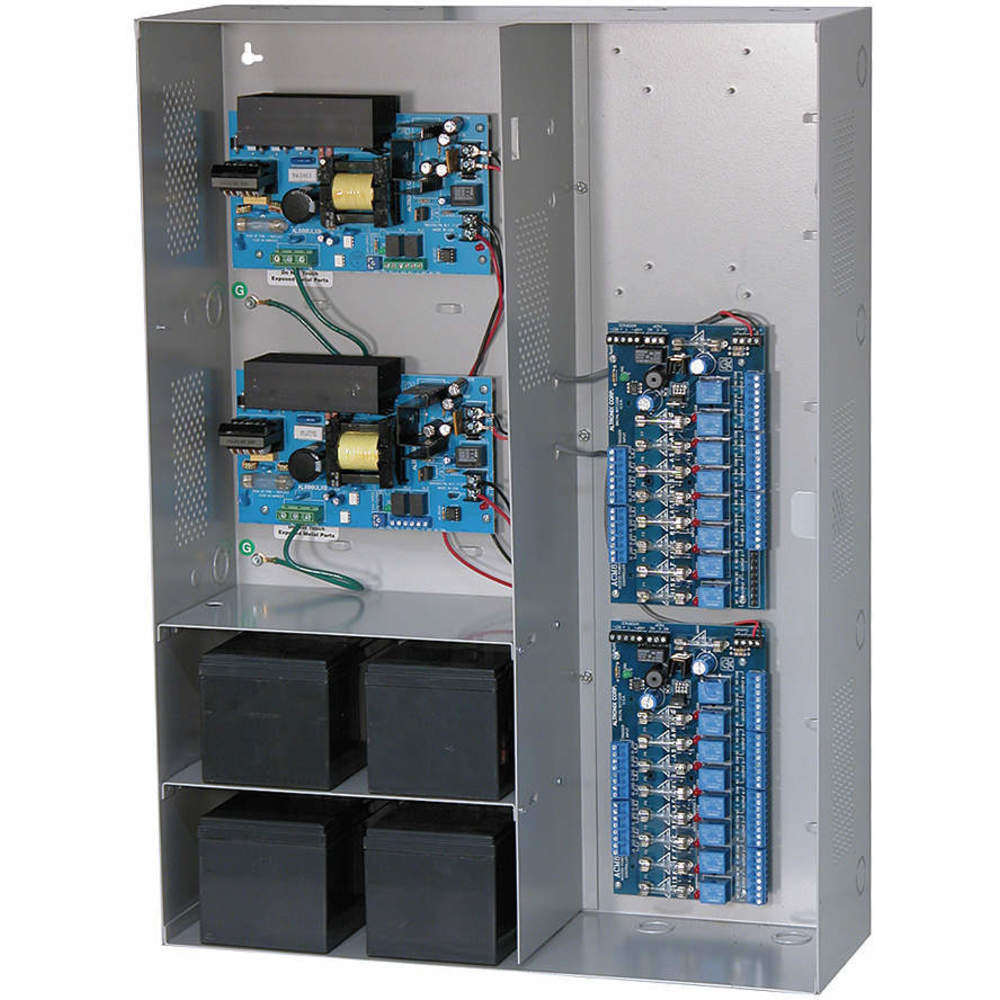

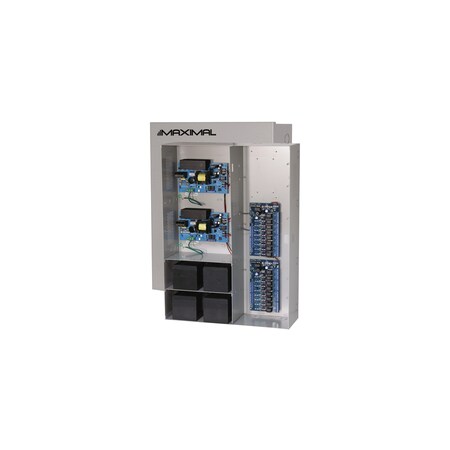

Altronix MAXIMAL33D | Access Power Controller w/ Power Suppl

Maximal33D distributes and switches power to access control systems and accessories. Unit converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC Class 2 Rated PTC protected power limited outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs. Product Type: Access Power Controller Device Supported: Control Panel Product Type: Access Power Controller Device Supported: Control Panel Manufacturer Part Number: MAXIMAL33D Limited Warranty: Lifetime Weight (Approximate): 43.15 lb Manufacturer: Altronix Corporation Product Model: MAXIMAL33D Product Name: MAXIMAL33D Power Module Brand Name: Altronix Brand Name: Altronix Height: 27 Width: 19 Depth: 6.3 Environmentally Friendly: Yes Environmental Certification: RoHS

2 POWER SUPPLY WITH ACCESS POWER CONTROLLER- 16PTC CLASS.
