Seco-Larm 1??" Green Mushroom-Capacitor Button. No/nc Contact, Rated 5A125Vac. Stainless-Steel, Single-Gang Plate. Built-In Delay Timer (1180 Sec), No/nc Contact, Rated 3A24Vdc. Includes Built-In Buzzer. "exit" And "salida" Printed On Plate. - SD-7201GAPT1Q
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 33AK0641 | 1 | 1 | 1 @ $47.70 | |
![]() alldataresource.com | CS103539 | 1 | -2 | 1 | 1 @ $49.78 |
| affordableopeners.com | SD-7201GAPT1Q | 1 | -2 | 1 | 1 @ $41.00 |
| SD-7201GAPT1Q | 1 | 1 | |||
| SD-7201GAPT1Q | 1 | -2 | 1 | 1 @ $40.30 | |
![]() surveillance-video.com | SD-7201GAPT1Q | 1 | -2 | 1 | 1 @ $40.30 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
SECO-LARM SD-7201GA-PT1 GRN RQST TO EXIT W/TIMER NO RC
Brand: Seco-Larm
Seco-Larm SD-7201GAPT1Q 11/2" Green mushroom-cap button. NO/NC contact, rated 5A@125VAC. Stainless-steel, single-gang plate. Built-in delay timer (1~180 sec), NO/NC contact, rated 3A@24VDC. Includes built-in buzzer. "EXIT" and "SALIDA" printed on plate.
Details
- Seco-Larm SD-7201GAPT1Q
Listing
| Binding | Camera |
|---|---|
| Product group | Photography |
| Product type | ELECTRONIC_SWITCH |
| Part number | SD-7201GAPT1Q |
| Label | Seco-Larm |
| Manufacturer | Seco-Larm |

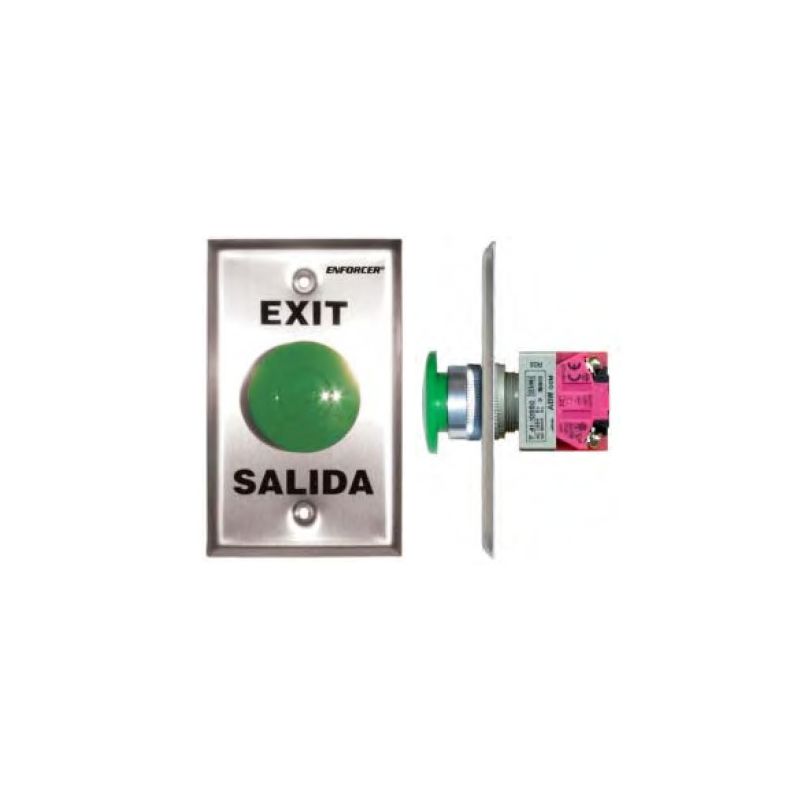

Seco-Larm SD-7201GAPT1Q Enforcer Weather-Resistant Mushroom-Cap RTE Plate with Timer, Stainless-Steel Face-Plate, EXIT and Salida Silk-Screened On Plate, Green Mushroom Cap Push Button
Brand: Seco-Larm
Seco-Larm SD-7201GAPT1Q Enforcer Weather-Resistant Mushroom-Cap RTE Plate with Timer, Stainless-steel Face-plate, "EXIT" and "SALIDA" Silk-screened On Plate, Green Mushroom Cap Push Button<br><br> The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access situations, with a 1-1/2″ (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC contact rated 3A@24VDC.<br><br> Key Features<br> - Stainless-steel face-plate<br> - EXIT and "SALIDA" silk-screened on plate<br> - Fits into standard single-gang box<br> - Green mushroom cap push button<br> - Built-in timer (1~60s)<br> - NO/NC contact rated 3A@24VDC<br> - Buzzer output for audio status<br> - ETL, Conforms to UL Std. 294<br><br> Specifications<br> - Operating voltage: 12/24 VDC<br> - Current rating: 3A@24VDC<br> - Faceplate: Brushed stainless steel<br> - Destructive Attack: Level I<br> - Line security: Level I<br> - Endurance level: Level I<br> - Standby power: Level I<br> - Built-in timer: Yes (1~180s)<br> - IP Rating: IP65 Weatherproof<br> - Operating temperature: -40°~167°F (-40°~75°C)<br> - Dimensions: 4-1/2" x 2-3/4" x 2-3/4" (114 x 70 x 70mm)<br> - Weight: 4.7-oz (133g)<br><br>
Details
- Stainless-steel face-plate
- "EXIT" and "SALIDA" silk-screened on plate
- Fits into standard single-gang box
- NO/NC contact rated 3A@24VDC
- Buzzer output for audio status
Listing
| Binding | Personal Computers |
|---|---|
| Product group | Personal Computer |
| Product type | NOTEBOOK_COMPUTER |
| Model | SD-7201GAPT1Q |
| Part number | SD-7201GAPT1Q |
| Label | Seco-Larm |
| Manufacturer | Seco-Larm |
