Seco-Larm Outdoor Wave-To-Open Sensor, English - SD-9163-KSVQ

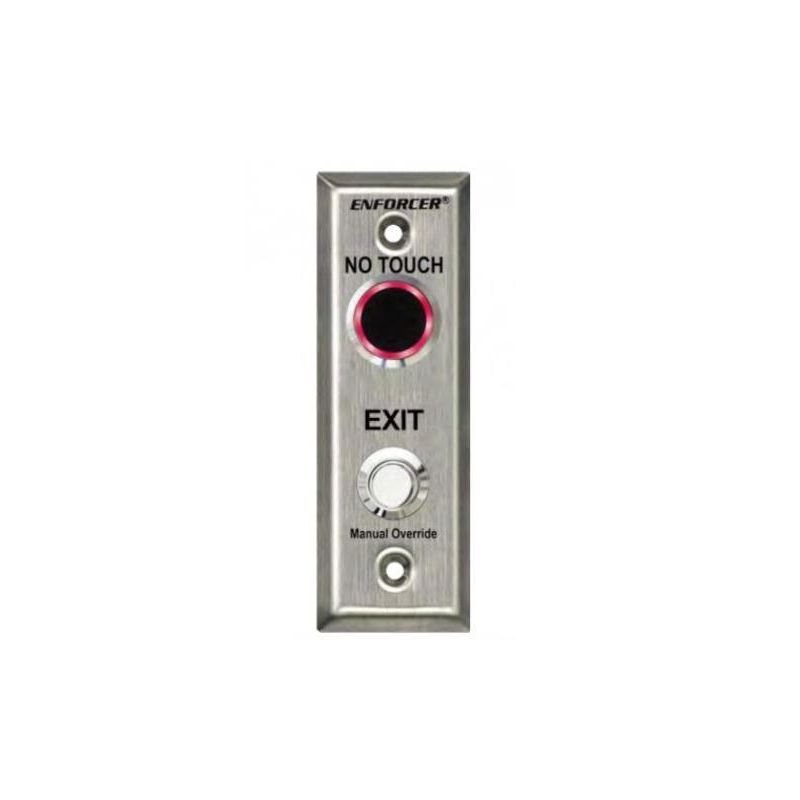

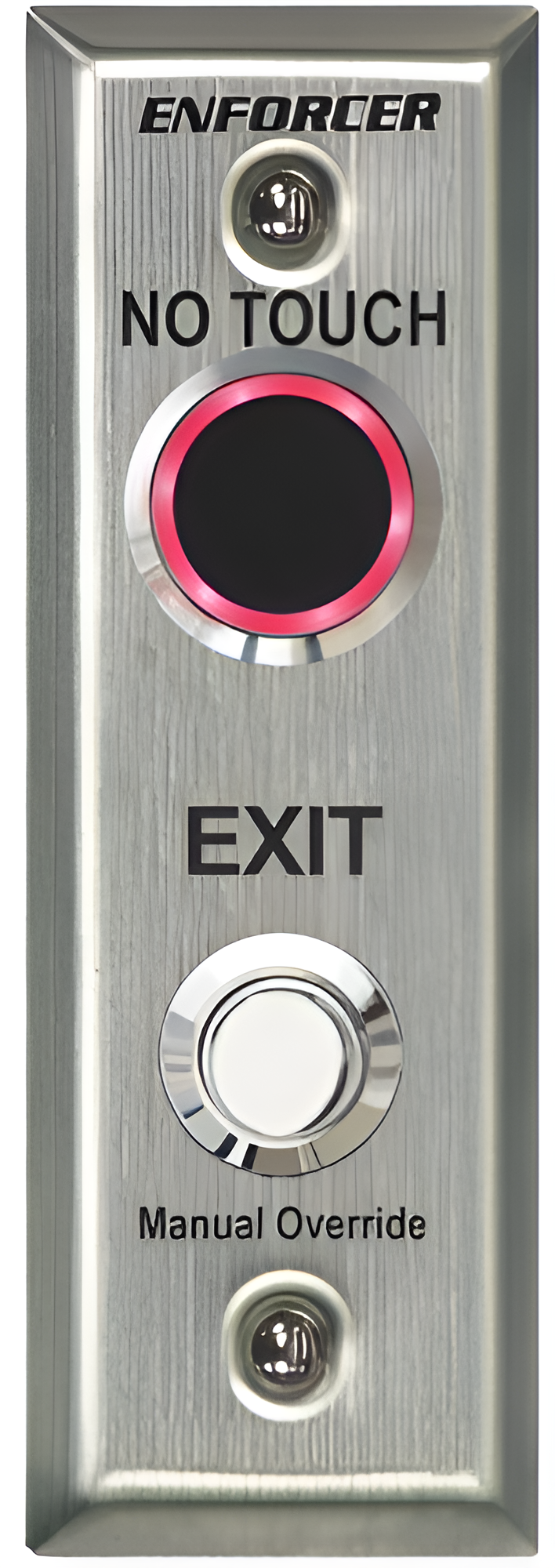

Seco-Larm SD-9163-KSVQ ENFORCER Slimline Outdoor Wave-to-Open Sensor with Manual Override and English, Adjustable Sensor Range Up to 7" (18cm), Stainless Steel Plate, Weatherproof (IP65)<br><br> The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, schools, factories, or offices.<br><br> Key Features<br> - Adjustable sensor range up to 7" (18cm)<br> - Stainless steel plate<br> - Weatherproof (IP65) for outdoor use<br> - Clean and simple no-touch operation<br> - 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle<br> - LED illuminated sensor area for easy identification<br> - Selectable LED colors (turns from red to green or green to red) to show sensor activated<br> - Manual override button functions without electricity in case of power failure<br> - ETL, Conforms to UL Std. 294<br><br> Specifications<br> - Operating temperature: 12~24 VDC<br> - Current draw (max. ±10%): Standby red (12/24 VDC): 13mA / 15mA; Triggered green (12/24 VDC): 21mA / 25mA; Standby green (12/24 VDC): 12mA / 14mA; Triggered red (12/24 VDC): 23mA / 28mA<br> - Relay type: SPDT dry contact, 1.2A@24VDC<br> - Response time: 10ms<br> - LED: Standby: Red / Triggered: Green<br> - Ouput duration: 0.8~30 s, toggle<br> - Range: 2"~7" (5~18 cm)<br> - Destructive attack: Level I<br> - Line security: Level I<br> - Endurance: Level IV<br> - Standby power: Level I<br> - IP Rating: Weatherproof, IP65<br> - Operating Temperature: -4°~131°F (-20°~55°C)<br> - Dimensions: 1-1/2" x 4-1/2" (39 x 115mm)<br> - Weight: 2.7-oz (77g)<br><br>
