Seco-Larm Outdoor Wave-To-Open Sensor, English - SD-9263-KSQ

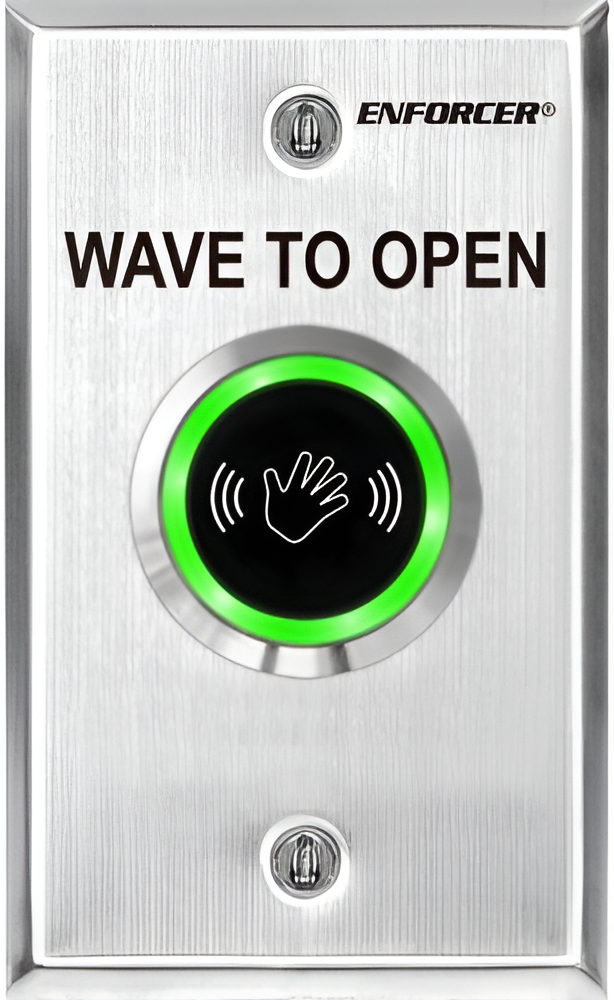

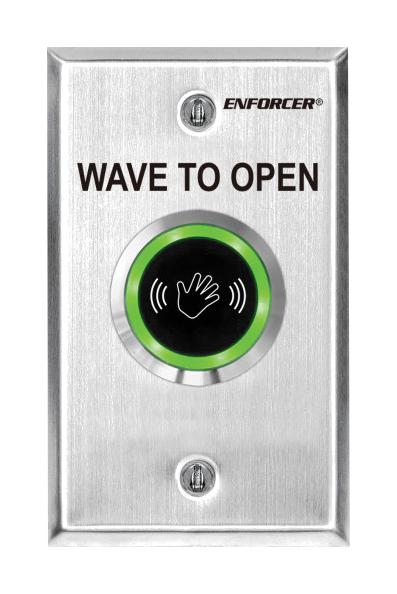

Seco-Larm SD-9263-KSQ Outdoor Wave-to-Open Sensor, Single-Gang with English Message; Adjustable Sensor Range Up to 7" (18cm); 1.2A Relay, Adjustable Trigger Duration 0.8~30 Seconds or Toggle<br><br> The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand.<br><br> Key Features:<br> - Adjustable sensor range up to 7" (18cm)<br> - Weatherproof (IP65) for outdoor use<br> - Stainless steel plate<br> - 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle<br> - LED illuminated sensor area for easy identification<br> - Selectable LED colors (turns from red to green or green to red) to show sensor activated<br> - ETL UL294 Listed<br><br> Specifications:<br> - Current Draw: Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC<br> - Sensing Range: 2"~7" (5~18cm)<br> - Operating Voltage: 12~24 VDC<br> - Reaction time: 10mS<br> - LEDs - Red: Standby (Colors are reversible)<br> - LEDs - Green: Triggered (Colors are reversible)<br> - Relay Type: Form C dry contact 1.2A@24VDC<br> - Output Time: 0.5~30 s, toggle<br> - Operating Temperature: -4°~131°F (-20°~55°C)<br> - Dimensions: 4-1/2" x 2-3/4" x 1-1/2" (115 x 70 x 39 mm)<br> - Weight: 108g<br> - Enclosure: IP65
