SECO-LARM . SD-927PKC-NEQ

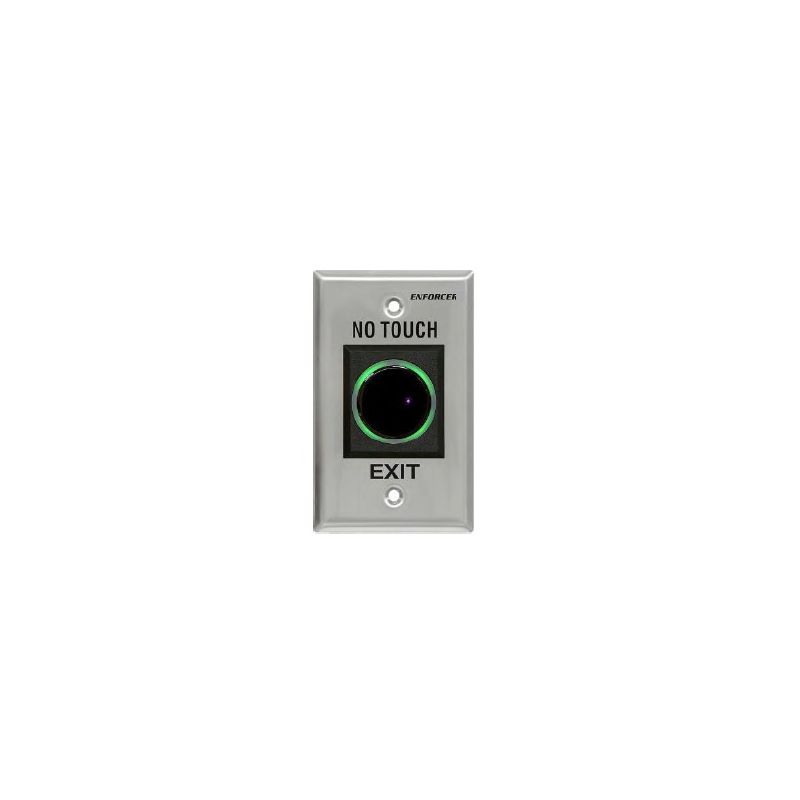

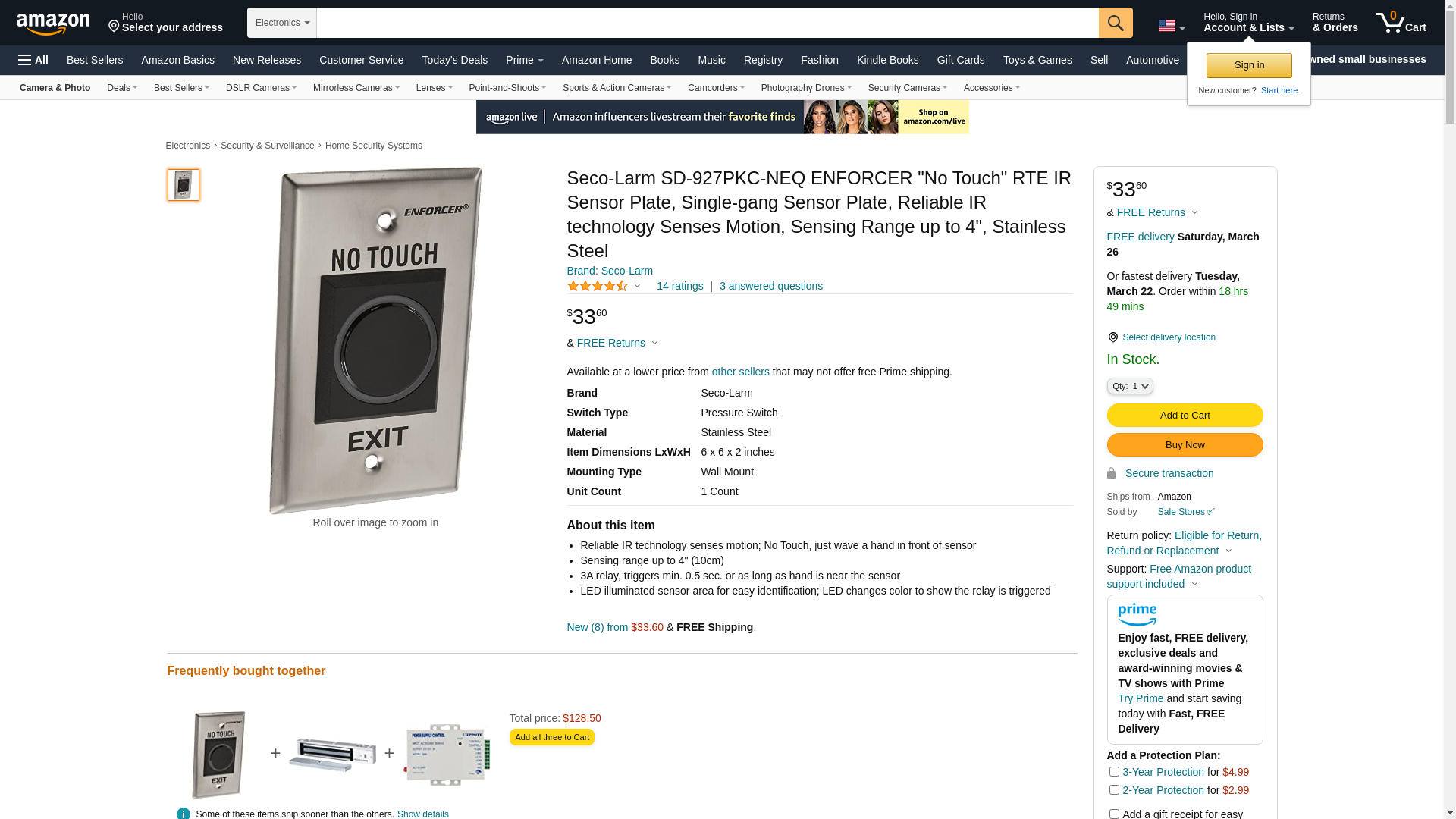

<p><b>Seco-Larm SD-927PKC-NEQ ENFORCER "No Touch" RTE IR Sensor Plate, Single-gang Sensor Plate, Reliable IR technology Senses Motion, Sensing Range up to 4", Stainless Steel</b></p> <p>The ENFORCER SD-927 series "No Touch" Request-To-Exit Sensor Plates use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch</p></br> <b>Key Features</b> <ul> <li>Reliable IR technology senses motion; No Touch, just wave a hand in front of sensor</li> <li>Sensing range up to 4" (10cm)</li> <li>Stainless steel single gang plate</li> <li>3A relay, triggers min. 0.5 sec. or as long as hand is near the sensor</li> <li>LED illuminated sensor area for easy identification; LED changes color to show the relay is triggered</li> <li>Quick-connect screw-less terminal block</li></ul></br> <b>Specifications</b> <ul> <li>Type: No Touch Request-to-Exit Sensor Wall Plates</li> <li>Current Draw: 50mA at 12VDC</li> <li>Sensing Range: Up to 4" (10cm)</li> <li>Operating Voltage: 12VDC</li> <li>Reaction Time: 10mS</li> <li>LEDs - Red: Triggered</li> <li>LEDs - Green: Standby</li> <li>Relay Type: Form C (NO/NC/COM) 3A at 24VDC</li> <li>Output Time: 0.5S or as long as unit is triggered</li> <li>Switching Capacity: 3A at 24VDC</li> <li>Operating Temperature: -4° to 131° F (-20° to 55° C)</li> <li>Dimensions: 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm)</li> <li>Weight: 3oz (85g)</li></ul>

Seco-Larm SD-927PKC-NEQ ENFORCER "No Touch" RTE IR Sensor Plate, Single-gang Sensor Plate, Reliable IR technology Senses Motion, Sensing Range up to 4", Stainless Steel<br> <br>The ENFORCER SD-927 series "No Touch" Request-To-Exit Sensor Plates use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch<br> <br> <br>Key Features<ul> <li>Reliable IR technology senses motion; No Touch, just wave a hand in front of sensor</li> <li>Sensing range up to 4" (10cm)</li> <li>Stainless steel single gang plate</li> <li>3A relay, triggers min. 0.5 sec. or as long as hand is near the sensor</li> <li>LED illuminated sensor area for easy identification; LED changes color to show the relay is triggered</li> <li>Quick-connect screw-less terminal block</li> </ul> <br>Specifications<ul> <li>Type: No Touch Request-to-Exit Sensor Wall Plates</li> <li>Current Draw: 50mA at 12VDC</li> <li>Sensing Range: Up to 4" (10cm)</li> <li>Operating Voltage: 12VDC</li> <li>Reaction Time: 10mS</li> <li>LEDs - Red: Triggered</li> <li>LEDs - Green: Standby</li> <li>Relay Type: Form C (NO/NC/COM) 3A at 24VDC</li> <li>Output Time: 0.5S or as long as unit is triggered</li> <li>Switching Capacity: 3A at 24VDC</li> <li>Operating Temperature: -4° to 131° F (-20° to 55° C)</li> <li>Dimensions: 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm)</li> <li>Weight: 3oz (85g)</li> </ul>

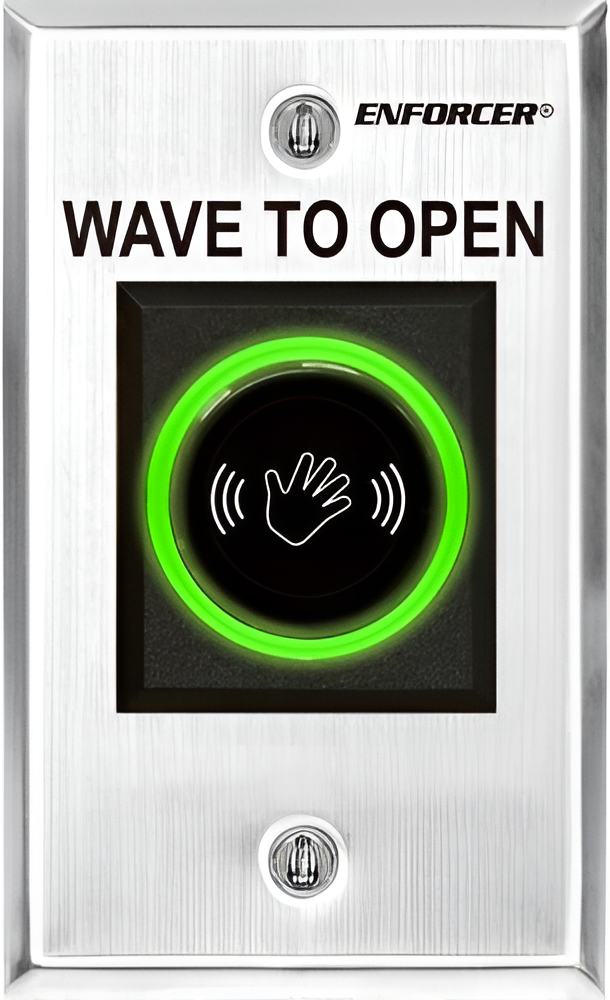

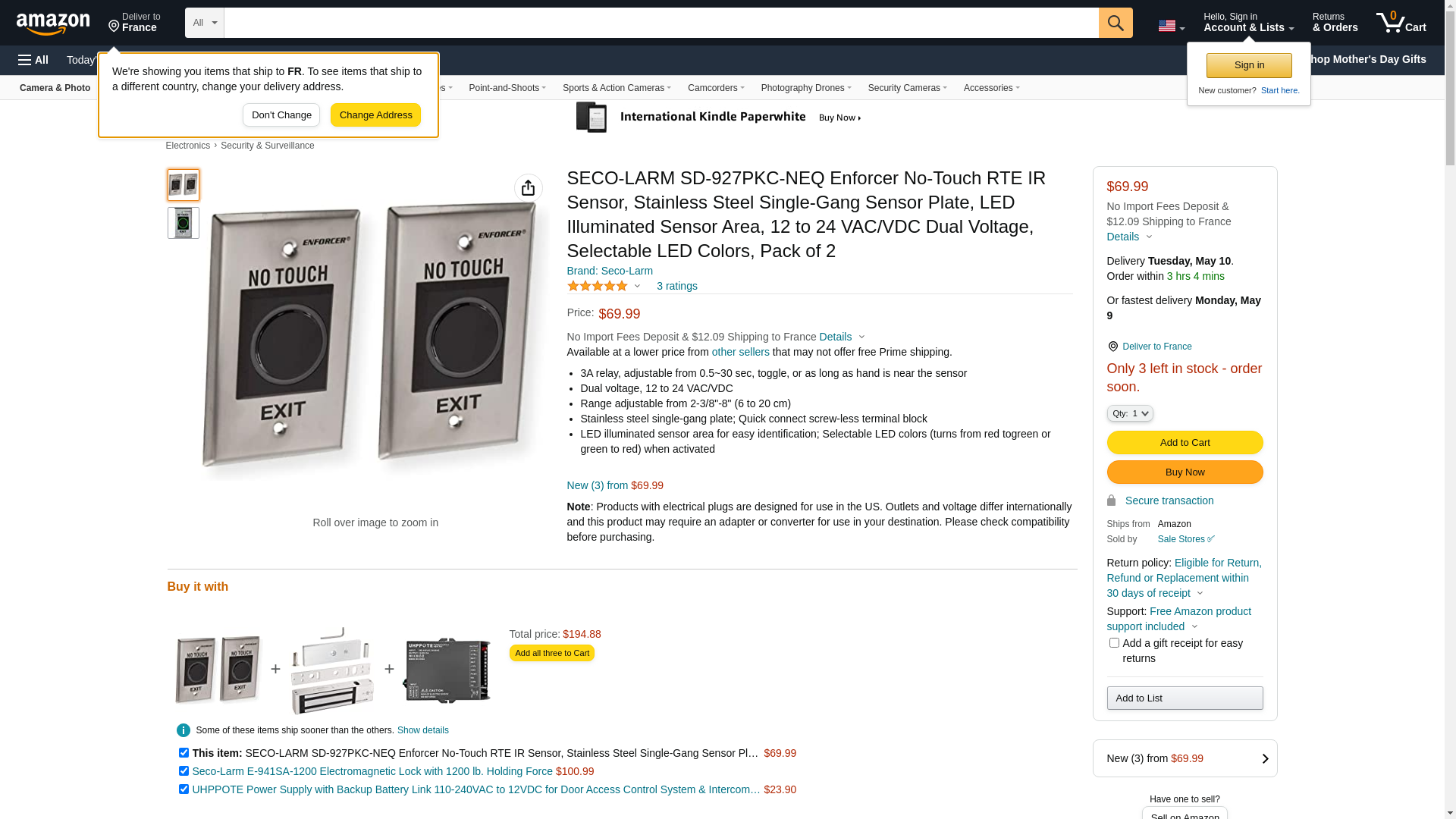

<p><b>SECO-LARM SD-927PKC-NEQ ENFORCER No-Touch RTE IR Sensor, Stainless Steel Single-gang Sensor Plate, LED Illuminated Sensor Area, 12 to 24 VAC/VDC Dual Voltage, Selectable LED Colors, Pack of 2</b></p> </br> <b>Key Features</b> <ul> <li>3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor</li> <li>Dual voltage, 12 to 24 VAC/VDC</li> <li>Range adjustable from 2-3/8"-8" (6 to 20 cm)</li> <li>Stainless steel single-gang plate; Quick connect screw-less terminal block</li> <li>LED illuminated sensor area for easy identification; Selectable LED colors (turns from red to green or green to red) when activated</li></ul></br> <b>Specifications</b> <ul> <li>Type: No Touch Request-to-Exit Sensor Wall Plates</li> <li>Current Draw: 120mA at 12VDC</li> <li>Sensing Range: Adjustable, 2-3/8" to 8" (6-20 cm)</li> <li>Operating Voltage: 12 to 24 VAC/VDC</li> <li>Reaction time: 10mS</li> <li>LEDs - Red: Standby</li> <li>LEDs - Green: Triggered</li> <li>Relay Type: Form C (NO/NC/COM) 3A at 24VDC</li> <li>Output Time: Adjustable, 0.5 to 30 sec., toggle, or as long as sensor is triggered</li> <li>Operating Temperature: -4° to 131° F (-20° to 55° C)</li> <li>Dimensions: 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm)</li> <li>Weight: 3oz (85g)</li></ul>
