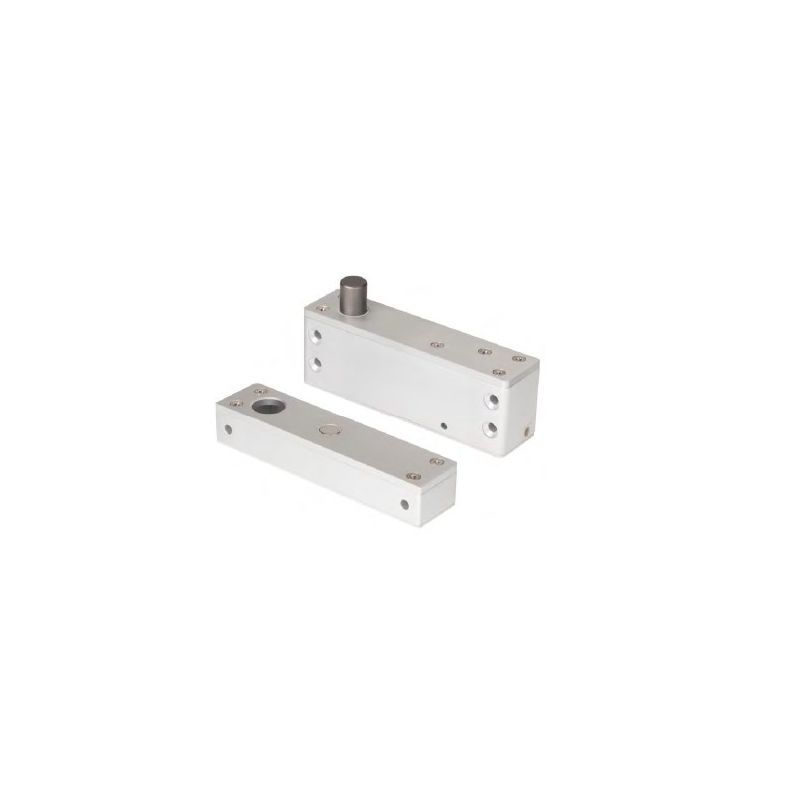

Seco-Larm Mini Surface-Mount Electric Deadbolt. Fail-Safe (Door Unlocks When Power Is Lost). 12Vdc - SD-997B-1SQ

Seco-Larm SD-997B-1SQ Mini Surface-Mount Electric Deadbolt, Fail-Safe Operation, Magnetic Switch Senses Door Position for Positive Locking, Lock Delay Timer Adjustable Between 0 and 3 Seconds<br><br> The SD-997B-1SQ adds deadbolt security to cabinet doors or drawers with the convenience of electrical operation. Its miniature size and surface-mount design allows it to be added to almost any location. Fail-safe operation unlocks the unit when power is lost. Door status monitoring is also available to tie into a control system.<br><br> Key Features<br> - Fail-safe operation (unlocks if power is lost)<br> - Surface-mount design for easy installation<br> - Magnetic switch senses door position for positive locking<br> - Aluminum alloy bolt, 15/32" (12.7mm) diameter, 9/16" (14mm) throw<br> - Automatically relocks after 6 seconds if the lock was unlocked but the door was not opened<br> - Door open/close monitor (NC/COM)<br> - Lock delay timer adjustable between 0 and 3 seconds<br> - Use with an optional digital keypad for high security without a key<br> - Powered by a solenoid<br><br> Specifications<br> - Operation: Fail Safe<br> - Current Draw-Standby: 237mA@12VDC max.<br> - Current Draw-Active: 650mA@12VDC max.<br> - Status Sensor: 250mA@30VDC (NC/COM)<br> - Operating Voltage: 12VDC<br> - Adjustable Delay Timer: 0/3 s (default)<br> - Operating Temperature: 32º~158ºF (0º~70ºC)<br> - Weight: 1-lb, 2.5-oz (450g)<br><br>
