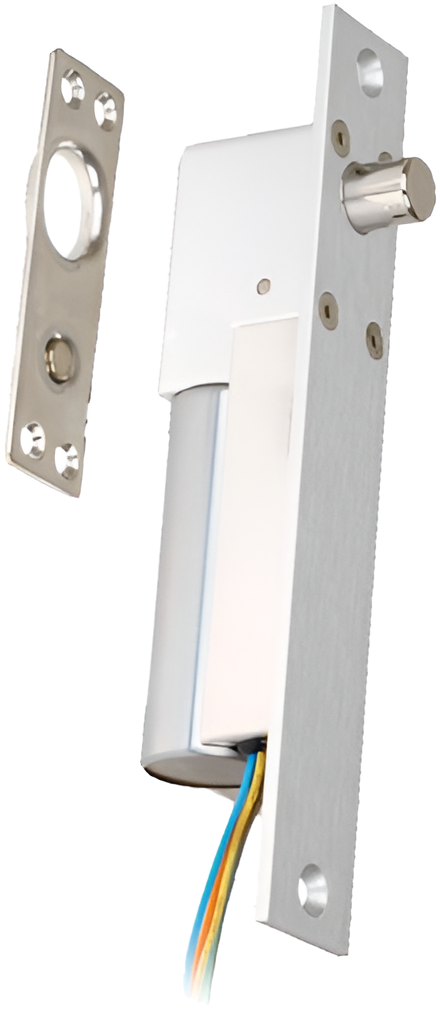

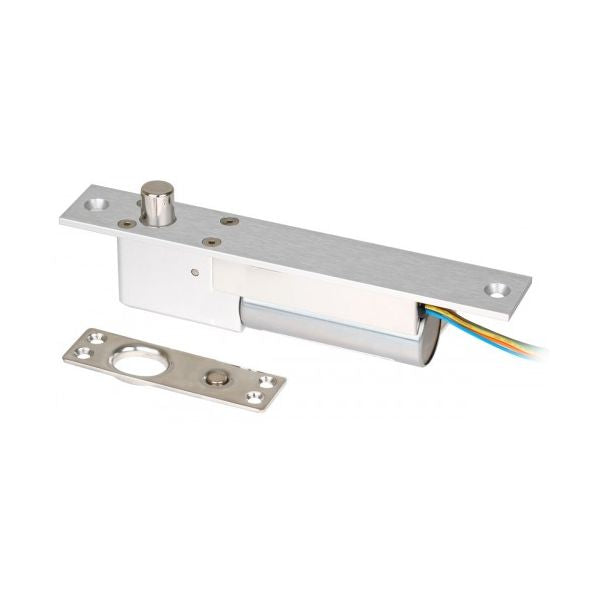

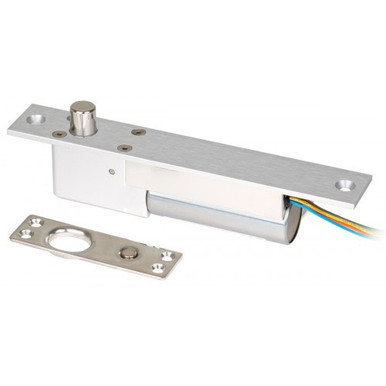

Seco-Larm Heavy-Duty Electric Deadbolt - 12V - SD-997B-GBQ
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 13T5774 | 1 | 3 | 1 | 1 @ $145.00 |
| 776693 | 1 | -2 | 1 | 1 @ $145.44 | |
| affordableopeners.com | SD-997B-GBQ | 1 | -2 | 1 | 1 @ $122.53 |
| SD-997B-GBQ | 1 | -2 | 1 | 1 @ $155.97 | |
| SD-997B-GBQ | 1 | -2 | 1 | 1 @ $117.81 | |
| SLA_SD997BGBQ | 1 | 32 | 1 | 1 @ $181.25 | |
 keylessaccesslocks.com | SD-997B-GBQ | 1 | 1 | ||
 Radwell | SD-997B-GBQ | 1 | 1 | ||
 surveillance-video.com | SD-997B-GBQ | 1 | -2 | 1 | 1 @ $117.81 |
| MCM Electronics | 82-13820 | 1 | -2 | 1 | 1 @ $169.00, 10 @ $160.55 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Seco-Larm SD-997B-GBQ SD-997B-1SQ Mini Surface-Mount Deadbolt
Brand: Seco-Larm
Seco-Larm SD-997B-GBQ Fail-safe Electric Deadbolt, for concealed deadbolt security. Door unlocks when power is lost. Dual voltage: 12/24 VDC.
Details
- Adds concealed deadbolt security to most wood or hollow metal doors,* with the added convenience of electrical operation.
- Status sensor (Door open/close monitor): SPDT, 500mA@12VDC(NO/NC/COM).
- Adjustable door lock delay timer (0, 2.5, 5, or 9 sec).
- Control wire allows release without cutting unit's power.
- Magnetic switch determines door position for positive locking.
Seco-Larm Enforcer Electric Deadbolt, Fail-Safe, 12/24 VDC (SD-997B-GBQ)
Brand: Seco-Larm
Seco-Larm SD-997B-GBQ Electric Deadbolt/Fail-Safe, Adds concealed deadbolt security to most wood or hollow metal doors with the added convenience ofelectrical operation, Fail-safe operation (unlocks if power is lost)<br><br> SECO-LARM SD-997B-GBQ Electric Deadbolt/Fail-Safe, Adds concealed deadbolt security to most wood or hollow metal doors with the added convenience ofelectrical operation, Fail-safe operation (unlocks if power is lost).<br><br> Key Features<br> - Adjustable door lock delay timer (0, 2.5, 5, or 9 sec)<br> - Control wire allows release without cutting unit's power<br> - Magnetic switch determines door position for positive locking<br> - Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out<br> - Use with an optional digital keypad for high security without a key<br> - Easily connects to SECO-LARM's Electronic Keypads<br> - Suitable for office-type applications<br> - Shallow design for use with most metal door jambs<br> - No limiting installation orientation<br> - Powered by a solenoid<br> - Stainless steel for strength and long life<br> - 1,000,000 operations lifetime<br> - Plastic material Tefulon Polymonochlorotrifluoethylene<br> - Over-current protection 1.5A<br> - Stainless steel bolt, 5/8" diameter, 5/8" throw<br><br> Specifications<br> - Current Draw-Standby: 340mA@12VDC/180mA@24VDC<br> - Current Draw-Active: 900mA@12VDC/440mA@24VDC<br> - Status Sensor: SPDT, 250mA @ 12VDC (NO/NC/COM)<br> - Operating Voltage: 12/24 VDC<br> - Lock body (faceplate) dimensions: 7-7/8"x1-5/16"<br> - Lock body (cavity) dimensions: 5-3/4"x1-1/8"x1-1/2"<br> - Strike plate dimensions: 3-9/16"x1"x1-1/8"<br> - Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)<br> - Weight: 1-lb 13-oz<br><br>
Details
- Adjustable door lock delay timer (0, 2.5, 5, or 9 sec), Control wire allows release without cutting unit's power, Magnetic switch determines door position for positive locking
- Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out, Easily connects to SECO-LARM's Electronic Keypads
- Suitable for office-type applications, Shallow design for use with most metal door jambs, No limiting installation orientation
- Powered by a solenoid, Stainless steel for strength and long life, 1,000,000 operations lifetime
- Plastic material Tefulon Polymonochlorotrifluoethylene; Over-current protection 1.5A; Stainless steel bolt, 5/8" diameter, 5/8" throw
Listing
| Product group | Home Improvement |
|---|---|
| Product type | HARDWARE |
| Model | SD-997B-GBQ |
| Part number | SD-997B-GBQ |
| Label | SECO-LARM |
| Manufacturer | SECO-LARM |
Catalog
| Feature | u"Adjustable door lock delay timer\xa0(0, 2.5, 5, or 9 sec), Control wire allows release without cutting\xa0unit's power, Magnetic switch determines door position for\xa0positive locking" |
|---|---|
| Category | Tools & Home Improvement |
| MPN | SD-997B-GBQ |
| UPC | 676544015383 |
| EAN | 676544015383 |
| Product group | Home Improvement |
| Product type | HARDWARE |
| Manufacturer | SECO-LARM |
