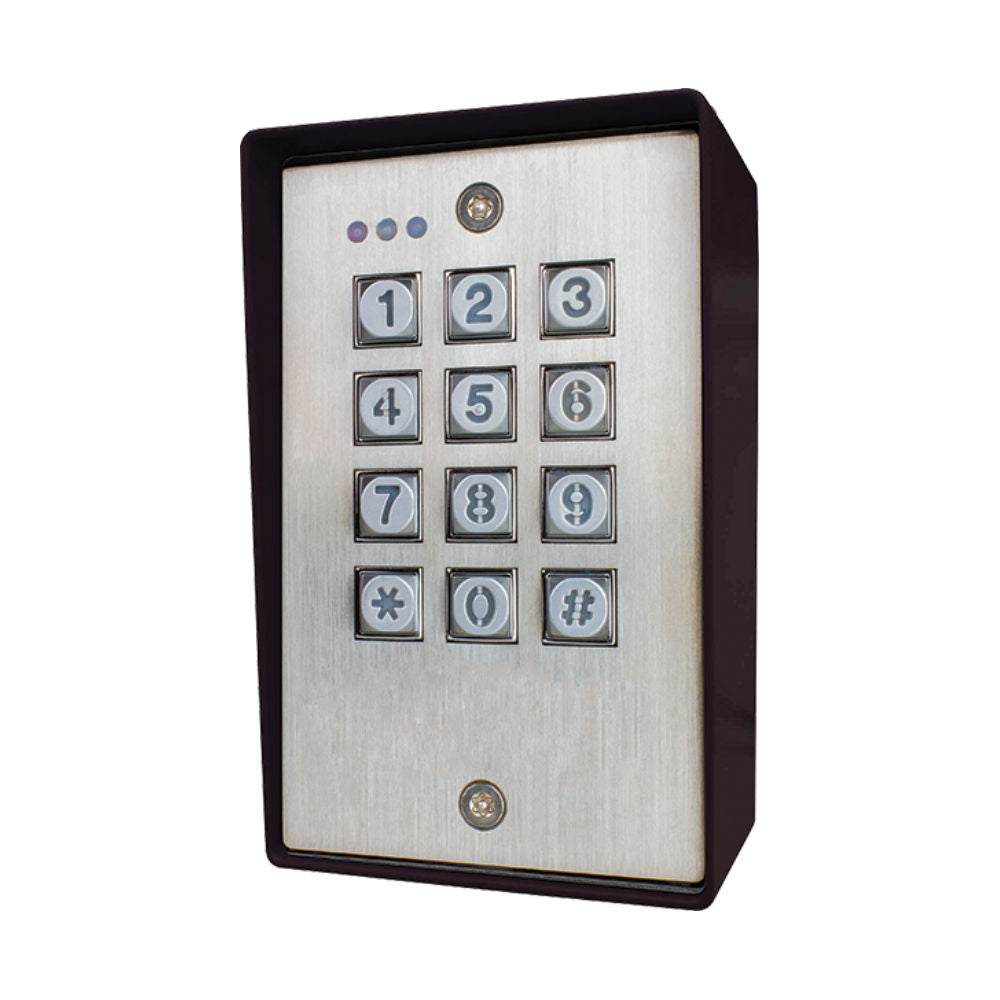

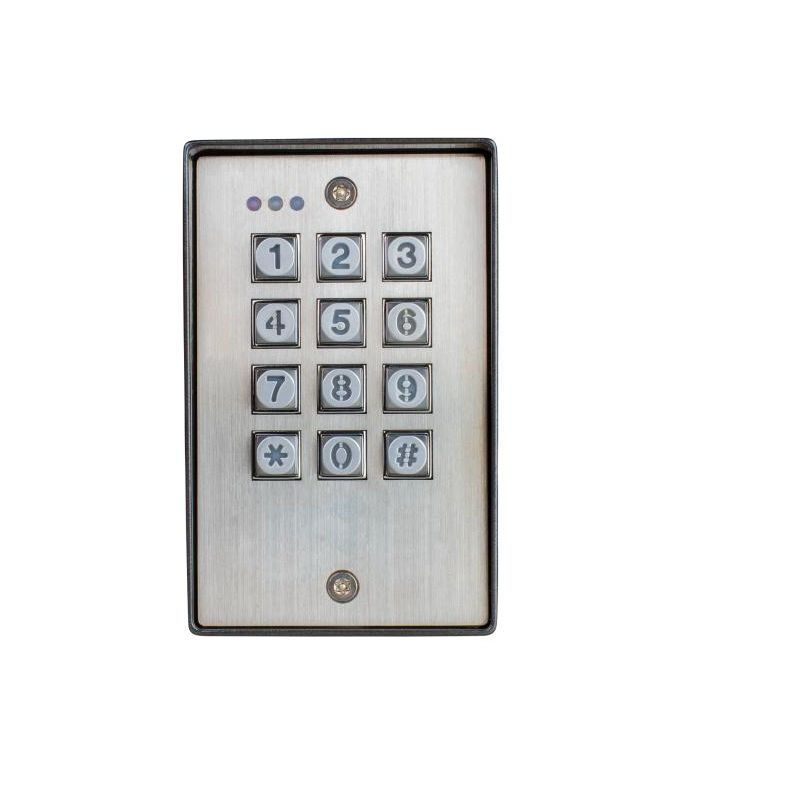

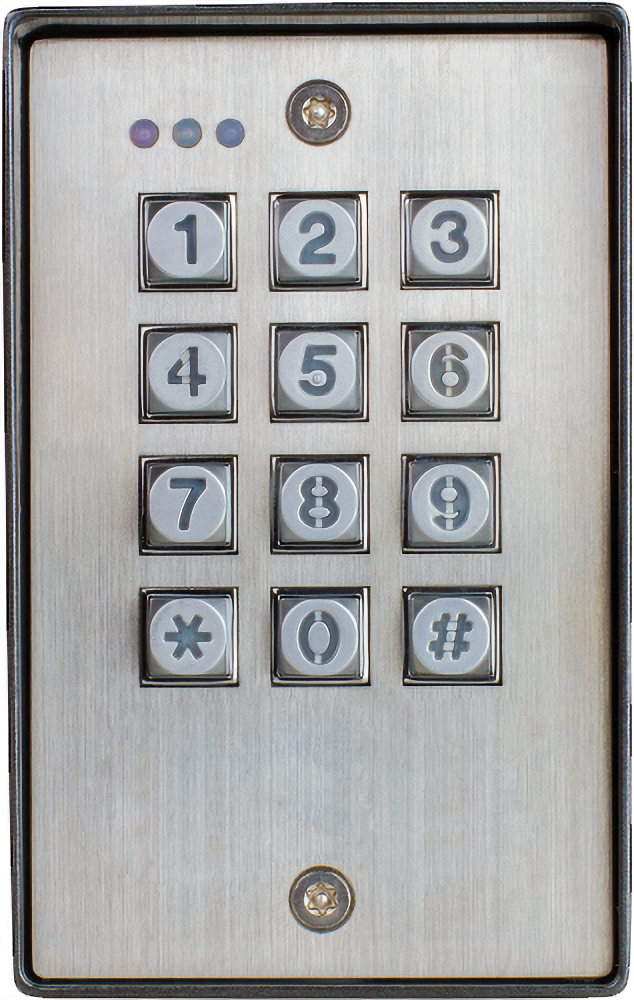

Seco-Larm Weatherproof Surface Mount Digital Keypad - SK-1123-SDQ

<b>Seco-Larm SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users</b> <p>SECO-LARM SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users</p></br> <b>Key Features</b></br><ul> <li>Duress code signals a silent alarm if an authorized user is forced to open the door under duress</li> <li>12~24 VDC/VAC Auto-adjusting operation</li> <li>All features are programmed directly from the keypad: No need for an external programmer</li> <li>Tamper output: N.C. Dry contact, 50mA@24VDC max</li> <li>Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode</li> <li>Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time</li></ul></br> <b>Specifications</b></br><ul> <li>Operating Voltage: 12~24 VDC/VAC</li> <li>Current Draw-Standby: 66mA@12VDC</li> <li>Current Draw-Keypress: 93mA@12VDC</li> <li>Current Draw-1 Relay Active: 99mA@12VDC</li> <li>Current Draw-1 & 2 Relays Active: 126mA@12VDC</li> <li>Current Draw-Total Max: 160mA@12VDC</li> <li>Relay Output-#1: 1A@30VDC, Form C</li> <li>Relay Output-#2: 1A@30VDC, Form C</li> <li>Relay Output-Key Active: 100mA@24VDC</li> <li>Relay Output-Duress: 100mA@24VDC</li> <li>Relay Output-Interlock: 100mA@24VDC</li> <li>Relay Output-Tamper: 50mA@24VDC</li> <li>Egress Inputs: N.O. Ground</li> <li>Door Inhibit Input: N.O. Ground</li> <li>Door Sensor Input: N.C. Ground</li> <li>Operating Temperature: -4°~158°F</li> <li>Operating Humidity: 5~95% Non-condensing</li> <li>Weight: 1-lb, 2-oz</li> <li>Dimensions: 4-15/16”x3-1/8”x2-1/16”</li></ul>
