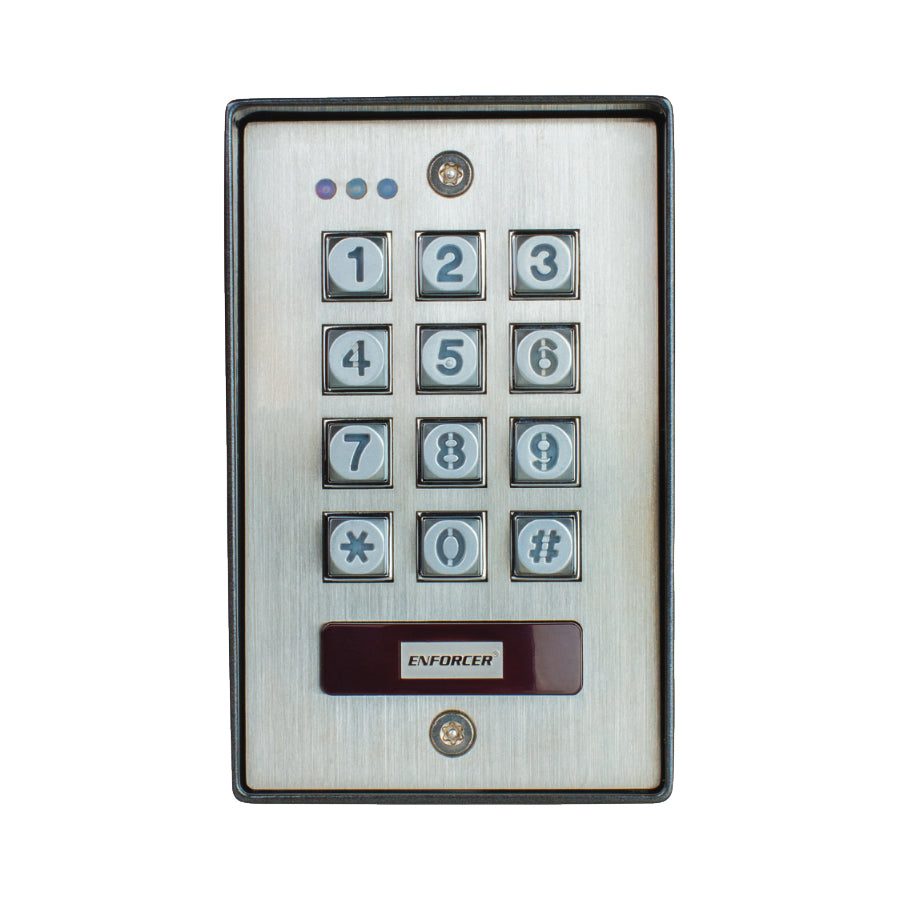

Seco-Larm Surface-Mount Outdoor Illuminated Stand-Alone Keypad With Proximity Reader. Weather Resistant And Vandal Resistant. 1100 Users, Two Outputs, 1224 Vdc/vac Operation. Includes Duress, Quick Code, Wrong-Code Lockout, Smart Egress Input, - SK-1123-SPQ
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 33AK1723 | 1 | 1 | 1 @ $131.45 | |
| affordableopeners.com | SK-1123-SPQ | 1 | -2 | 1 | 1 @ $103.00 |
| SK-1123-SPQ | 1 | -2 | 1 | 1 @ $143.97 | |
| SK-1123-SPQ | 1 | -2 | 1 | 1 @ $109.12 | |
| SLA_SK1123SPQ | 1 | 4 | 1 | 1 @ $164.31 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Seco-Larm SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available Programmable Access Modes for All 3 Outputs
Brand: Seco-Larm
<b>Seco-Larm SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code</b> <p>SECO-LARM SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code</p></br> <b>Key Features</b></br><ul> <li>Super user code gives admin access to keypad</li> <li>All features are programmed directly from the keypad: No need for an external programmer</li> <li>Mounts to a standard single-gang back box (surface-mount back box included)</li> <li>Tamper output: N.C. Dry contact, 50mA@24VDC max</li> <li>Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time</li> <li>EEPROM Memory protects programmed information in case of power loss</li></ul></br> <b>Specifications</b></br><ul> <li>Operating Voltage: 12~24 VDC/VAC</li> <li>Current Draw-Standby: 66mA@12VDC</li> <li>Current Draw-Keypress: 93mA@12VDC</li> <li>Current Draw-1 Relay Active: 99mA@12VDC</li> <li>Current Draw-1 & 2 Relays Active: 126mA@12VDC</li> <li>Current Draw-Total Max: 160mA@12VDC</li> <li>Relay Output-#1: 1A@30VDC, Form C</li> <li>Relay Output-#2: 1A@30VDC, Form C</li> <li>Relay Output-Key Active: 100mA@24VDC</li> <li>Relay Output-Duress: 100mA@24VDC</li> <li>Relay Output-Interlock: 100mA@24VDC</li> <li>Relay Output-Tamper: 50mA@24VDC</li> <li>Egress Inputs: N.O. Ground</li> <li>Door Inhibit Input: N.O. Ground</li> <li>Door Sensor Input: N.C. Ground</li> <li>Operating Temperature: -4°~158°F</li> <li>Operating Humidity: 5~95% Non-condensing</li> <li>Weight: 1-lb, 2-oz</li> <li>Dimensions: 4-15/16”x3-1/8”x2-1/16”</li> <li>Proximity Reader Frequency: 125kHz (EM125)</li> <li>Proximity Reader Distance: 1-1/2” (38mm)</li></ul>
Details
- 1,100 Users over 2 Outputs. Codes may be 4~8 digits: - Output #1 – Form C relay, 1A@30VDC, 1,000 users - Output #2 – Form C relay, 1A@30VDC, 100 users; Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours); Programmable egress input with optional warning alarm and delayed egress
- Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2; Duress code signals a silent alarm if an authorized user is forced to open the door under duress
- Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode; Real-time clock to auto-disable access at specific times
- Door sensor input for anti-tailgating operation, Door-propped-open warning, Door-forced-open warning, Durable and attractive stainless steel faceplate, IP66 Weatherproof Rating
Listing
| Binding | Electronics |
|---|---|
| Product group | Home Improvement |
| Product type | HARDWARE |
| Model | SK-1123-SPQ |
| Part number | SK-1123-SPQ |
| Label | Seco-Larm |
| Manufacturer | Seco-Larm |
